Figure

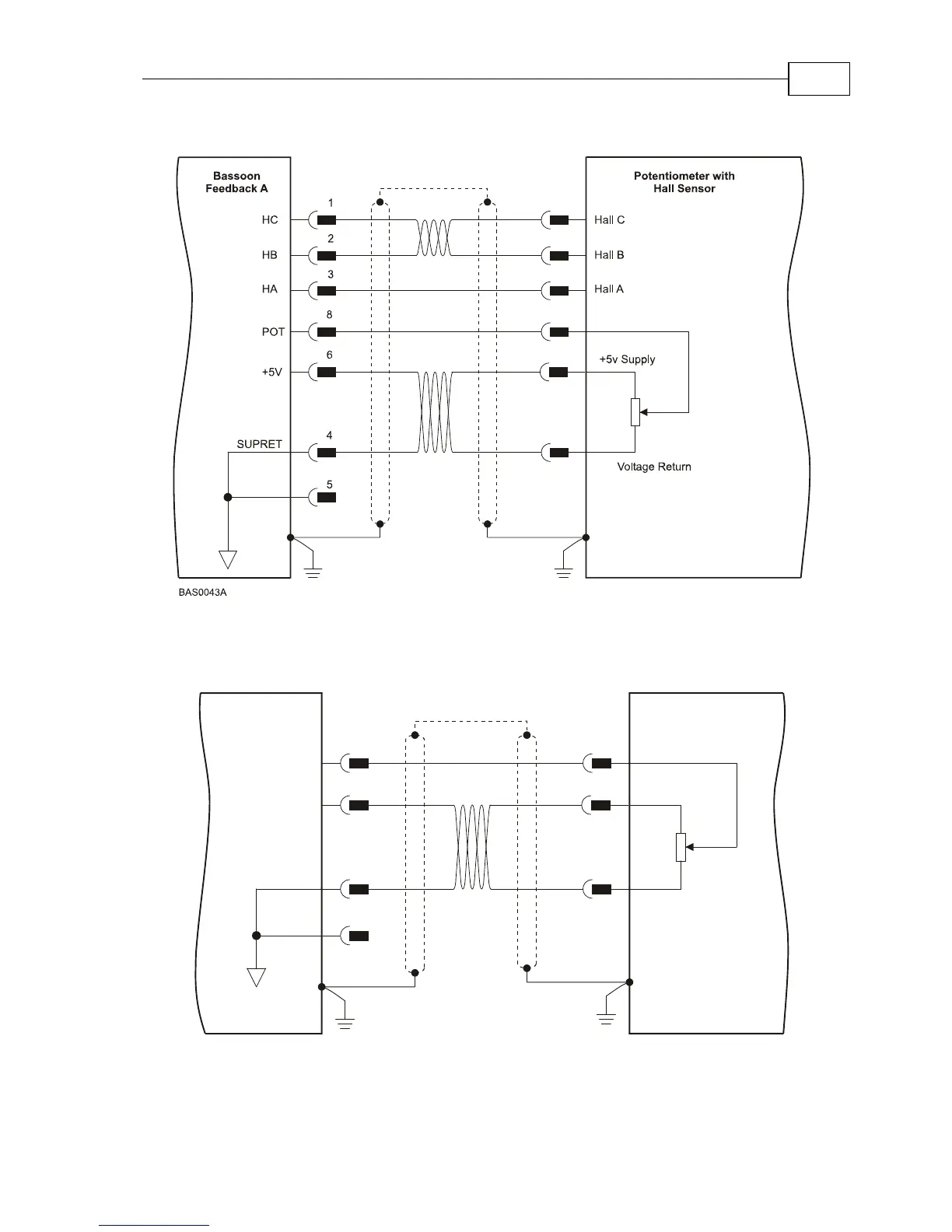

3-15: Main Feedback – Potentiometer Feedback with Digital Hall Sensor Connection
Diagram for Brushless Motors
Bassoon
Feedback A
8
+5v Supply
Voltage Return
4
+5V
SUPRET
BA
S00
44A
6
Potentiometer
POT
5
Figure
3-16: Main Feedback – Potentiometer Feedback Connection Diagram for Brush Motors
and Voice Coils
Bassoon Installation Guide Installation
MAN-BASIG (Ver 1.4)
3-19
