Elmo L-12F - 5 Specifications; General

70
SPECIFICA
TIONS
SPECIFICATIONS
5

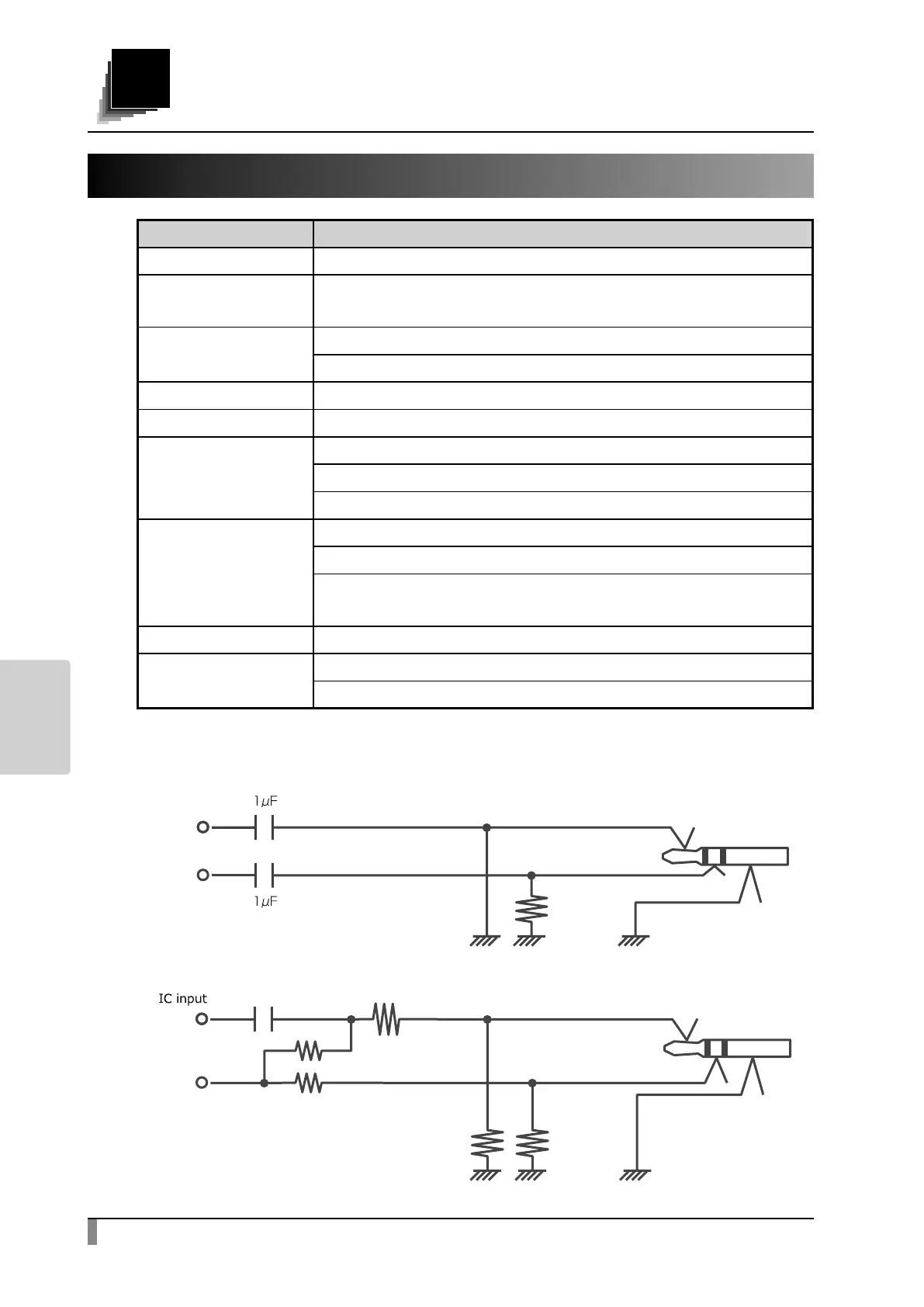

5-1 General
Item Specications
Power source 12VDC (AC adapter AC100 - 240V)
Power
consumption
21W
Outside dimensions
W349 x D377 x H432mm (When setup)
W195 x D294 x H475mm (When folded)
Weight Approx. 3kg (Main body only)
Input selection Main/External (x2)
Output terminal
RGB output Mini Dsub 15P connector, female x 1
HDMI output terminal x 1
Line-out terminal φ 3.5mm stereo minijack x 1
Input terminal
RGB input Mini Dsub 15P connector, female x 1
HDMI input terminal x 1
Mic-in / Line-in terminal
φ 3.5mm stereo minijack x 1
Ext. control terminal USB device (3.0 compliant) Type B receptacle x 1
Memory Interface
SD card slot x 1
USB host (2.0 compliant) Type A receptacle x 1
※ Use pin plug for RCA pin in accordance with EIAJ RC-6703.
・When setting to Line input
0Ω
L
R
,&LQSXW
・When setting to External microphone input
1µF 100Ω
2.3kΩ
2.2kΩ
100KΩ 100KΩ
2.5V
