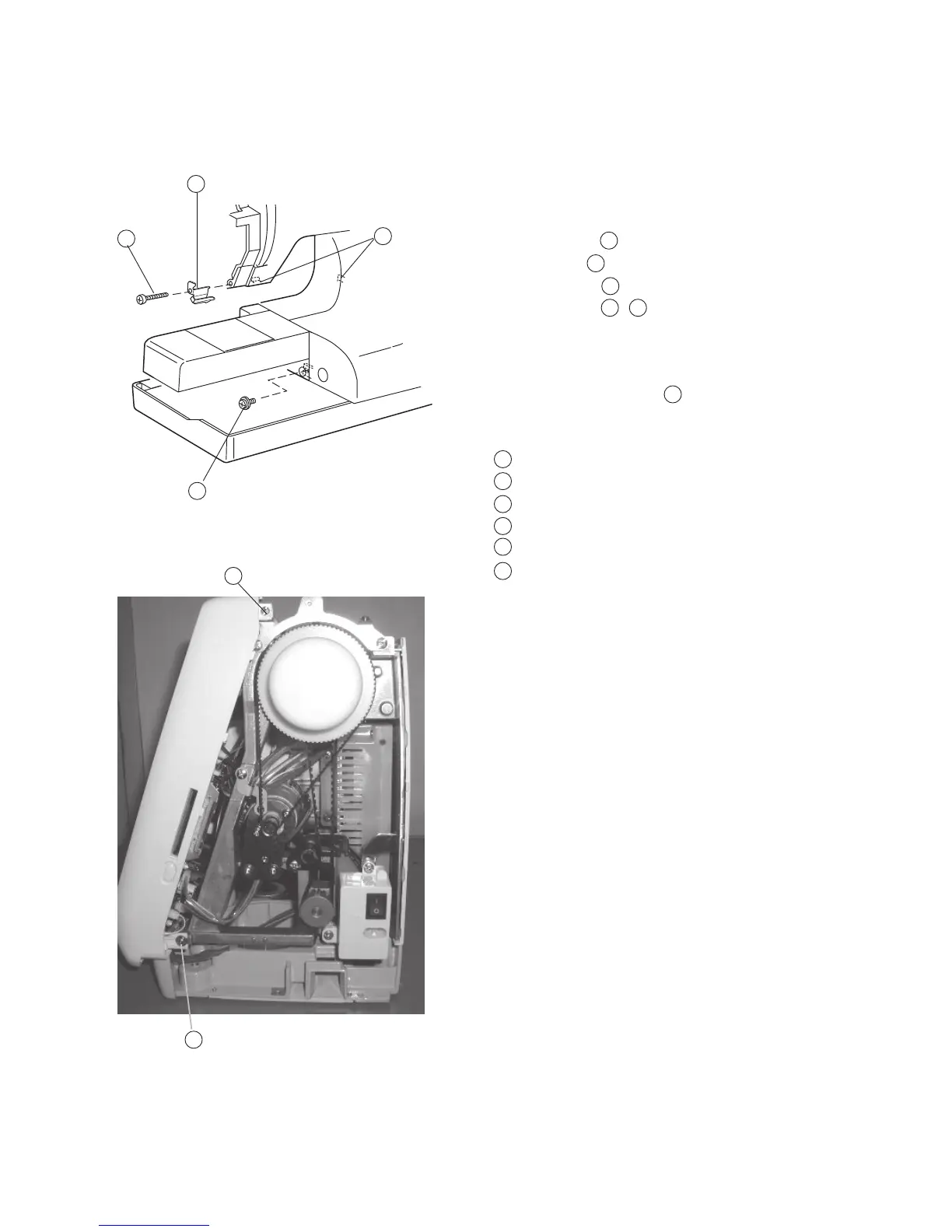

ELNA 8300 - Changing External Parts (6) Front Cover; Removing and Attaching the Front Cover

8
Model 8300
To remove:
1. Remove the face cover, belt cover, base cover and
top cover. (See pages 3-5).
2. Remove Screw and remove the Arm thread
guide (lower) .
3. Remove Screw .
4. Loosen Screws , 3 turns.
5. Disconnect the each connector and remove the front
cover.
Note: Disengage the Hooks to remove the Front
cover.
Screw
Arm thread guide (Lower)
Screw
Screw
Screw
Hooks (2 spots)
To attach:
6. Follow the above procedure in reverse.
Note: See pages 19 (Diagram) for Connectors
Connection.
Changing External Parts (6) Front Cover
Front cover
A
B
C
A
B
C
D E
D
E
H
H
E
B
A
C
D
F
