ELNA 8300 - Adjusting Upper Shaft Release Cam and Clutch Release Arm; Adjusting Release Arm Cam and Clutch Release Arm

29
Model 8300
q
w
e
r
t
y
u
i
!0
o

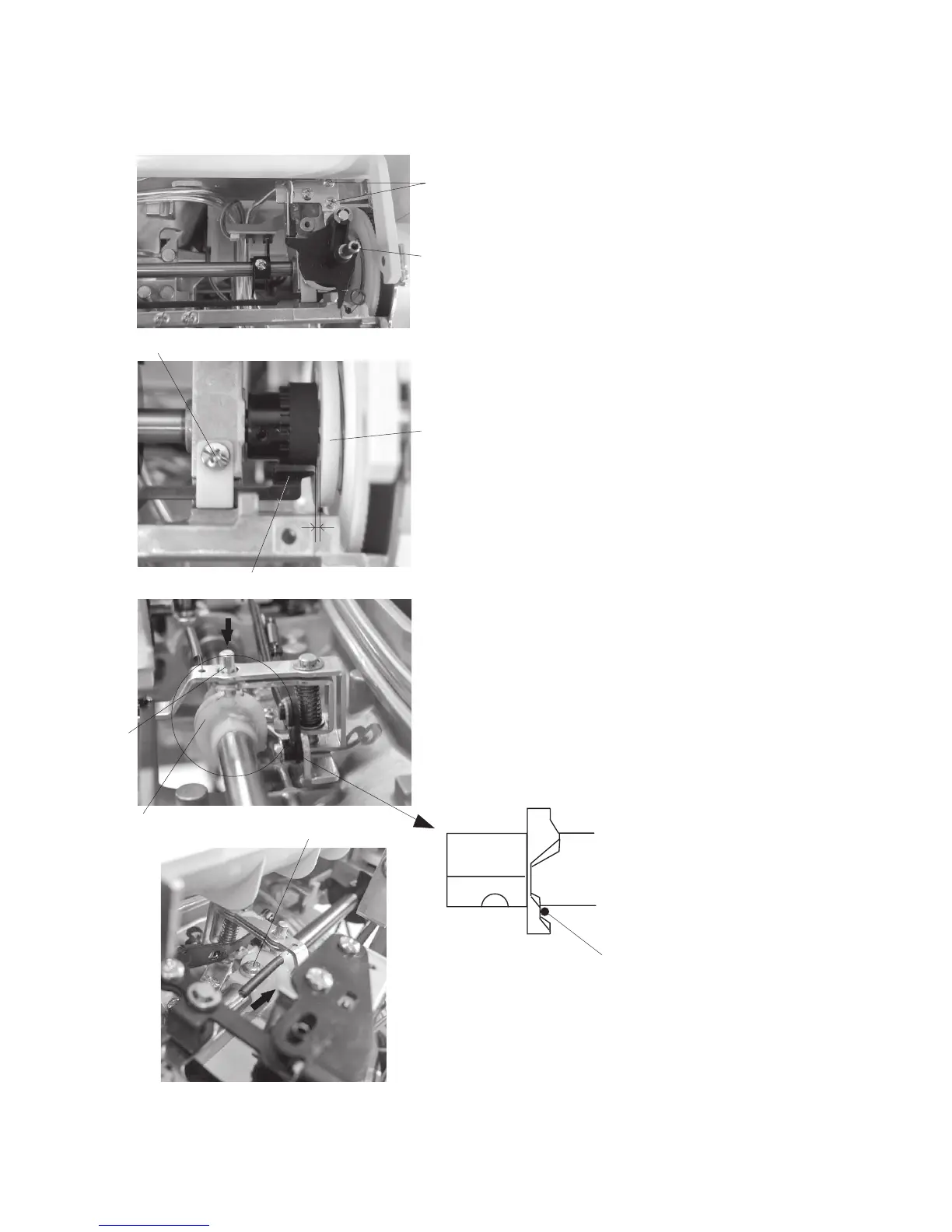

1. Remove the front cover (unit) and the rear cover (unit).
2. Remove screws A q and the bobbin winder (unit) w.
3. Loosen screws B e.
4. Adjust the clearance between the clutch release arm r
and the clutch ring t to 1mm. Tighten the screw B e.
5. Loosen the screw C !0 on the upper shaft cam i.
While pressing the clutch pin u against the point X o
on the upper shaft cam i, tighten the screw C !0.
6. Attach the bobbin winder (unit) w, then tighten
setscrew A q.
7. Attach the front cover (unit) and the rear cover.
q Screw A
w Bobbin winder (unit)
e Screw B
r Clutch release arm
t Clutch ring
y Gap (1 mm)
u Clutch pin
i Upper shaft cam
o Point X
!0 Screw C
Adjusting Upper shaft release arm cam and Clutch release arm
