ELNA 8300 - Adjusting X and Y Sensors

38
Model 8300

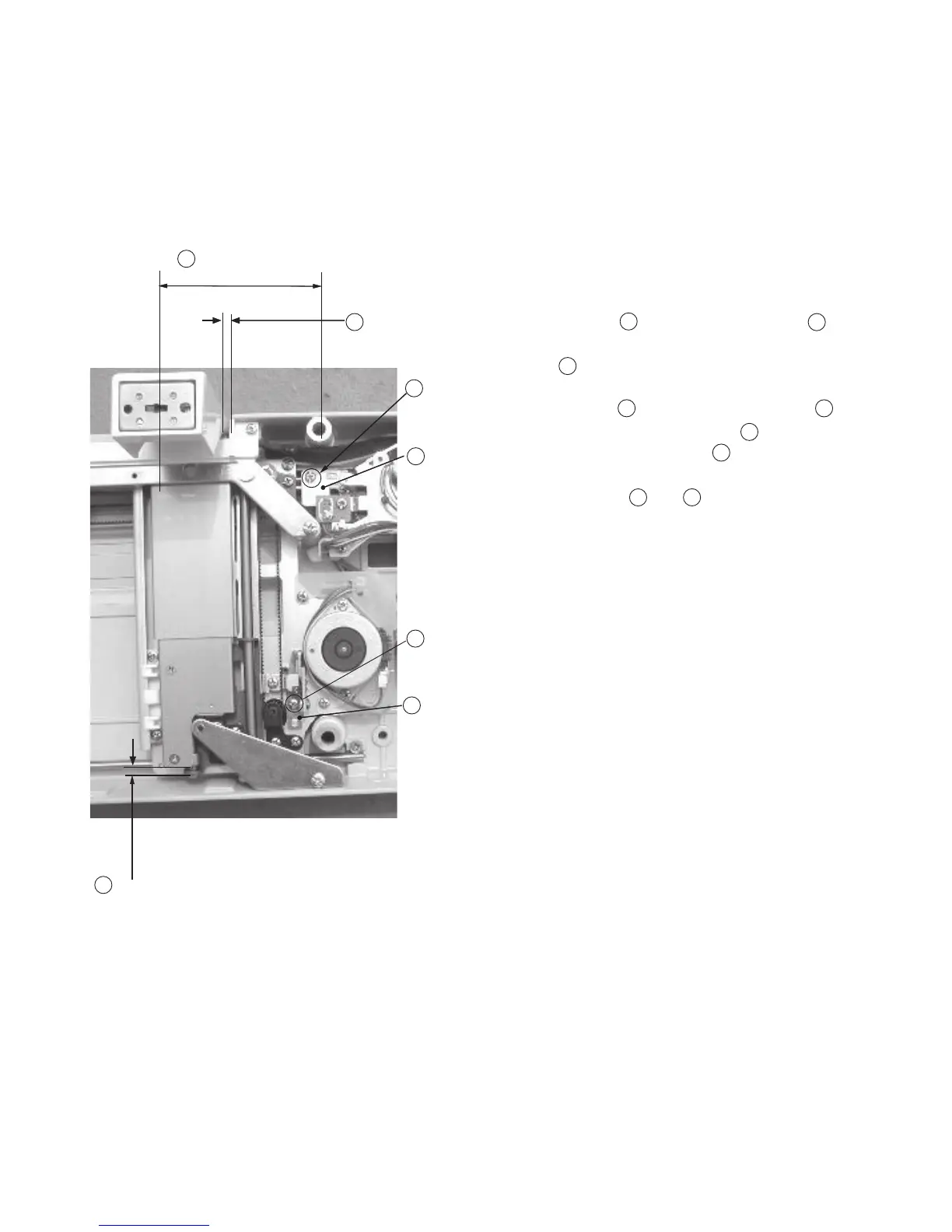

Adjusting X and Y Sensors
(X-1)
69.0 mm
(X-2) 2.5 mm
“Y” = 2.5 mm
1. Turn the power “ON” to return the carriage to
the home position.
2. Turn the power “OFF” and then remove the base
unit.
3. Loosen Screw and adjust dimension “Y” to
2.5 mm by moving the Y Sensor attaching
plate .
4. Loosen Screw to adjust Dimension “X-1”
to 69.0 mm and Dimension “X-2” to 2.5 mm
by moving the X Shield plate .
5. Tighten Screws and .
6. Attach the base.
To adjust X and Y sensors:
A
B
C
D
E
F
G
A
D
D
G
A
C
F
E
B
