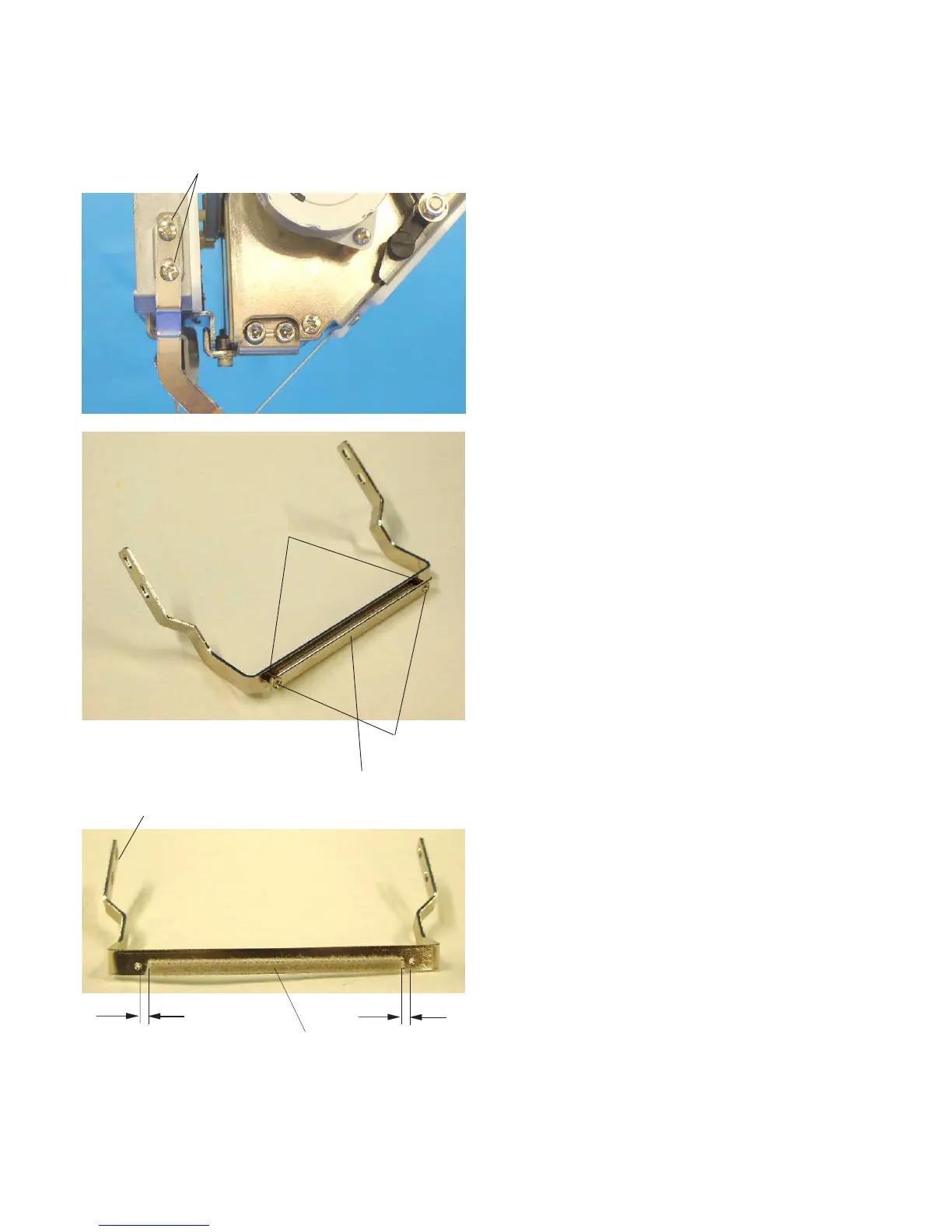

Replacing the Thread Catcher Loop Tape
1. Remove the static head cover (right) (see page 5).
2. Remove the thread catcher panel and lower thread
guide plate (see pages 18 and 19).
3. Remove the 4 setscrews (A) and remove the thread
catcher holder unit.
4. Remove the 2 setscrews (B) and remove the 2 spacers
(S) and lower thread catcher holder.
5. Peel the loop tape off. Stick a new loop tape on the
bottom side of the thread catcher holder, aligning with
the front edge of the holder. Leave a 2 mm space from
the threaded hole at each side.
6. Attach the 2 spacers (S) and lower thread catcher
holder with the 2 setscrews (B).
7. Attach the parts removed in steps 1 and 2.
Setscrews (A)
Spacers (S)
Setscrews (B)
Lower thread catcher holder
Upper thread catcher holder
Loop tape
