elna 9900
Replacing the Y-carriage Belt
1. Remove the spool stand, static head right cover, right
cover and left cover (see pages 4 – 6).
2. Remove the 2 setscrews (B) and the Y-belt holder.
3. Loosen the 2 setscrews (A) and shift the Y-belt pulley
in the direction of the arrow.
4. Remove the E-ring and pull the Y-belt pulley shaft to
remove the Y-belt pulley.
5. Replace the Y-carriage belt.
6. Attach the parts removed in steps 2 – 5.
7. Adjust the Y-carriage belt tension (see the previous
page).
8. Attach the parts removed in step 1.

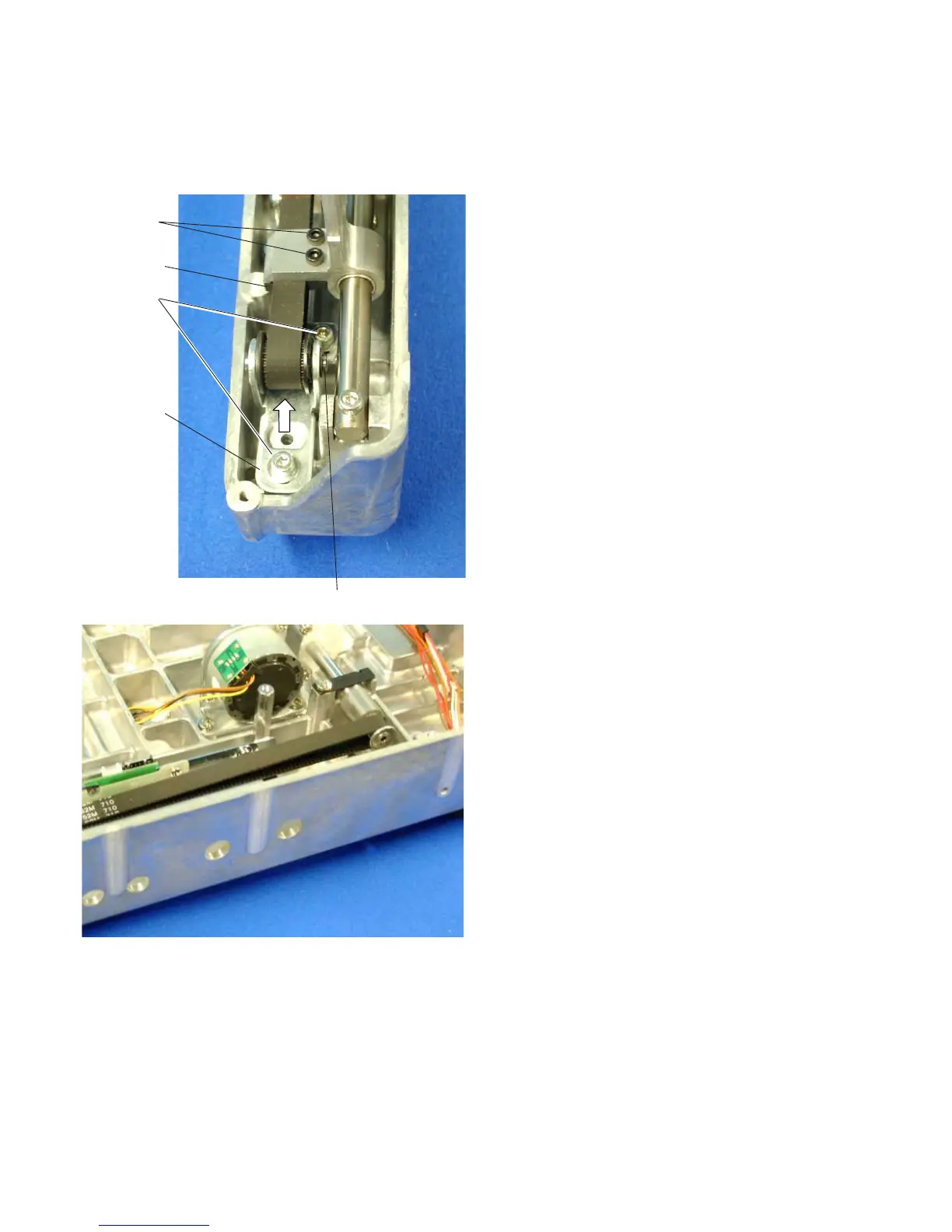

Setscrews (B)
Y-belt holder
Setscrews (A)
E-ring
Y-belt pulley shaft
Y-belt pulley
