elna 9900
55
Master template
C
C-1
C-2
Needle

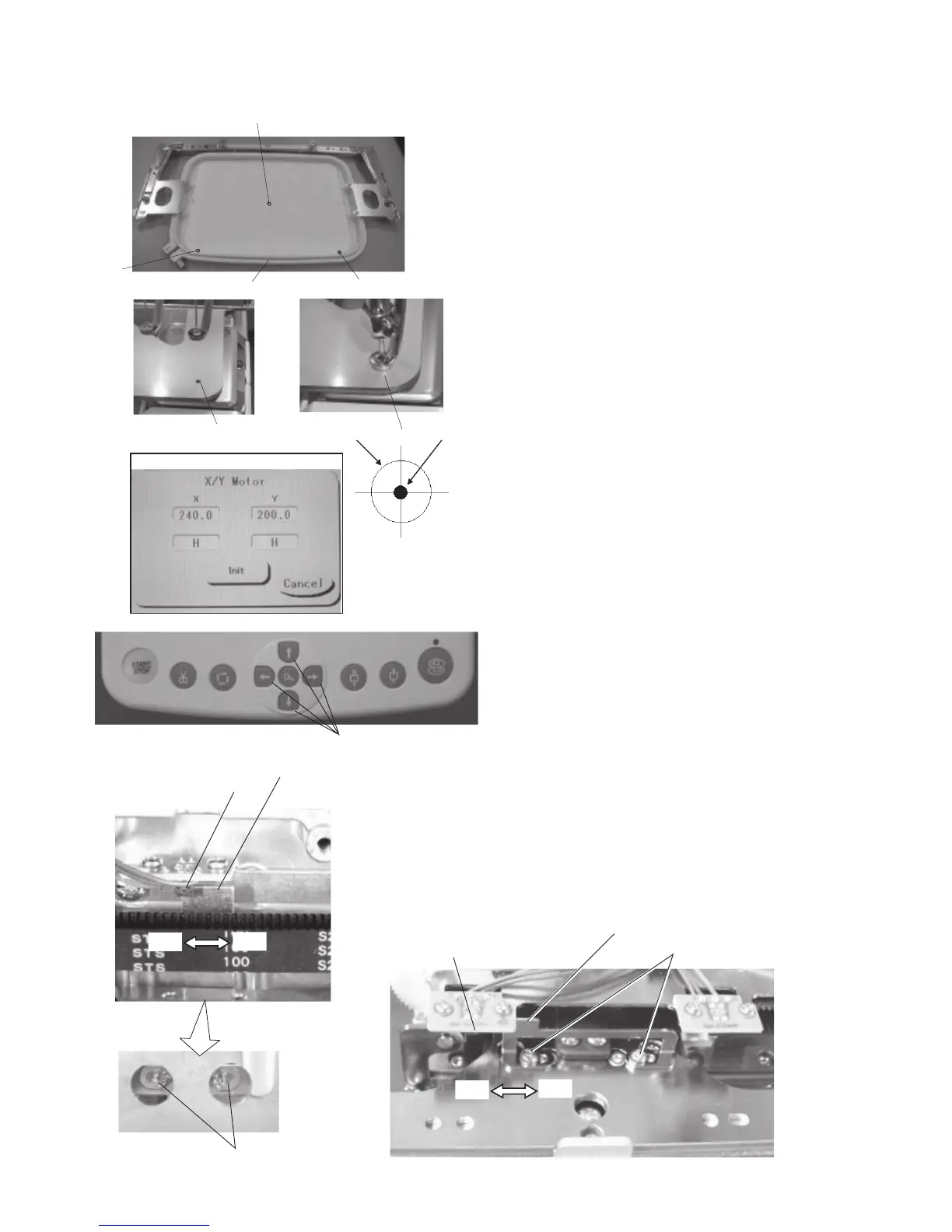

1. Remove the spool stand, right cover, left cover, base
cover and X-carriage cover (see pages 4 – 7).
2. Place the master template in the embroidary hoop.
3. Open the factory adjusting menu window and press
the X/Y Motor key to open the X/Y Motor adjusting
window.
4. Lower the needle bar. Adjust the y-carriage sensor
plate so the needle is positioned the center of the hole C.
5. Loosen the two setscrews (A) slightly.
Move the Y-carriage sensor plate slowly to the front
until the indication under Y changes from “H” to “L”.
Tighten the two setscrews (A).
6. Loosen the two setscrews (B) slightly.
Move the X-carriage sensor plate slowly to the left
until the indication under X changes from “H” to “L”.
Tighten the two setscrews (B).
NOTE:
The sensors should not interfere with the carriage.
7. Press “Init” key to initiallize the carriage position.
Check if the needle drop position is the center of the
hole.
8 Press the jog key. Position the hole C-1 to the needle
drop position. (X=0 : Y=200). Check if the needle
drop position is the center of the hole C-1.
* if the hole C-1 is not centered, adjust the connecting
plate to center the position.
Press the home position key. Position the hole C-2 to
the needle drop position (X=120 : Y=100).
The needle drop position should be the center of the
hole C-2.
9 Attach the removed parts.
Adjusting the Carriage Home Position (1)
C
C
Y-carriage sensor plate
Y-carriage sensor
Jog buttons
Setscrews (A)
X-carriage sensor plate
X-carriage sensor
Setscrews (B)
Front
Back
Left
Right
