Maintenan
ce
51
Fig.
24
:

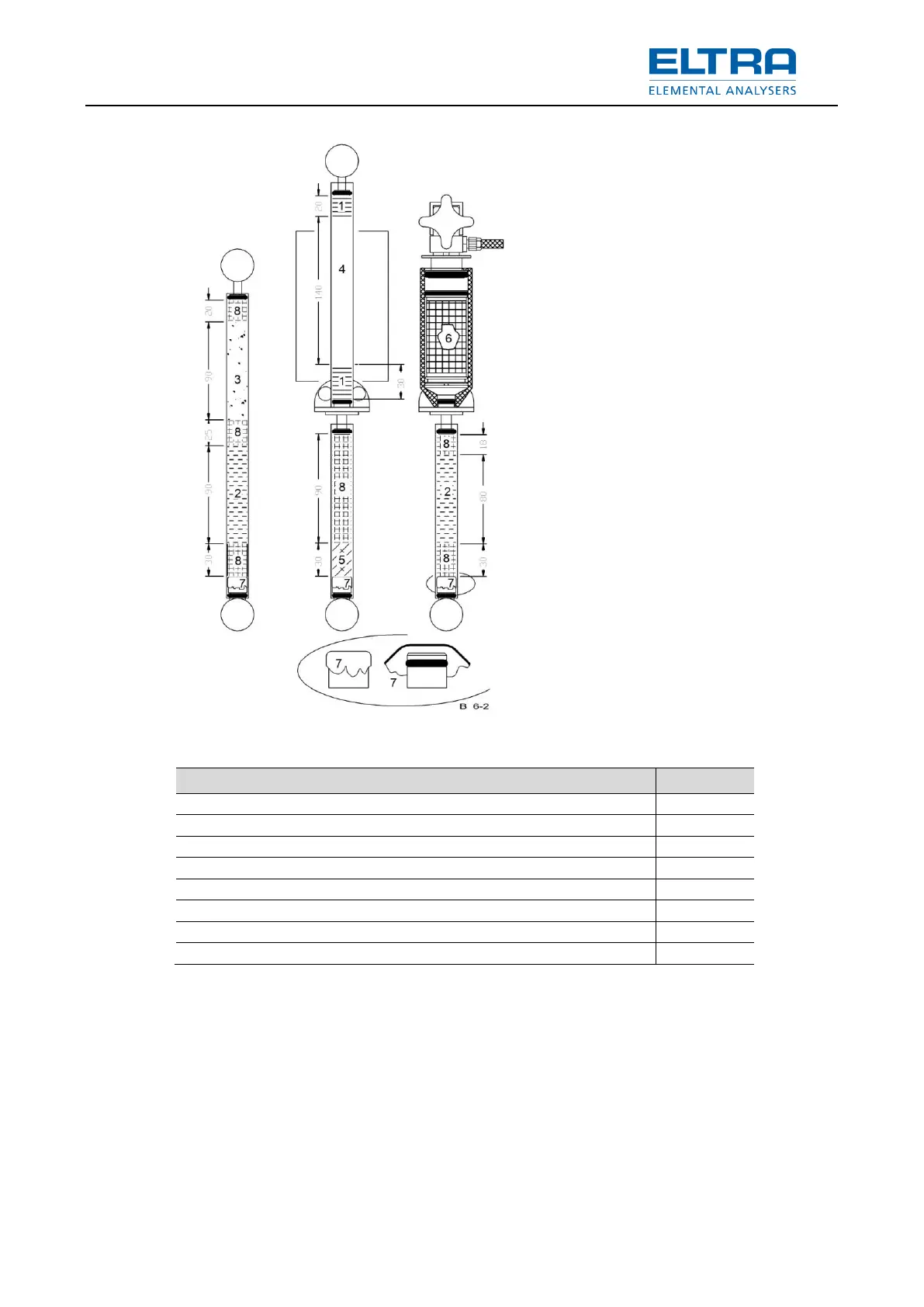

Glass tubes Sch
em
atics
Keep a tolerance of
about ± 20 % of
the filling lengths of
the drawing.
Material
Part No.
1.
Quart
z wool
90330
2.
Anh
ydrone
90200
3.
Sodium
hydroxide
90210
4.
Copper ox
ide
90290
5.
Cotton
wool
90340
6.
Metal filter
11105
7.
Paper f
ilter
11185
8.
Glass woo
l
90331
50
