Miscellaneous
89
8.1.5

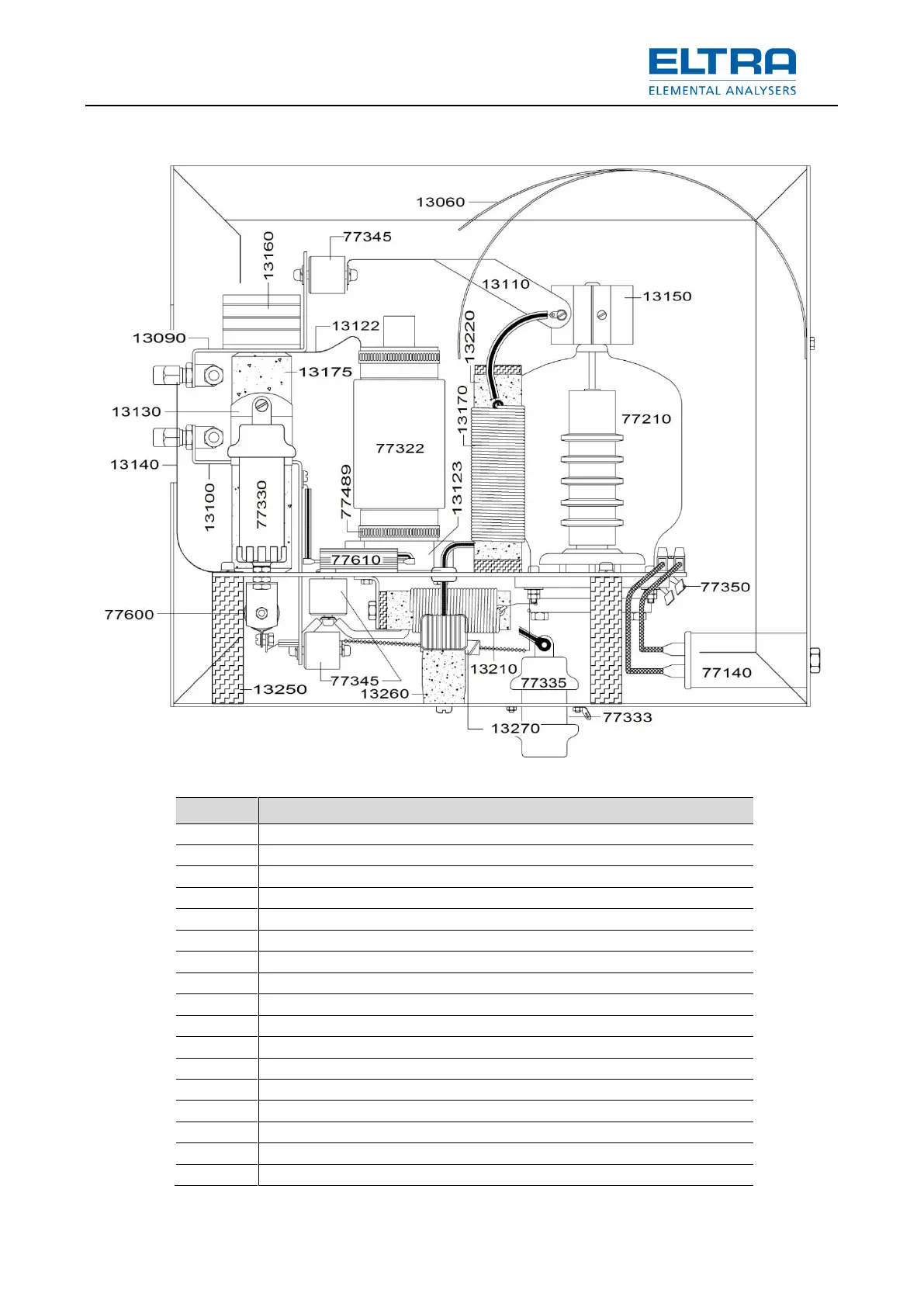

Oscillating circuit
Fig.
59
: Oscillating circuit
Part No.
Description
13060
Protection sheet
13081
Capacitor support
13090
Upper coil connector
13100
Lower coil connector
13110
Anode connector
13122
Capacitor connector
13130
Capacitor connector
13140
Ground connector
13150
Anode heat sink
13160
Coil heat sink
13170
Radiation shield
13175
Insulator
13210
Grid choke
13220
Anode chok
e
13250
Chassis support
13260
High voltage filter
13270
Resistor
88
90
