Miscellaneous
95
8.1.9

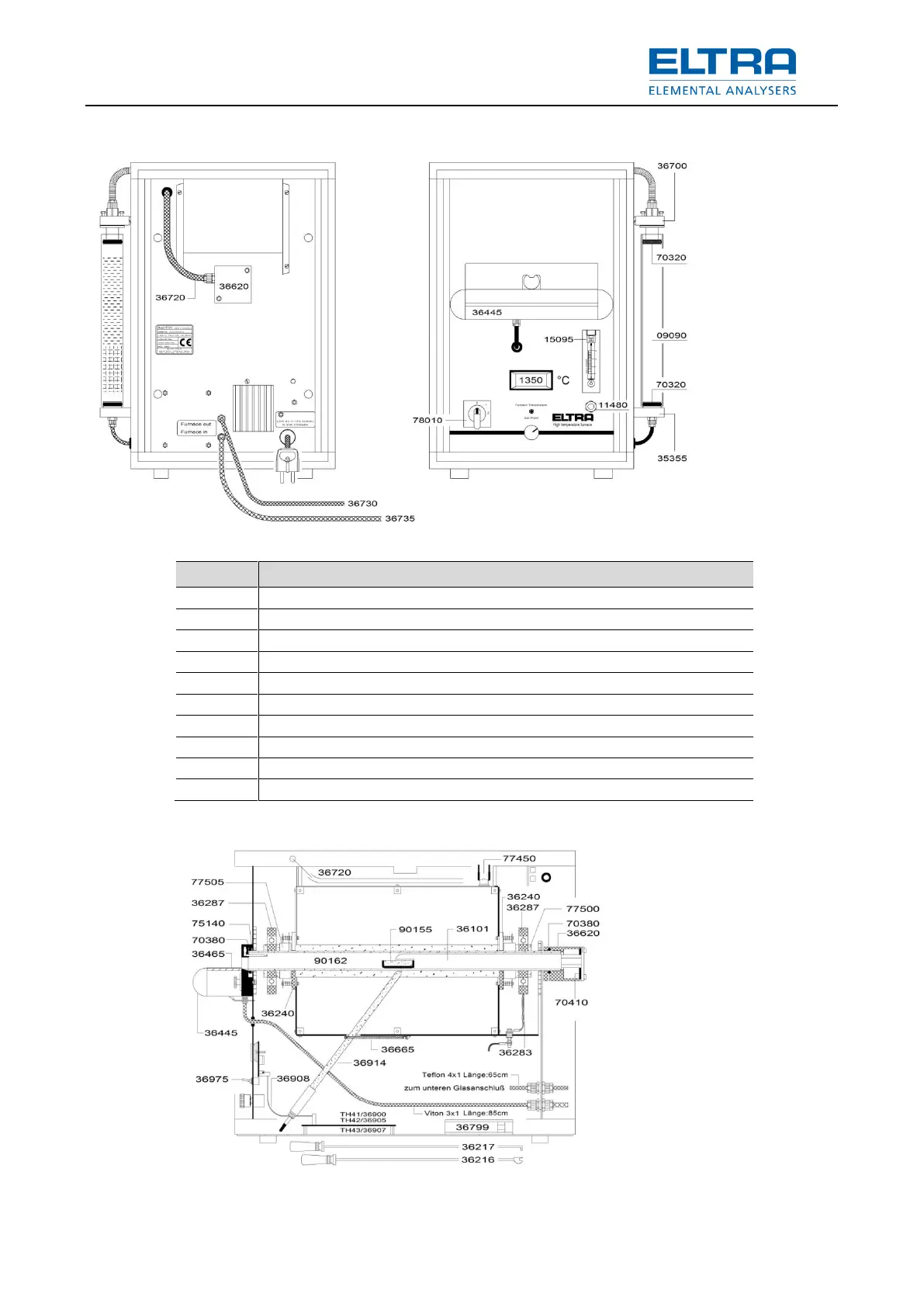

Front side and rear sid
e
Fig.
63
: Front side and rear side
Part No.
Description
09090
Reagent tube
11480
Adjustable restrictor
15095
Flow displa
y 600l/h
35355
Lower reagent tube co
nnector
36445
Platform
36700
Upper reagent tube co
nnector
36730
W
hite tube
36735
Black tube
70320
O-ring
78010
Mains power switch
8.1.10
Restistance furnac
e details
Fig.
64
: Resistance furnace d
etails
94
96
Table of Contents
Table of Contents
3
Contact Information
6
Notes on the Manual
6
Explanations of the Safety Instructions
7
General Safety Instructions
9
Explanation of Signs and Symbols
10
Packaging, Transport and Installation
11
Packaging
11
Transport
11
Intended Use
11
Conditions for the Installation Site
11
Type Plate Description
13
Installation
14
Setting Check up
14
Front Panel Illustration
15
Mains Power Connections
17
Data Interface
18
Gas Connections
19
Resistance Furnace-Temperature Adjustment
20
Gas Purification Furnance Connecting (Optional)
21
Autoloader (Optional)
22
Analysis
23
Working Procedure
23
Resistance Furnace
24
Induction Furnace
26
Analysis Example
27
Combustion Peak
27
Combustion Double Peak
27
Work Breaks
28
Crucibles Preheating
28
Operating the Pre-Heating Furnace (Optional)
29
TIC-Determination (Optional)
30
TIC-Module
30
TIC Analysis
30
TIC-Module Operation Procedure
32
Applications
33
Induction Furnace
33
Resistance Furnace
37
Coal Analysis
37
Oil, Plastics, Asphalt and Rubber Analysis
37
Ash Analysis
38
Graphite Analysis
39
Calcium Carbonate Analysis
39
Limestone Analysis
39
Cement Analysis
39
Gypsum and Desulfurization Products (from Power Plants) Analysis
39
Low Carbon Analysis
39
Maintenance
43
General Information
43
Resistance Furnace Operation
43
Induction Furnace Operation
43
Reagent Tubes - Removing and Installing
44
Reagent Tubes Filling
47
Chemicals
47
Reagent Tube Filling-Induction Furnace
49
Reagent Tube Filling-Resistance Furnace
52
Oxygen Purification Furnace Quartz Tube Filling (Optional)
54
Halogen Trap Filling (Optional)
55
Paper Filter Changing
57
Dust Filter Cartridge Replacing
57
O-Rings Replacement
58
Replacing the O-Rings 11 and 12 for Combustion Tube
60
Replacing the O-Ring 13 for Lower Furnace Lock
60
Replacing the O-Rings for Furnace Seal
61
Furnace Cleaning Brush - Replacing
64
Dust Trap Cleaning
65
Dust Trap Cleaning-Induction Furnace
65
Dust Trap Cleaning-Resistance Furnace
68
Combustion Tube Replacement
69
Induction Furnace
70
Resistance Furnace
72
Generator Tube Replacing
74
Combustion Coil Replacing
74
Pedestal Removing
74
Heating Elements Replacing
75
Gas Leaks Checking
76
Leaks in the Furnace Inlet System
77
Leaks in the Furnace
77
Leaks in the Furnace Outlet System
77
Function Description
78
System Overview
78
Measuring Principle
78
Gas Flow System
79
Infrared Cell
81
Furnace
82
Induction Furnace
82
Resistance Furnace
83
Miscellaneous
85
Ordering Numbers
85
Front Side
85
Left Hand Side
86
Right Side
87
Pneumatics
88
Oscillating Circuit
89
Furnace
91
Furnace Cleaning Mechanism
93
Gas Purification Furnace
94
Front Side and Rear Side
95
Restistance Furnace Details
95
Furnace Tube Cleaning
97
Tic-Module
98
Packing
100
Pre-Installation Guide
103
Approved Methodologies to Which Eltra Instruments Conform
105
Inorganic Materials (Metals)
105
Organic Materials (Oil, Coal, Foodstuffs)
106
Disposal
106
Index
108
