When you turn on the device after reinstalling, the set setpoint value is driven immediately.
Please check it, see chapter 4.6: Resistance Furnace-Temperature adjustment.
6.10 Generator tube replacing
For the replacement of the generator tube a separate manual is available.
Please contact the service, see Chapter 1, contact information.
6.11 Combustion coil replacing
For the replacement of the combustion coil a separate manual is available.
Please contact the service, see Chapter 1, contact information.

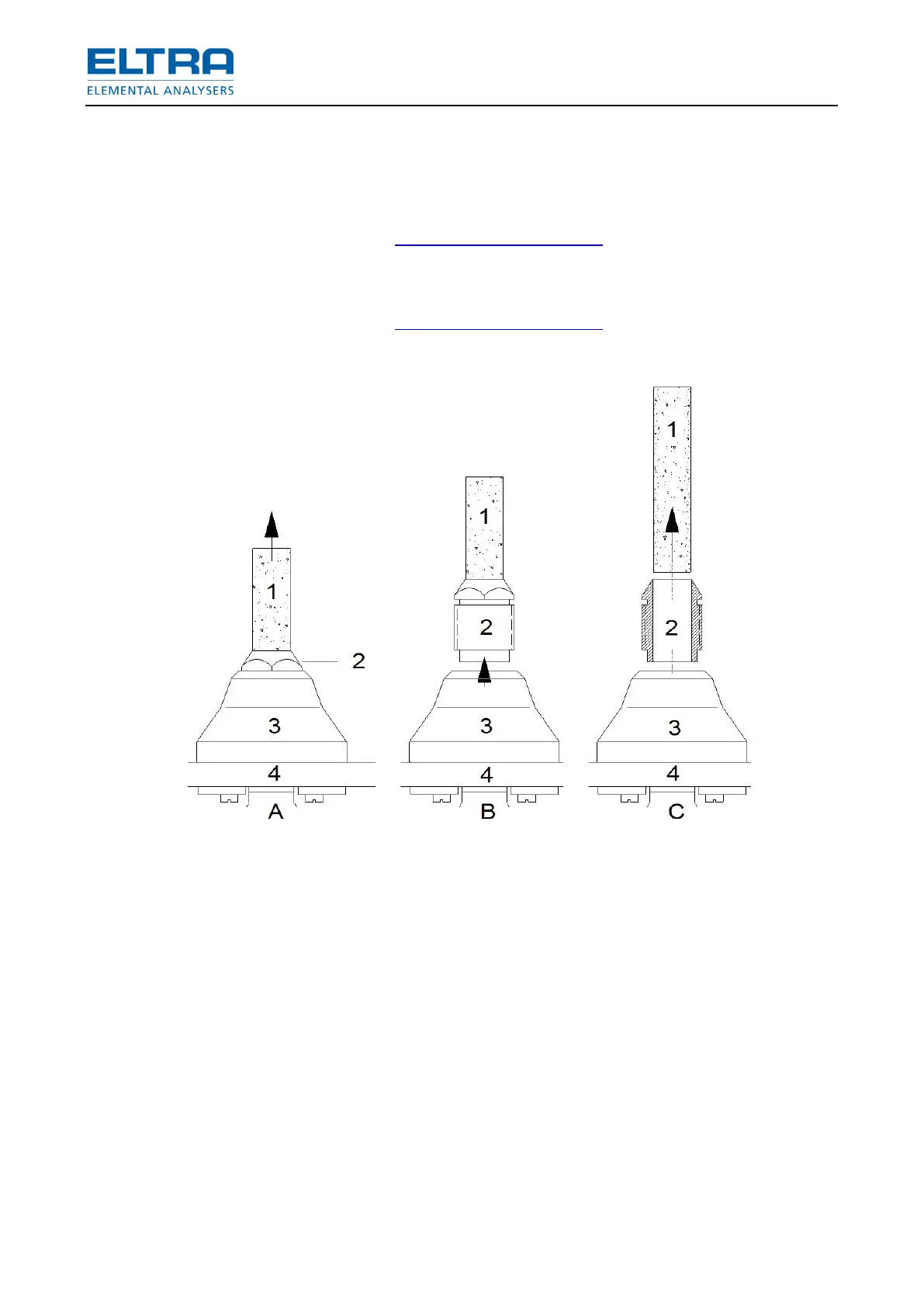

6.12 Pedestal removing
: Pedestal removing
A: Remove the pedestal (1) from the furnace closing cone by lifting.
B: If the pedestal cannot be easily lifted, unscrew with a 24 mm wrench the nut (2) from the
cone (3).
C: This will give access to the bottom off the pedestal allowing its removal. When fitting the
nut (2) to the cone (3), ensure there is no dust in the threads of the two parts. A vacuum
cleaner can be used to clean the threads prior to reassembling
