Maintenance
52

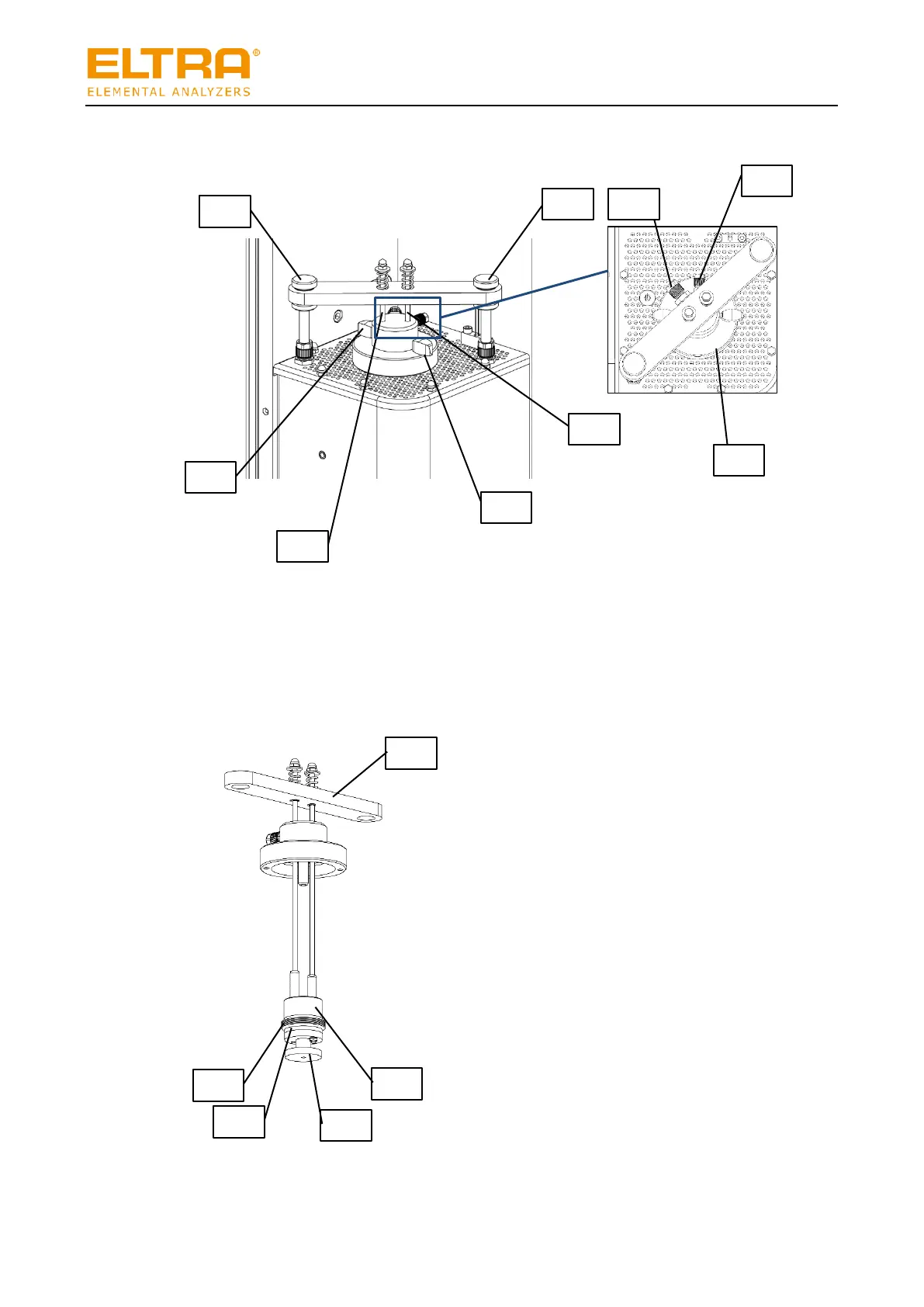

The following diagram shows the mounting plate of the furnace cleaning system:
Fig. 15: Furnace cleaning system mounting plate
6. Remove the knurled nuts (6) and (13).
7. Unscrew the wing nuts (8) and (12).
8. Unscrew the gas connectors (5) and (9) (also see detailed image) and remove the gas
hoses.
The following image shows the removed furnace cleaning system:
Fig. 16: Removed furnace cleaning system
12
13
6
10
7
8
5
9
11
15
14
17
18
16
