EMAK EF 95 Workshop Manual

Workshop manual
27

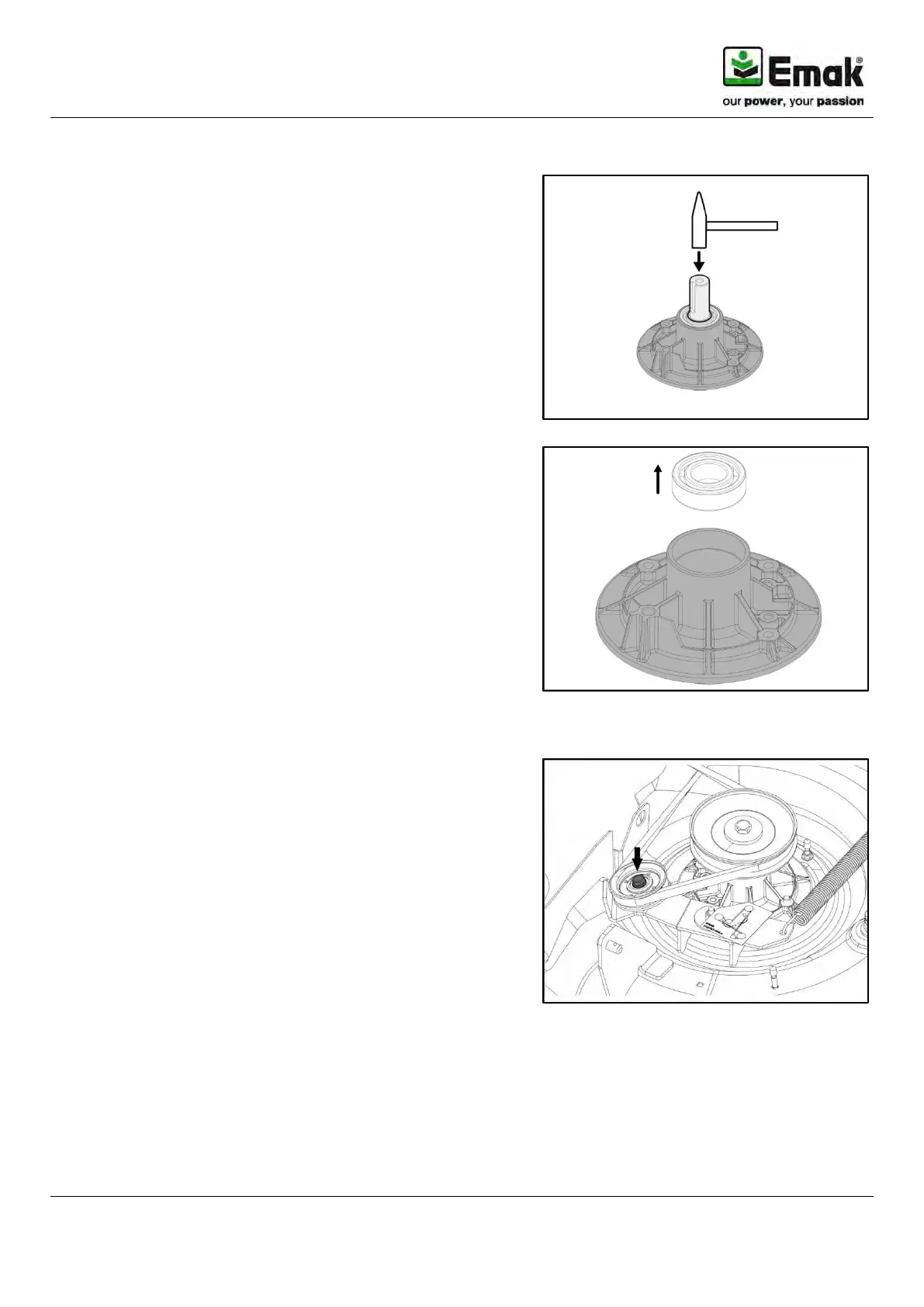

 Using a rubber mallet, drive the shaft and the bottom
bearing out of the bearing block.
 Remove the top bearing from the bearing block.
 Assemble in the reverse sequence.
Tightening torque: 65 Nm
4.3.5 Replacing the tensioning pulley
 Disassemble the mowing implement. (See 4.3.1
Disassembling the mowing implement).
 Disassemble the V-belt cover (see 4.3.3 Replacing
V-belt mowing implement).
 Relieve the tensioning pulley so that the V-belt can be
removed from the tensioning pulley.
 Unscrew the hexagon nut (13 mm) and remove it
together with the washer.
 The tensioning pulley can be removed
 Assemble in the reverse sequence.
Tightening torque: 20 Nm
