EMAK EF 95 - Removing the Propulsion Belt

Workshop manual
31

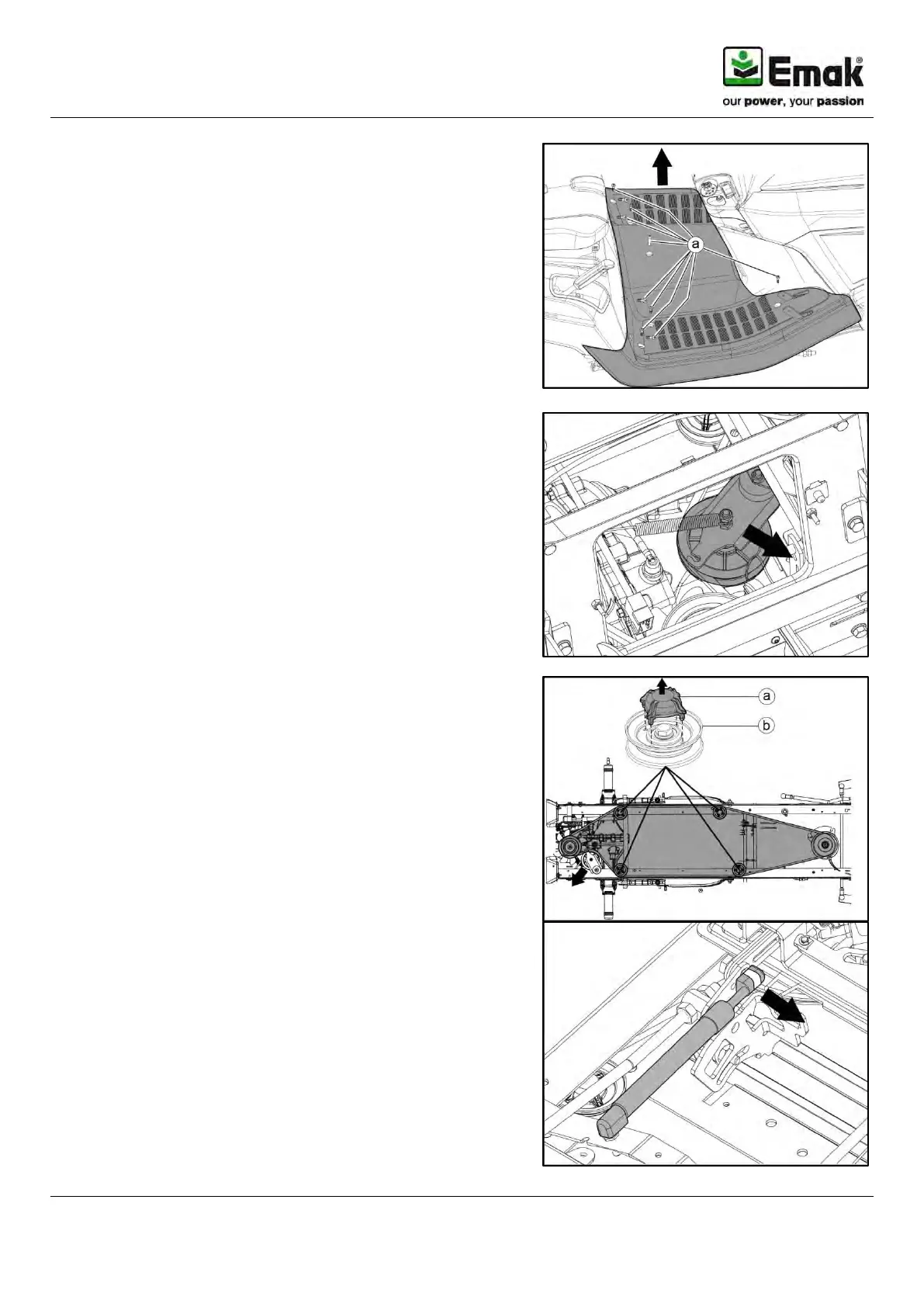

 Release all 11 screws of the vehicle frame floor cover.
– 3 screws in the right foot area
– 3 screws in the left foot area
– 1 screw in the middle of the floor cover
– 4 screws in the area of the wheelhouse cover
 Remove the floor cover of the vehicle frame.
4.5.2 Removing the propulsion belt with 23-in chassis
 Detach the spring of the tensioning pulley to relieve the
propulsion V-belt.
 Remove the covers (a) of the idler pulleys (b).
 Release the hexagon head screw of the idler pulleys (b)
until you can remove the V-belt.
 Lift off the safety element at the head of the accelerator
pedal damper and pull the head of the accelerator
pedal damper off the linkage.
