Workshop manual
29

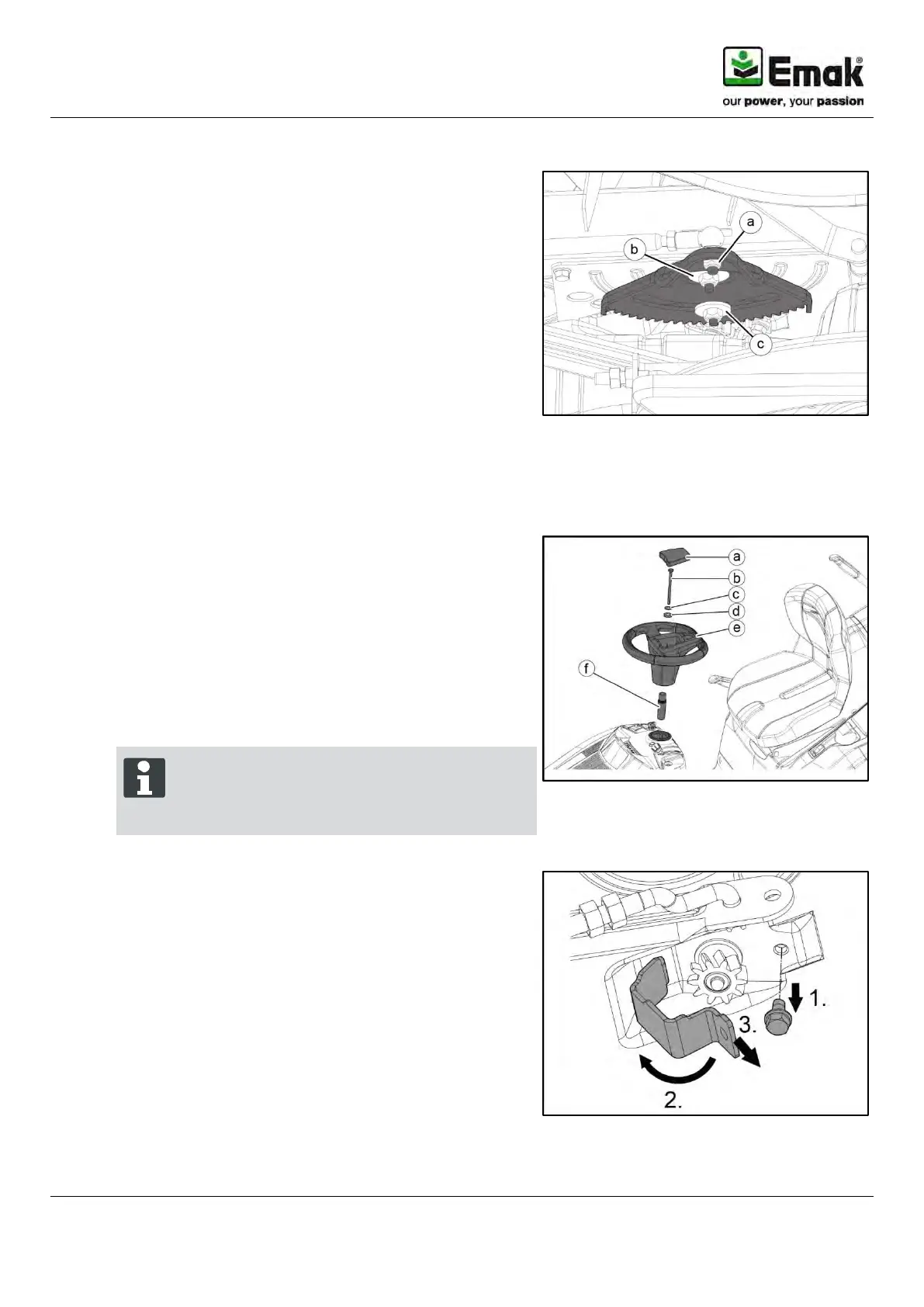

4.4 Steering
4.4.1 Disassembling the steering sector
 Release the hexagon nut of the tie rod attachment (a).
 Release the hexagon nut of the steering sector guide
(b).
 Release the hexagon nut of the steering sector axle and
remove the steering sector (c).
 Assemble in the reverse sequence.
Tightening torque:
(a) = 45 Nm
(b) = 65 Nm
(c) = 45 Nm
4.4.2 Disassembling the steering column
Disassembling the steering wheel
 To remove the cover (a) of the steering wheel, unclip
the hooks at the underside with a suitable tool
(screwdriver), and press them upwards.
 Release the hexagon head screw (b) and remove it
together with the cup spring (c) and the washer (d).
 Pull the steering wheel (e) off the split sleeve (f).
Remove the split sleeve (f).
 Assemble in the reverse sequence.
Use a torque spanner to tighten the hexagon head
screw (b).
Tightening torque: 20 Nm
Removing the steering column
The steering column is removed from the bottom.
Precondition: Steering wheel is removed.
 Release the hexagon head screw.
 Swing off the steering column support.
