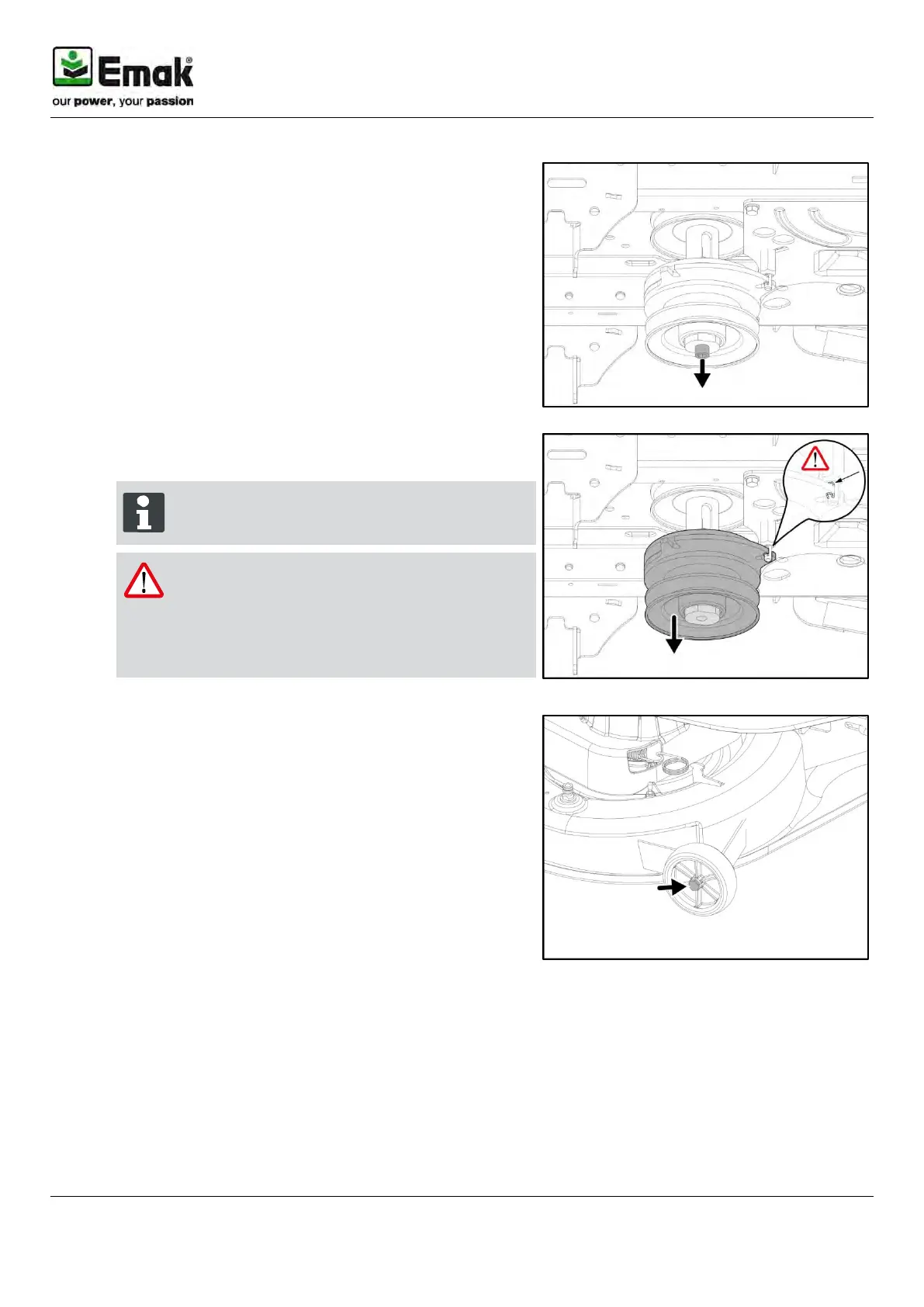

4.3.6 Disassembling the blade brake clutch
The blade brake clutch sits underneath the engine.
 Disassemble the mowing implement. (See
Disassembling the mowing implement)
 Disconnect the connector from the blade brake clutch.
 Release the hexagon socket screw 8 mm or 3/8 in.) and
remove it.
 Pull the blade brake clutch off the drive shaft.
 Assemble in the reverse sequence.
Ensure during assembly that the spring is
installed in the groove of the clutch.
CAUTION!
Apply thread lock on the fastening screw of the
blade brake clutch.
Tightening torque: 70 Nm
4.3.7 Replacing the mowing implement feeler rollers
 Release the hexagon head screw and remove the
feeler roller.
