Workshop manual
48

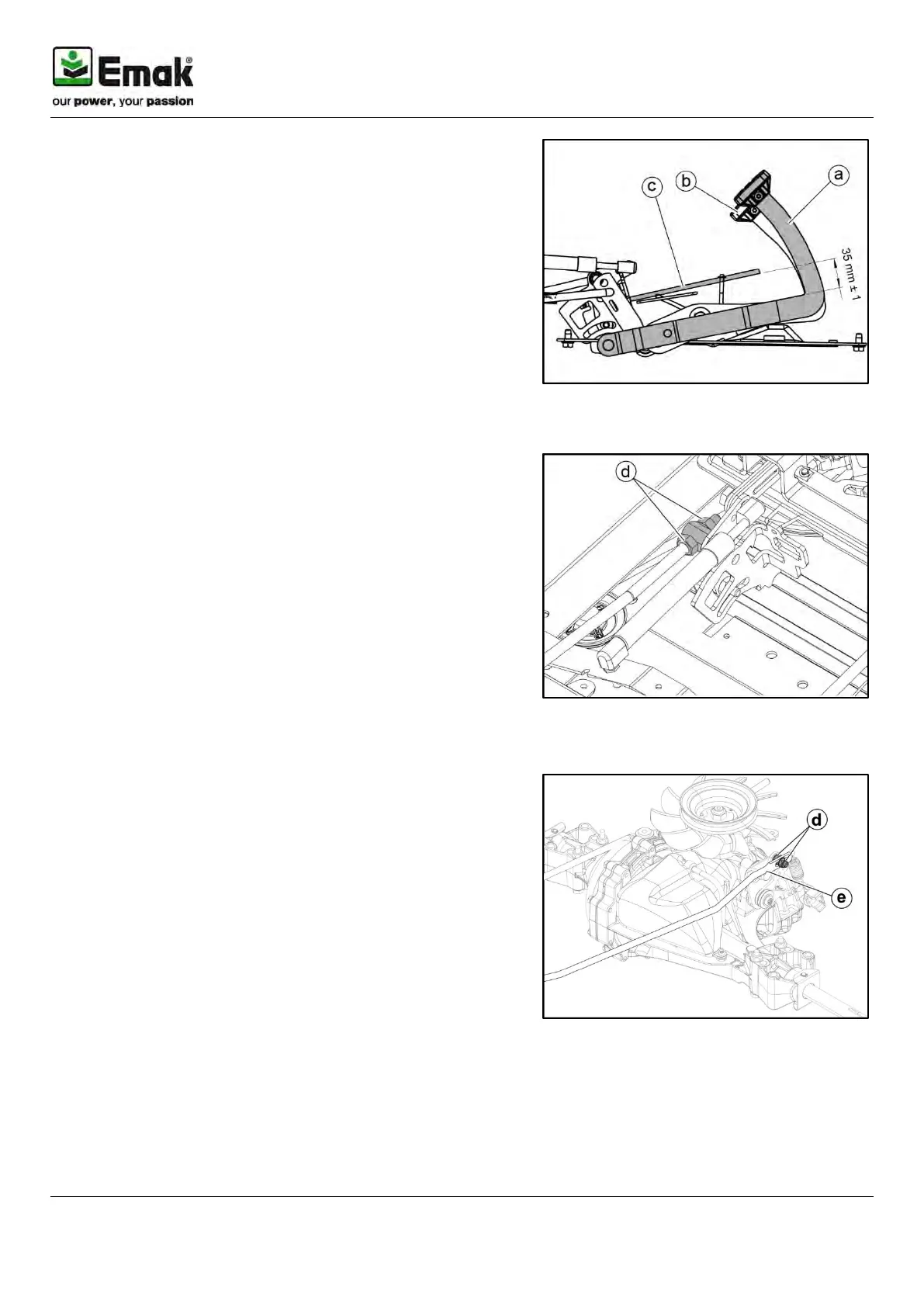

6.4 Propulsion pedals
The distance between the forward accelerator pedal (a)
and the step plate (c) should be 35 mm ± 1 when the pedal
is not pressed.
Adjusting the accelerator pedal (125)
Release the nuts (d) on the pedal linkage and adjust the
distance of the forward pedal (a).
Adjusting the accelerator pedal (95-105)
Release the nuts (d) and move the pedal linkage (e).
Tighten the nut (d).
