6.5 Fine adjustment of the steering

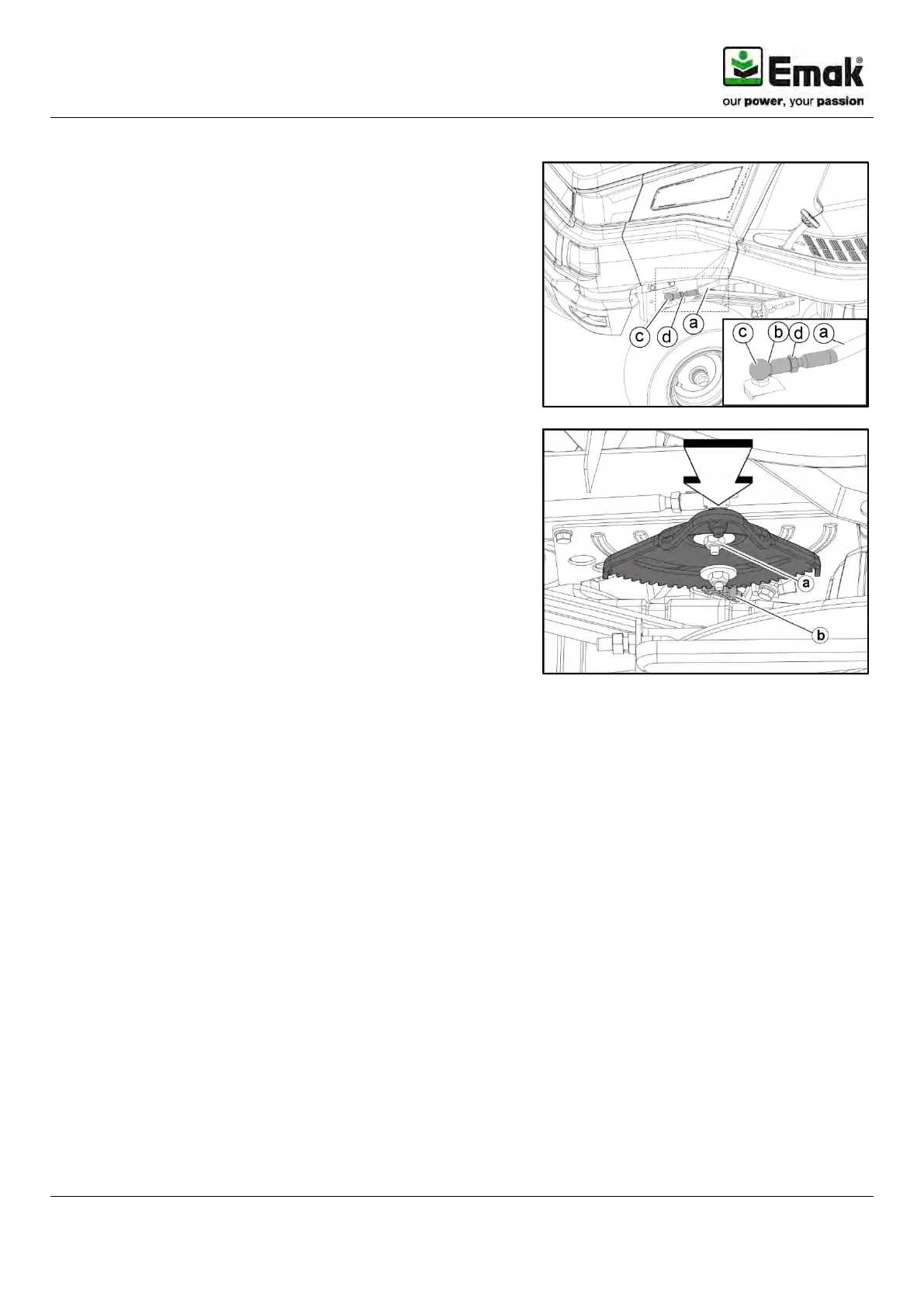

For the fine adjustment of the steering wheel perform the
following setting at the thrust rod (a) front left.
 Remove the locking bracket (c) from the ball head (c).
 Loosen the locknut (17 mm) (d). Hold the ball head (c)
with pliers.
 Lift the thrust rod (a) of the ball head (c).
 Rotate the ball head (c) one revolution anticlockwise or
clockwise.
6.6 Steering sector adjustment
 Slightly release the hexagon head screw (a) of the
steering sector guide.
 While you are pushing the steering sector towards the
steering pinion (b), tighten the hexagon head screw (a).
Tightening torque: 65 Nm
