6.2 Grass catcher

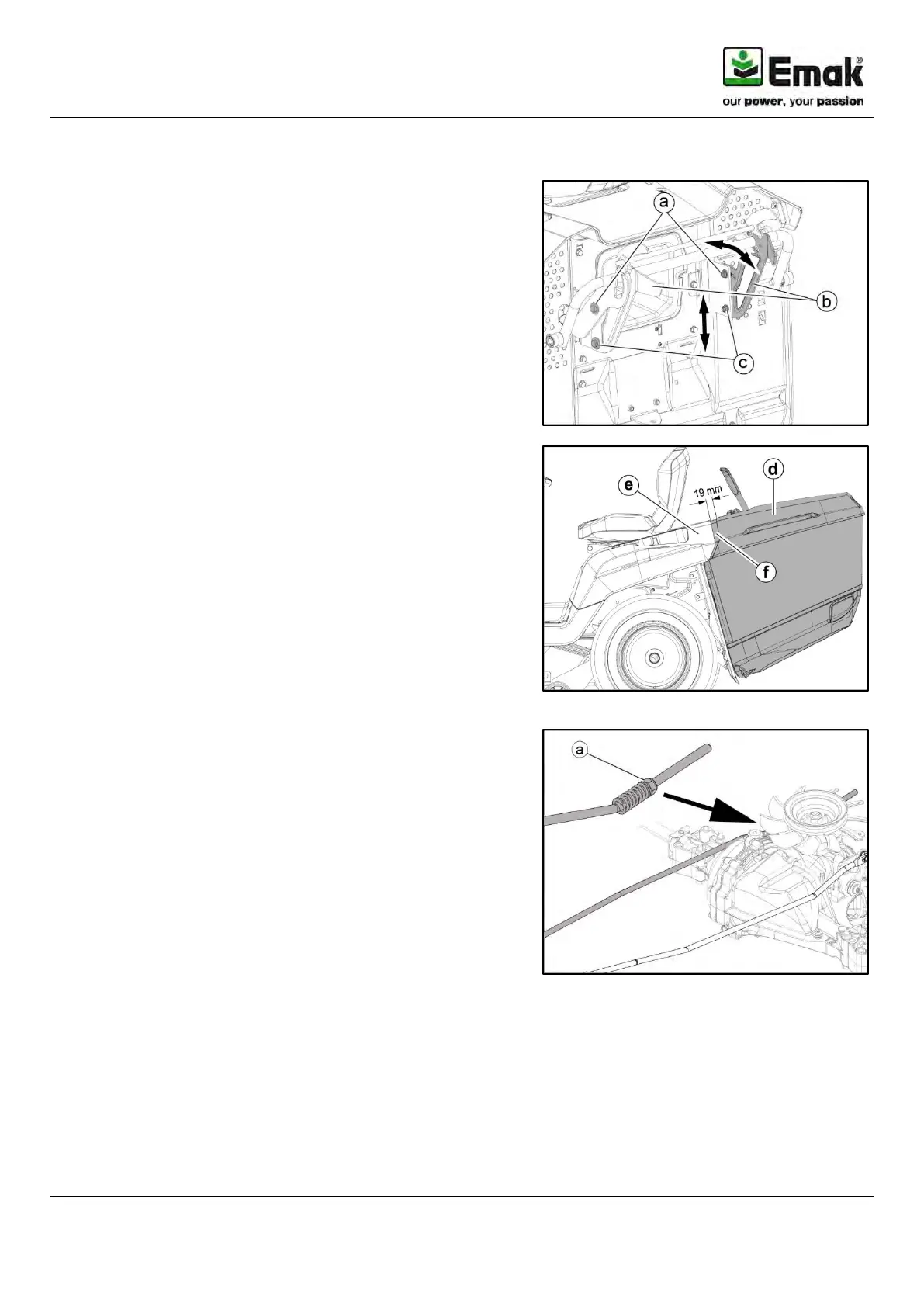

Release the screws (a + c) to adjust the box holding arms
if the gap between box cover (d) and seat console (e) is
not correct.
 Release the screws (c) and adjust the supporting rim of
the box cover positively to the seat console (e).
 Release the screws (a) and adjust the distance
between the seat console (e) and the first edge of the
box cover (d) to 19 mm.
6.3 Brake adjustment
The brake of a tractor with 95-105 transmission can be
adjusted. The brake linkage is in the vehicle frame in
driving direction right. Merely the discharge channel need
to be removed for adjustment.
 Screw the self-locking nut (a) onto the brake linkage
until it is in contact with the spring.
