Workshop manual
18

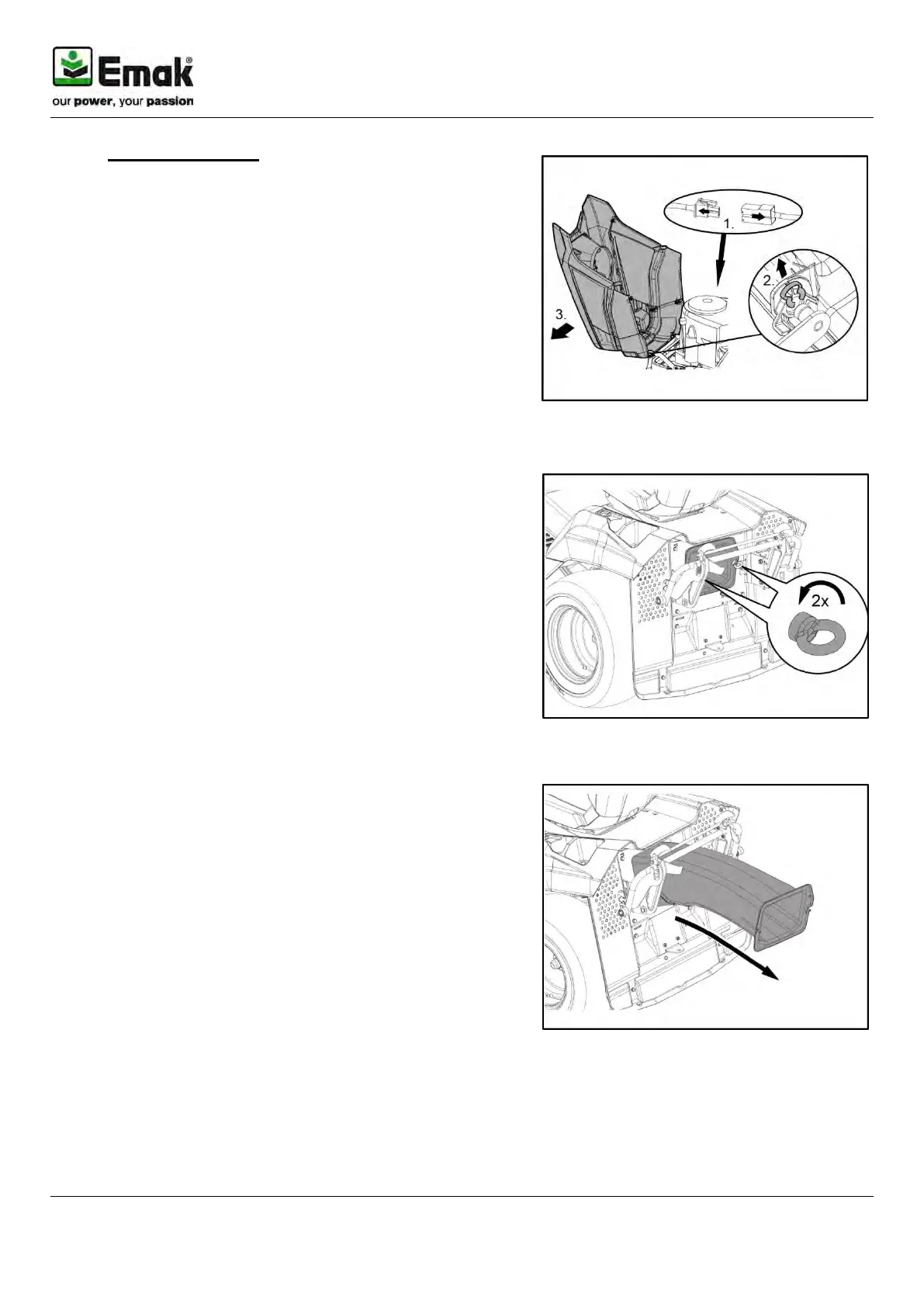

4 Disassembly
4.1 Bonnet
Open the bonnet.
Disconnect the cables from the light harness to the
headlights.
Remove the C clips (2x) at the bonnet suspensions.
Lightly swing back the bonnet, and pull down in
driving direction left of the bonnet suspension.
Assemble in the reverse sequence.
4.2 Discharge channel
The discharge channel consists of two telescopic parts.
The lower part is firmly engaged in the mower housing.
The upper part can be pulled out.
Remove the grass catcher
Remove the eye nuts on the left and right of the
discharge channel
Pull out the discharge channel from the rear through
the rear wall.
Assemble in the reverse sequence.
Insert the discharge channel into the rear wall. Ensure
that the upper parts fits neatly into the lower part.
Secure it with the two eye nuts.
