Workshop manual
36

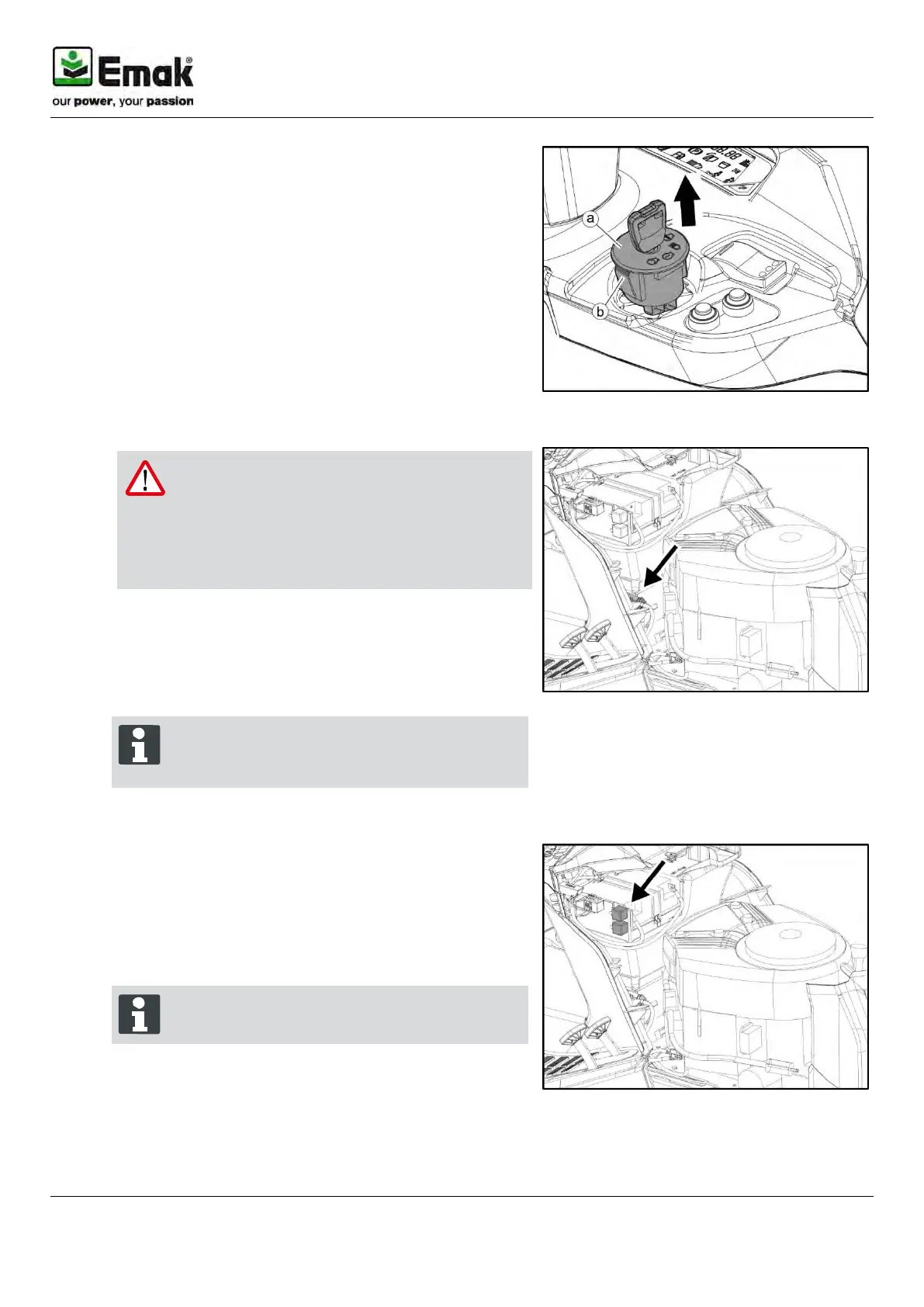

4.7.3 Ignition/starter switch
Press the clamping springs (b) of the ignition/starter
switch (a), and pull the switch from the top out of the
control panel.
Pull the connector off the switch.
Install in the reverse sequence.
4.7.4 Removing the start relay
CAUTION!
Risk of short-circuit!
Prior to replacing the start relay, disconnect
the battery.
The start relay sits at the right side underneath the tank.
Disconnect the hexagon nuts of the main connections
(2x).
Disconnect the control connecting cable.
Ensure that the connections sit firmly when
you install the start relay.
4.7.5 Removing the relay
(Only in tractors without display)
The relay sits underneath the control panel, next to the
starter battery.
1 2x relay (without electrical grass catcher emptying)
2 3x relay (with electrical emptying of the grass catcher)
See circuit diagram for relay functions.
