Workshop manual
32

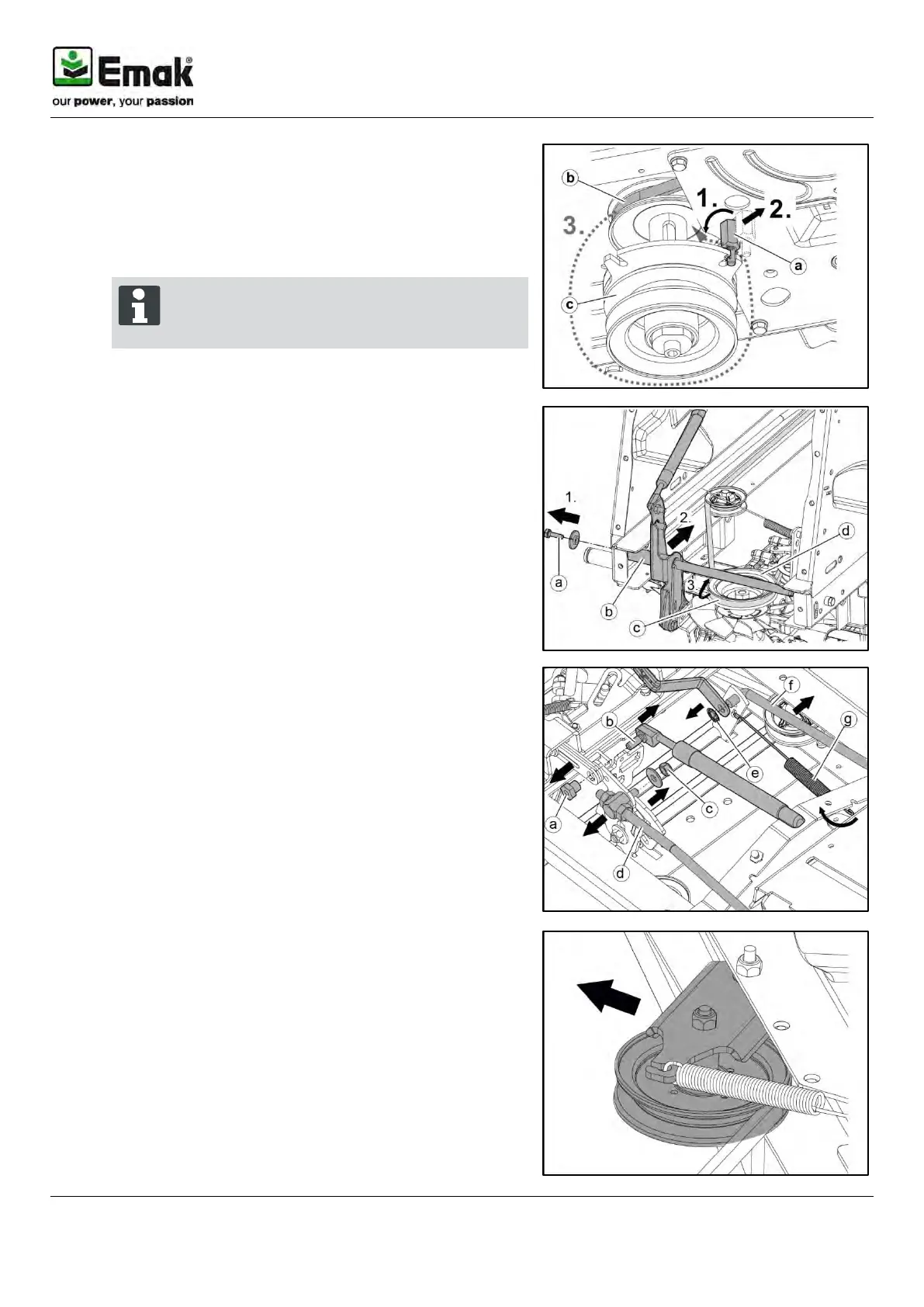

Using a 17-mm fork spanner, slightly release (1) the
antirotation element (a) and pull it off the blade brake
clutch (c) (2).
Thread the V-belt between antirotation element (a) and
blade brake clutch (c) (3).
This requires the connecting cables of the blade
brake clutch to be disconnected.
Release hexagon head screw (a) and washer of the
propulsion linkage (b) (1).
Swing the propulsion linkage (b) upwards (2).
Remove the V-belt (c) between propulsion linkage (b)
and idler pulley (d) (3).
Release the locking nut (a) (option with cruise control),
and pull off the damper (b).
Release the hexagon nut (c) and pull off the linkage.
Pull off the locking ring (e) (option with cruise control)
and pull off the linkage (f).
Detach the spring (g).
With 20-in chassis
Detach the spring of the tensioning pulley to relieve the
propulsion V-belt.
