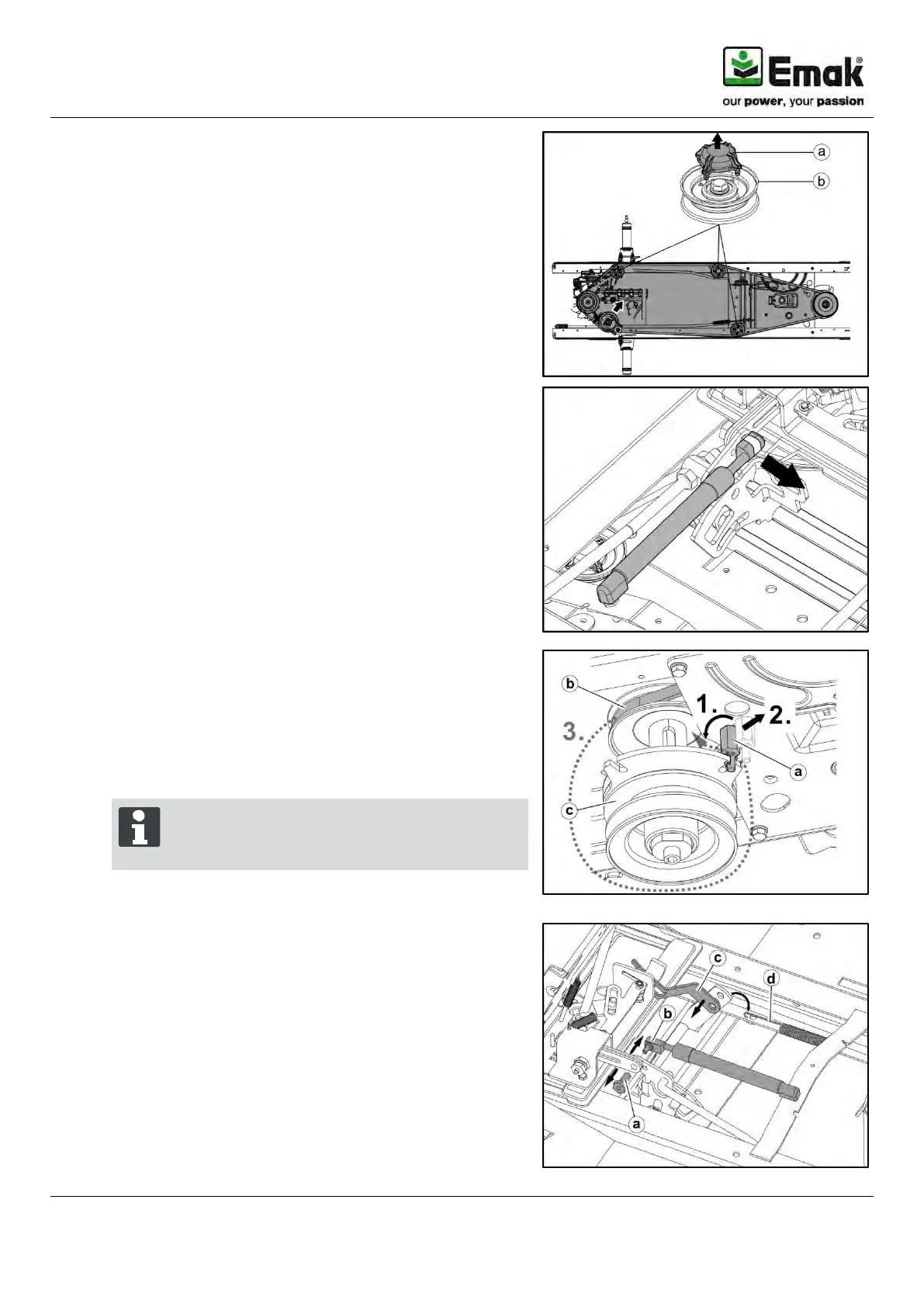

Remove the covers (a) of the idler pulleys (b).
Release the hexagon head screw of the idler pulleys (b)
until you can remove the V-belt.
Lift off the safety element at the head of the accelerator
pedal damper and pull the head of the accelerator pedal
damper off the linkage.
Using a 17-mm fork spanner, slightly release (1) the
antirotation element (a) and pull it off the blade brake
clutch (c).
Thread the V-belt (b) between antirotation element (a)
and blade brake clutch (c).
This requires the connecting cables of the blade
brake clutch to be disconnected.
Release the locking nut (a) and pull off the damper (b).
Pull off the linkage (c).
Detach the spring (d).
Assemble in the reverse sequence.
