Workshop manual
39

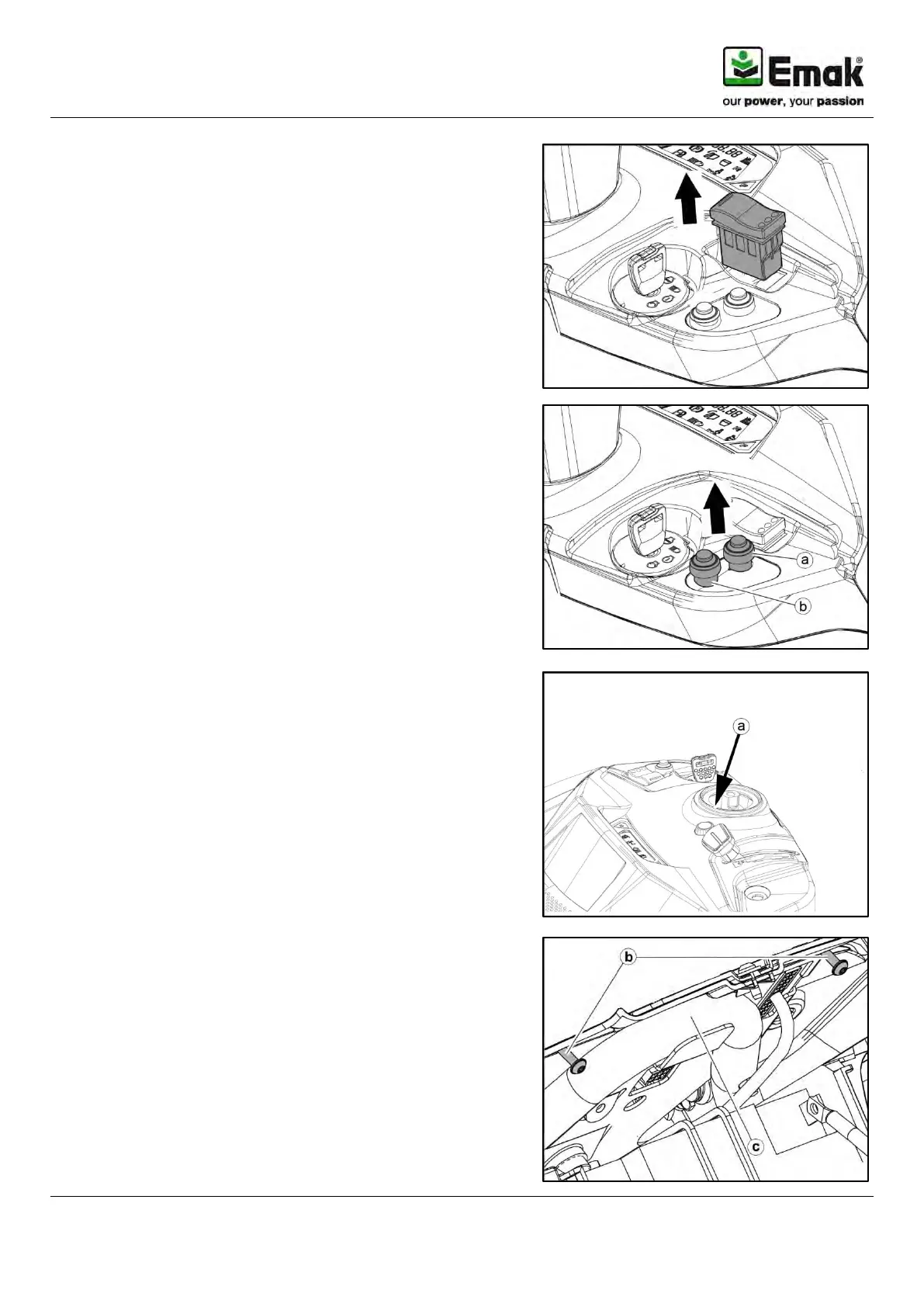

Mowing implement switch
 Press the clamping springs of the mowing implement
switch together, and pull the switch from the top out of
the control panel.
 Pull the connector off the switch.
Reverse mowing switch (a) / distance sensors (b)
Use the same procedure to remove these two switches.
 Pull the switch from the top out of the control panel.
 Pull the connector off the switch.
Display
 Remove the steering wheel.
 Release the Torx screw (a) in the steering wheel
retainer.
 Release the Torx screws (b) from below by 2...3 turns
to disconnect the control panel from the body frame.
