EMC Connectrix B Series v6.2 ED-DCX-4S-B Hardware Reference Manual
Port Side Exhaust Kit Installation Procedure

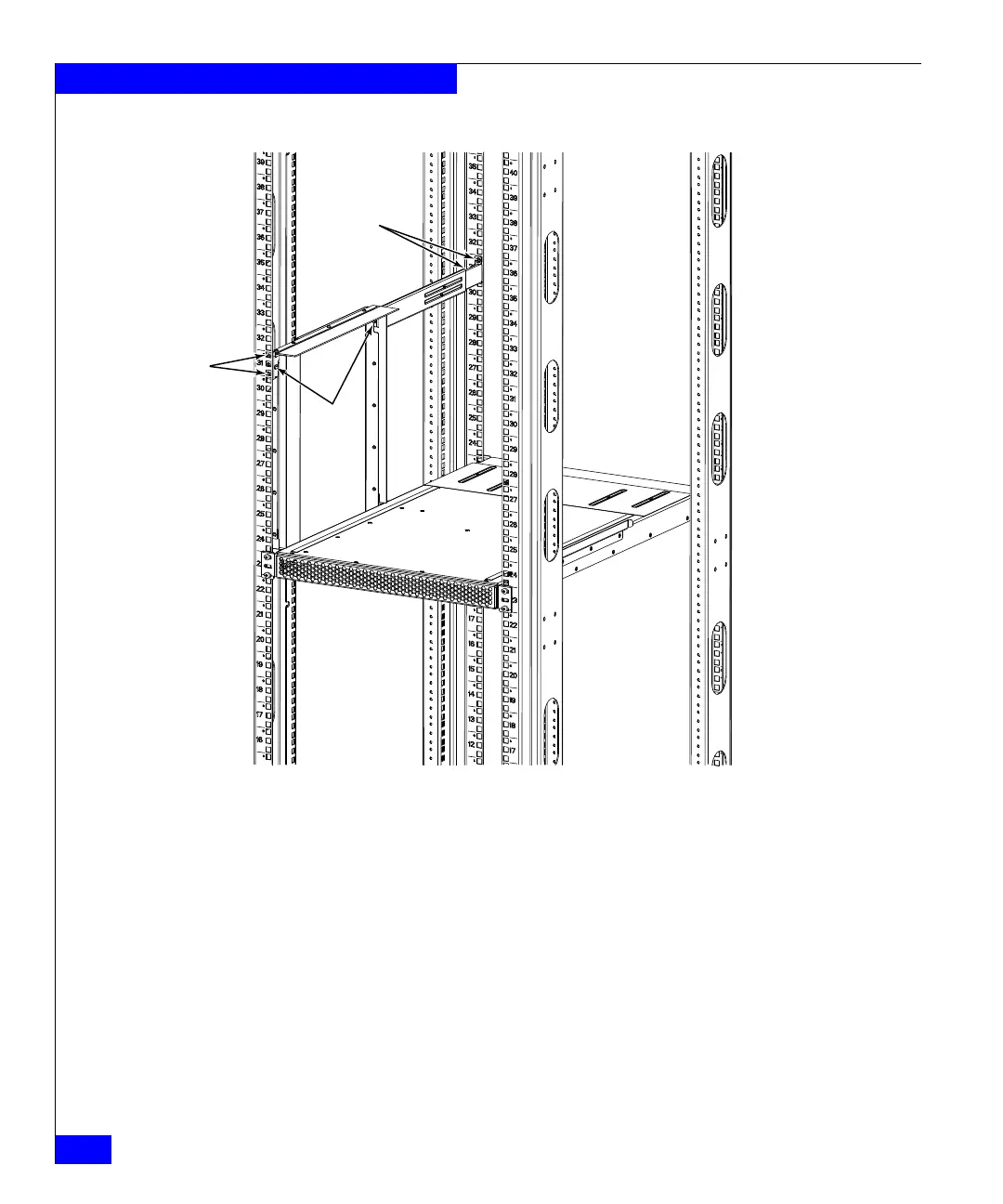

Figure 42 Securing top rail in cabinet.
6. Secure the top-rail assembly to the cabinet with four 10-32 screws,
two screws on each end of the top-rail assembly.
• For rails with round holes:
Use two 10-32 screws with washers (E in Figure 38 on
page 195) on each end of the top rail assembly. Tighten screws
according to specifications under “Torque requirements” on
page 195.
• For rails with square holes:
Install
screws
Install
screws
Install screws
