The On/Off switch can be arbitrarily positioned (e.g. at the fuselage's
side wall). Put the connection cable with its plug into the multi point
connector of the DPSI RV Mini until it locks (see picture). If eventually
a swap or disconnect is in order, carefully remove by moving upwards
out of the multi point connector (grapple the cable directly at the plug).

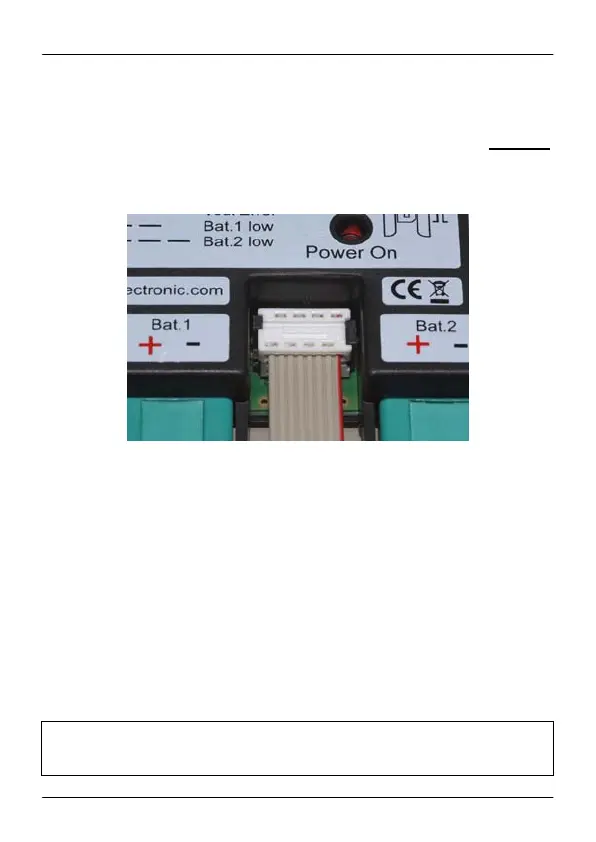

Correctly mounted switch actuator at DPSI RV:
Switch Actuator in Magic versions:
Magic versions of the DPSI RV Mini (with servo-matching) are not
delivered with the pin switch actuator but rather with a magnetically
switch actuator. Because a magnet is necessary for programming the
servo-matching functions it can be used as switching element for the
switch actuator as well.
The magnet is positioned close to the on-position of the switch actuator
(green marking on housing) for about 1 second.
For turning off, hold the magnet close to the opposite marking of the
switch actuator for about 2 seconds.
Hinweis:
For regular DPSI RV Mini versions, a magnetically switch actuator is available as
optional accessory.
