126 View the transducer waveforms
Section 7: Tools commands 3410 Series Gas Ultrasonic Meters Operations Manual
June 2016 3-9000-777 Rev D
For diagnostic purposes, the transducer waveform signals can be stored to a file using the
Diagnostic Collection - Stream to file check box. This utilizes the Daniel 3410 Series Gas Ultrasonic
Flow Meterr’s patented “snapshot-and-playback” feature to accurately record the flow signals
that can then be later reproduced for detailed analysis.
Waveforms are displayed in the time domain (e.g., the waveform signal is plotted against time).

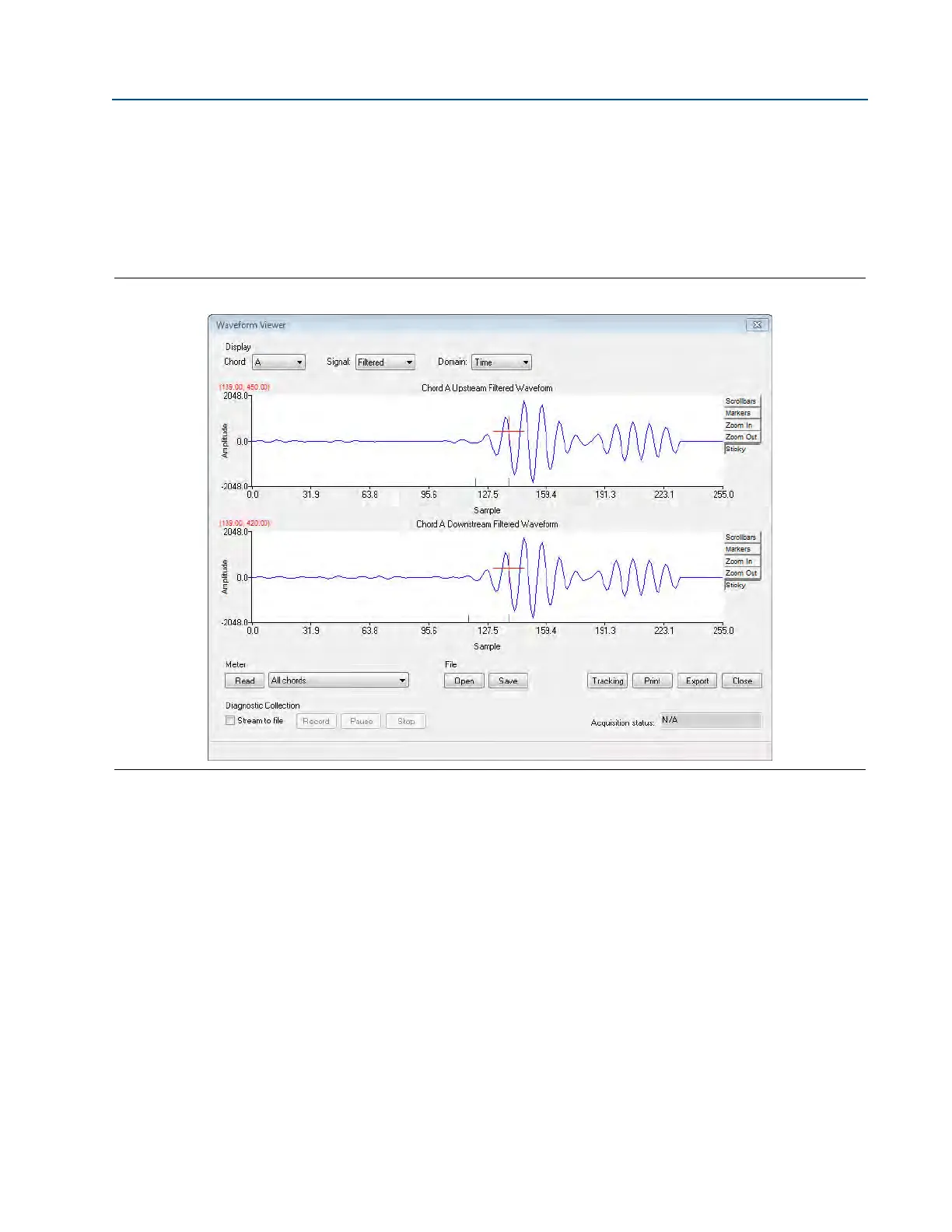

Figure 7-4 Waveform viewer - time domain
