Mounting and Dimensions Mounting and Hardware Overview • 3
3 Mounting and Hardware Overview
3.1. Mounting and Dimensions
In most situations, the iPro Case Controller will arrive at the customer’s site already installed within a case OEM fixture or within a
pre-fabricated Emerson control panel. The installer need only make communication wiring and field sensor wiring terminations (if
required). If the need arises for the installer to mount the iPro Case Controller elsewhere, the controller should always be mounted in a
moisture-free environment or an environment adequately protected from moisture.
The iPro Case Controller, XEV20D and IPX106D use a DIN rail mount for installation, see figures below for dimensions.

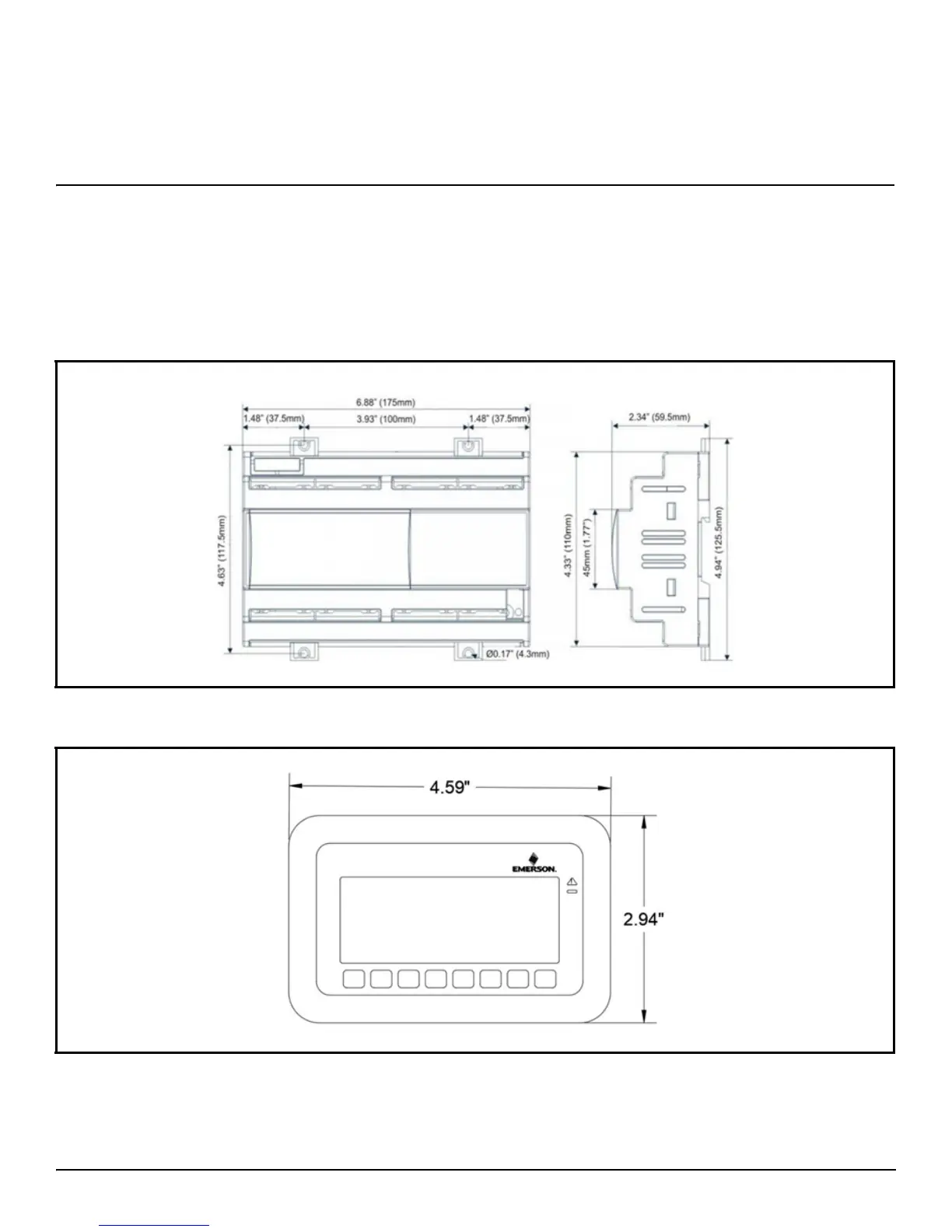

Figure 3-1 - iPro DIN Mounting
Figure 3-2 - Visograph Display Dimensions
