20 • iPro Case Controller I&O Manual FM V1.01 026-1738 Rev 1
7.2. IPX106D Digital Inputs
The IPX has a maximum of three (3) digital inputs that can be configured for use with the case controller through the Visograph display.
The three (3) digital inputs have a single point for common, Terminal 13. Connect one side of the inputs to the signal terminals 10, 11
or 12 and the other side to common Terminal 13.

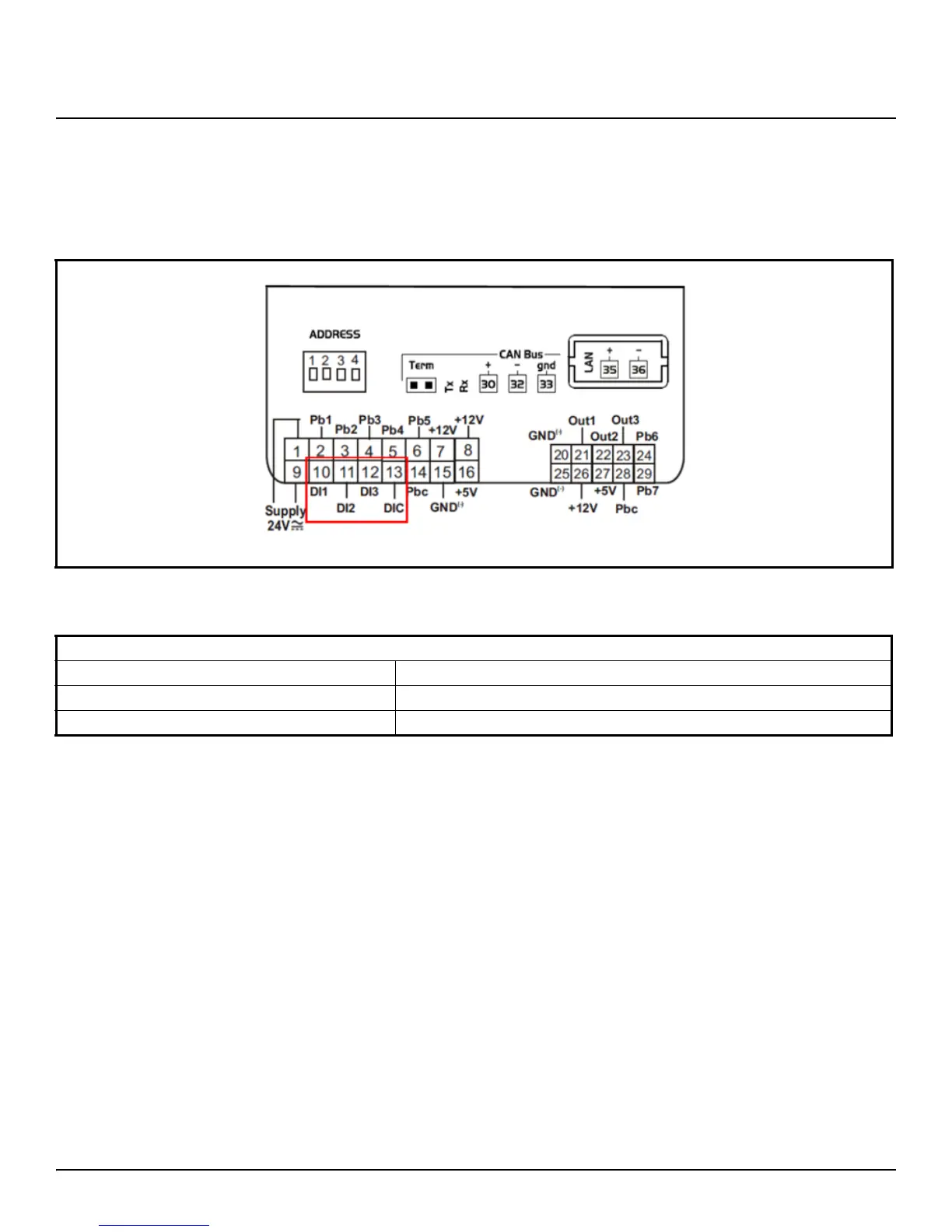

Figure 7-2 - IPX106D Digital Input Wiring
DIGITAL INPUTS
TYPE: Opto-insulated voltage free contact
NUMBER OF INPUTS: 3
NOTES: Do not use live contacts to prevent the inputs from being damaged.
Table 7-2 - IPX106D Digital Input Specifications
