Wiring Visograph Display Powering Devices and Wiring • 17
5.7. Wiring Visograph Display
The Visograph connection to iPro is made with three (3) wires
from the iPro remote display port terminals 103,104,105 to the
Visograph wiring connector terminals 1,2,3 located on the back
side of the Visograph. The wire type used for this connection
should be Belden #8771.
CAUTION: Special care should be taken when
making this connection so that no wires are
incorrectly landed or crossed, a mistake in this
connection likely will result in damage to either
device or both devices.

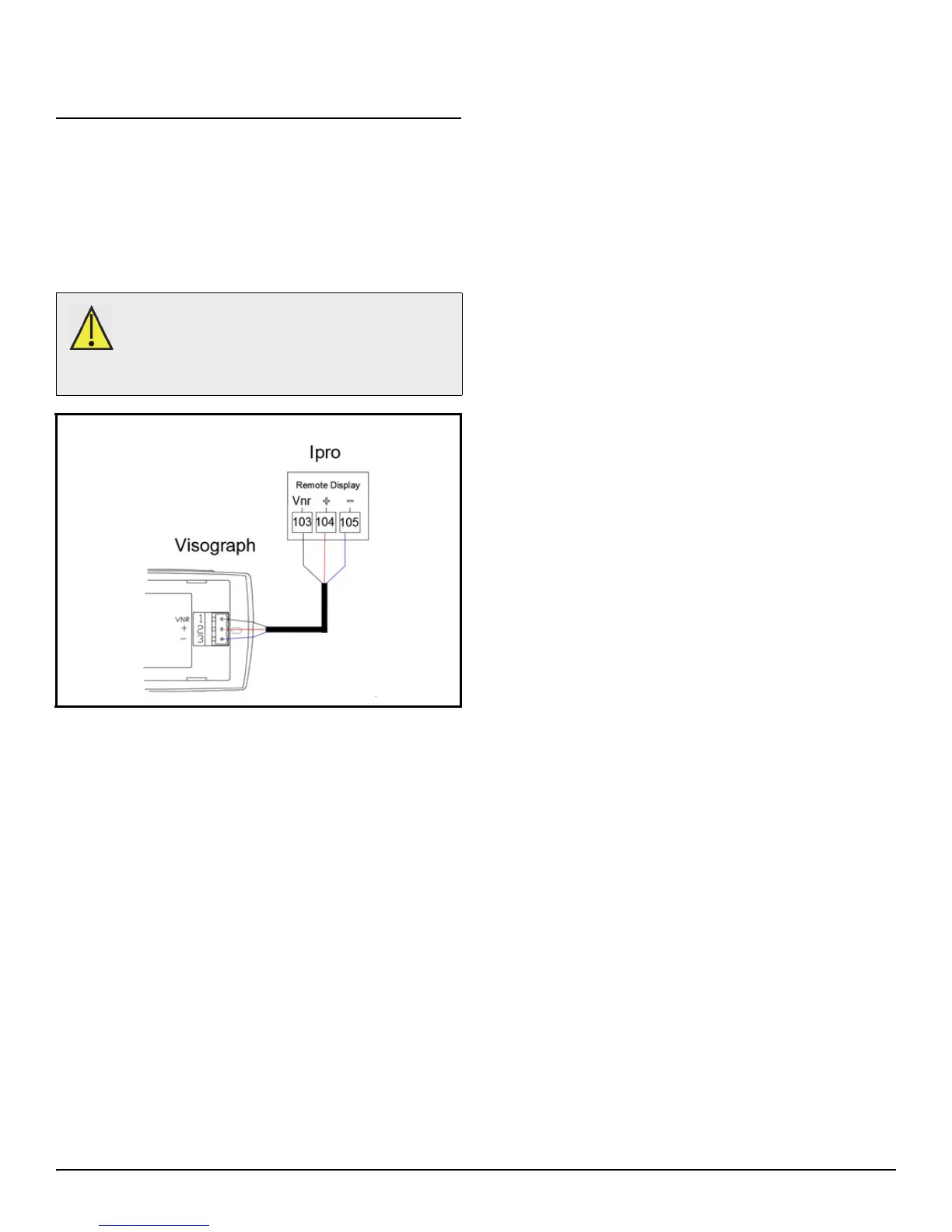

Figure 5-3 - Wiring Visograph Display
