4.3. Visograph Overview
The local user interface for iPro Case Controller is Visograph 2.0 V2IPG. The Visograph is an LCD display with eight (8) keys (labeled
T1-T8) on a membrane keyboard. The Visograph can be panel mounted or wall mounted as shown above in the Visograph dimensions
detail. The Visograph is powered from the iPro remote display port on iPro terminals 103, 104, 105. In most installations, each iPro Case
Controller will have its own Visograph display locally mounted for controller navigation and configuration. All parameters and
configuration for the case controller can be edited from Visograph. The Visograph provides a quick and easy interface for viewing
temperatures, alarm data, system status, valve percentages and status of outputs and loads. More on Visograph navigation is covered later
in this document.
Jumper to activate the RESCUE MODE
Yellow status LEDs (LED1) and red LED (ALARM) See relative paragraph
NOT USED IN CASE CONTROLLER
NOT USED IN CASE CONTROLLER
NOT USED IN CASE CONTROLLER

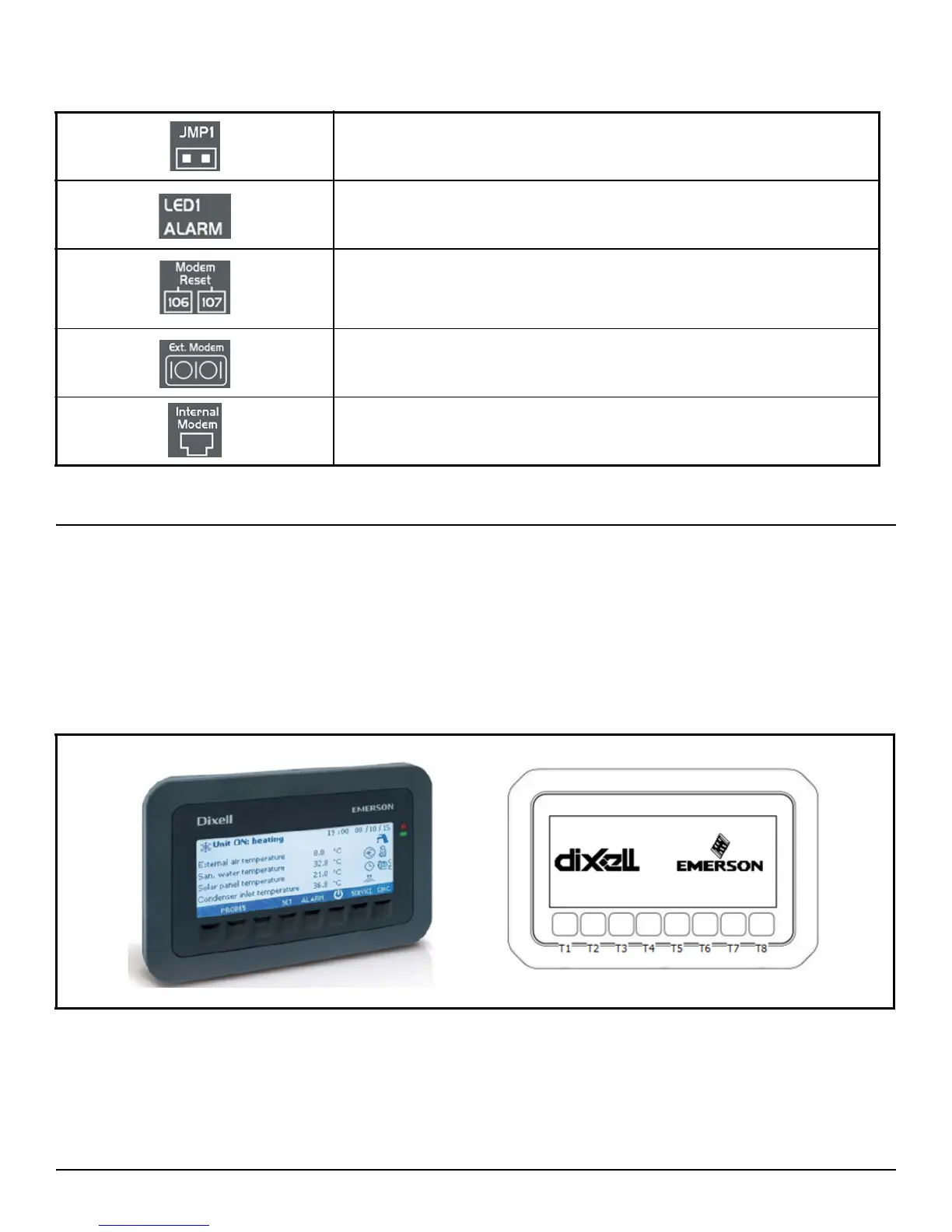

Figure 4-3 - Visograph
Table 4-2 - iPro Connections and Descriptions
To Next Page
