Wire Types MODBUS Networking-Master Slave Lineup • 41
1. Press and hold the T4 key for three (3) seconds to enter the
main menu:
2. Select T2 for System Configuration, and then T1 for
System:
3. Press the T5 key to move the cursor to the Modbus Addr
and Baud fields. Press T4 (SET) to edit and use T4/T5 to
move the values to the desired selection. Press T4 (SET) to
save the selection.
4. After saving the address selection press the T6 (right arrow
key) two times to page over to reboot:
Arrow down until reboot NO is selected, press T4 to edit and
change the value to YES. Press T4 (SET) to save YES. The
device will now reboot to initialize the address and baud rate
change. Note that any time address or baud rate is changed,
a reboot is required.
13.1.3. Defining Slave Case Controllers
Within the Master
When a master slave lineup configuration is used, each slave case
controller’s Modbus address needs to be defined within the master
case controller’s menu. Perform the following steps to configure
the slave addresses on the master case controller:
1. Press the T4 key for three (3) seconds to enter the Main
Menu:
2. Press the T2 key to enter System Configuration and then
press T1 at the next menu to select System:

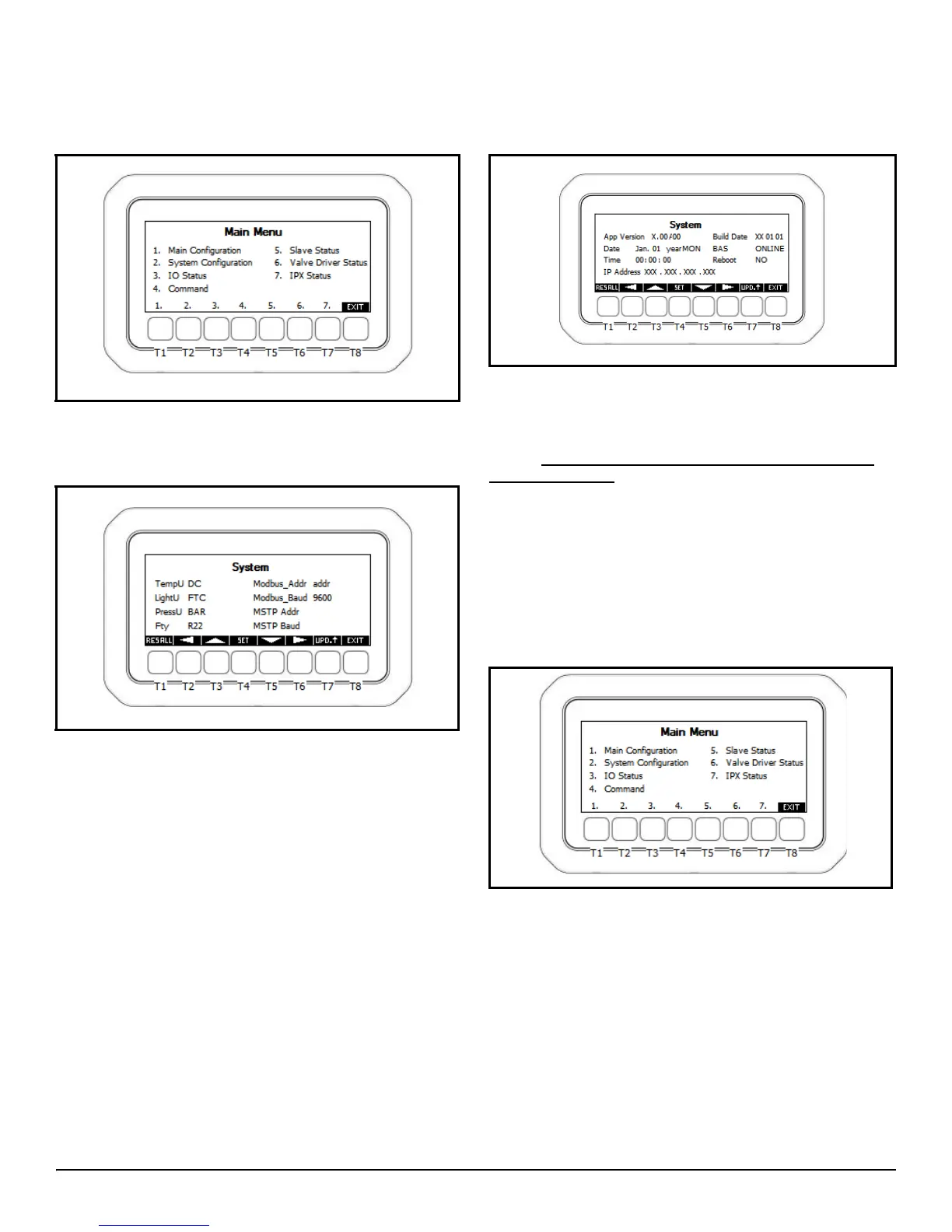

Figure 13-2 - Enter the Main Menu By Pressing the T4 Key
Figure 13-3 - System Configuration
Figure 13-4 - Reboot
Figure 13-5 - Main Menu
