IPX106D Hardware Overview Overview • 9
4.4. IPX106D Hardware Overview
The IPX is an input/output expansion board for use in
combination with iPro Case Controller. The IPX has six (6) digital
outputs, seven (7) analog inputs, three (3) digital inputs and three
(3) analog outputs. The case controller supports up to two (2) IPX
modules at one time. The IPX communicates with iPro Case
Controller on the CAN Bus port, when XEV20D and IPX are
present then the CAN Bus communication wiring is simply
continued to the IPX in a daisy chain. When the IPX modules are
present they communicate at address 4 and 5.

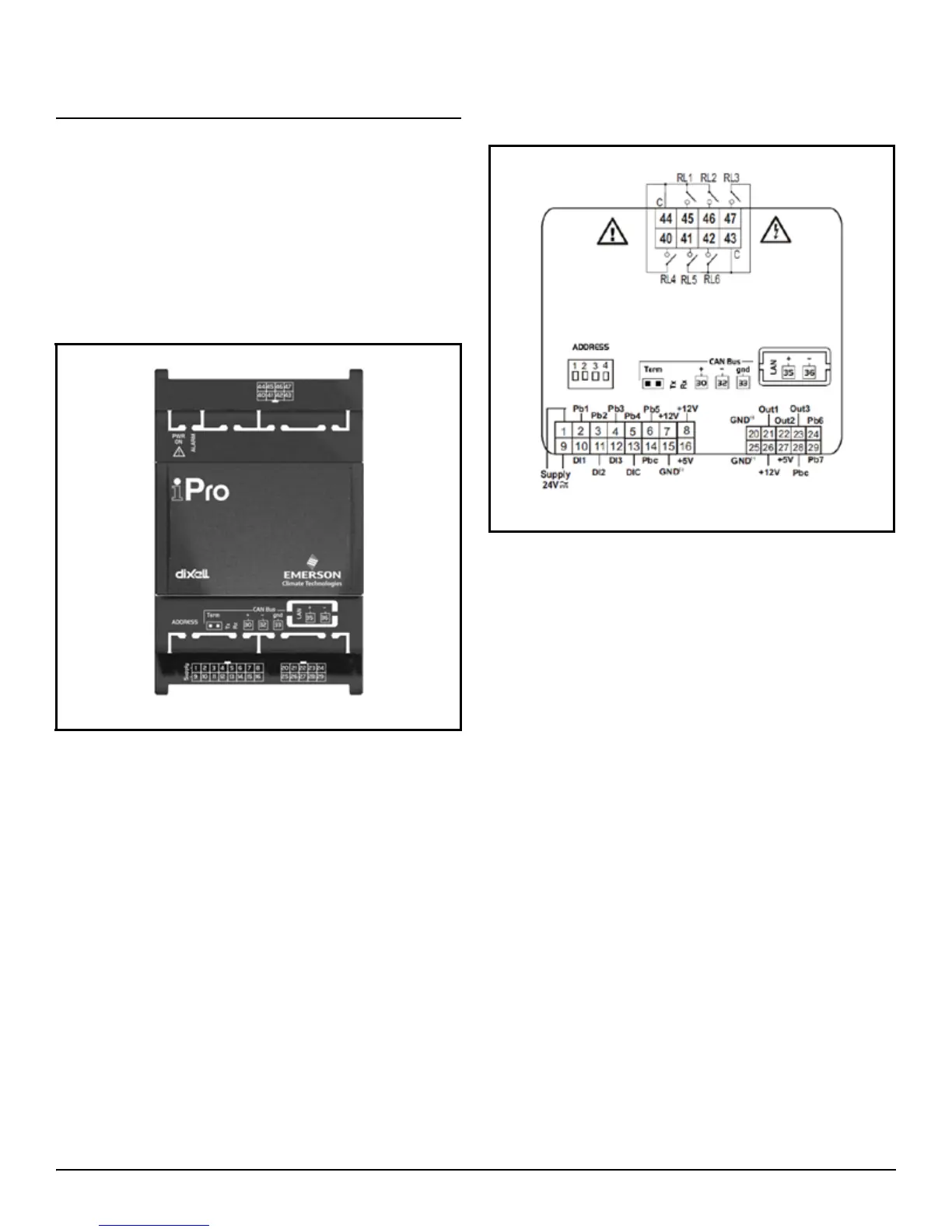

Figure 4-4 - IPX106D
Figure 4-5 - IPX106D Wiring
