22 • iPro Case Controller I&O Manual FM V1.01 026-1738 Rev 1
8.2. IPX106D Digital Outputs
The IPX106D has six (6) digital outputs with normally open contacts that can be used in addition to iPro digital outputs if required.
The IPX relays are split into two different groups: terminals 40-43 and terminals 44-47, each having its own common (43 and 44).

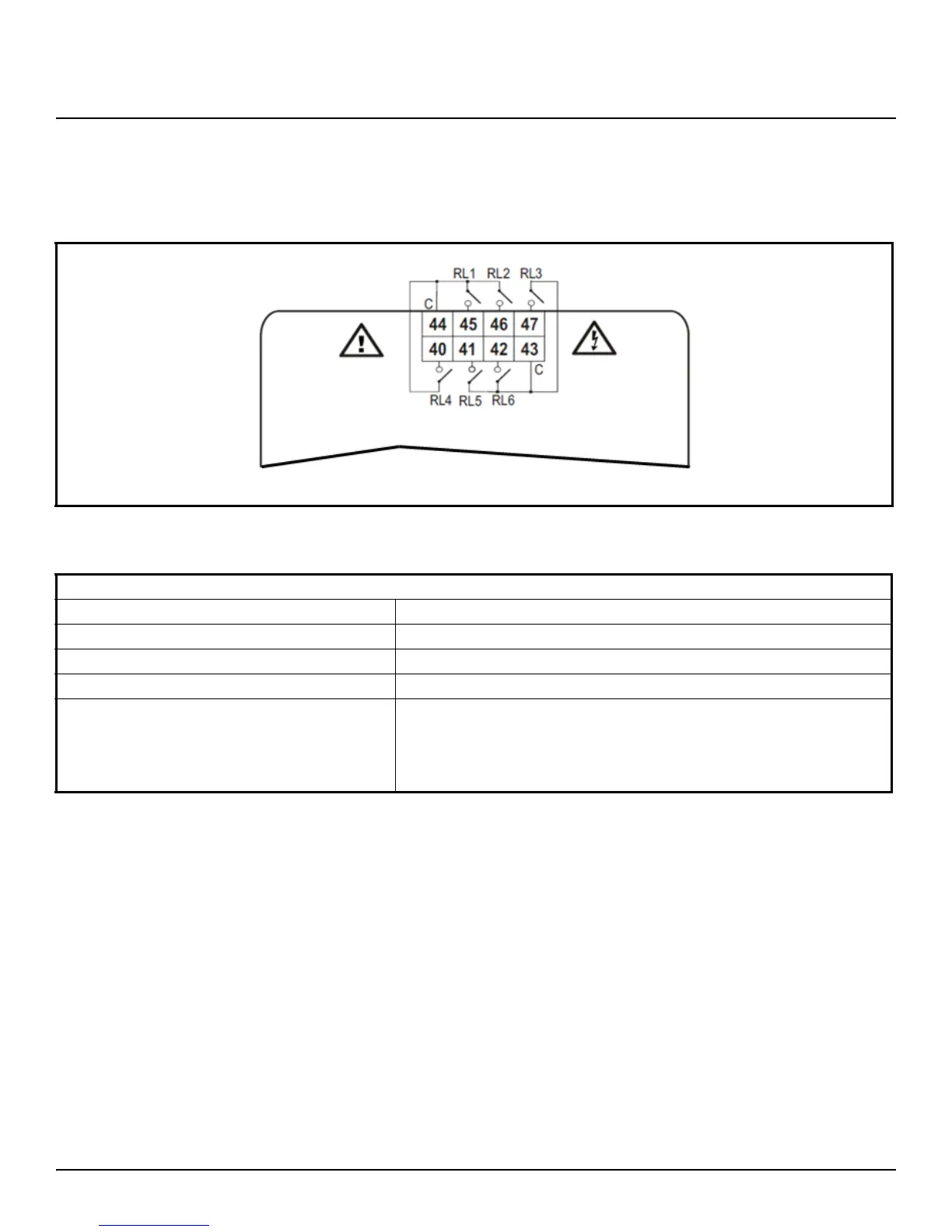

Figure 8-2 - IPX106D Digital Output Wiring
DIGITAL OUTPUTS
TYPE: Relays with NO contacts
NUMBER OF OUTPUTS: 6
TYPE OF OUTPUT: Relays with normally open contact
MAXIMUM LOAD: 5A (250 VAC) SPST 5(2)A
NOTES: Verify the capacity of the output used. There is double insulation be-
tween the digital outputs and the low voltage of the rest of the circuit.
The common relays of the outputs are separate and split into groups.
Different voltages can be used for different groups of relays but the
same voltage must be used within each group.
Table 8-2 - iPro Digital Output Specifications
