44 • iPro Case Controller I&O Manual FM V1.01 026-1738 Rev 1
14.1. Viewing Temperature Input Status
To see an overview of temp input values, use the T3 key to access
the case tab:
Use the T5/T6 keys to scroll through the different configured
inputs, and press the T1 key to return to the main tab.
14.2. Viewing Valve Positions and
Superheat Data
To see an overview of valve positions and current system
Superheat, press the T2 key from the Main Menu to access the
valve overview tab:
To see in-depth data for a specific EEV valve, select the
corresponding EEV tab with the T4-T6 keys.
Press the T1 key to jump back to the Main Menu.
14.3. Entering the Visograph Main
Menu
To enter the Main Menu, press and hold the T4 key
continuously for three (3) seconds. Then the Main Menu will
appear.
The seven (7) sub menus are selectable with keys T1-T7, and key
T8 can be used to exit submenus and the Main Menu back to the
home screen.

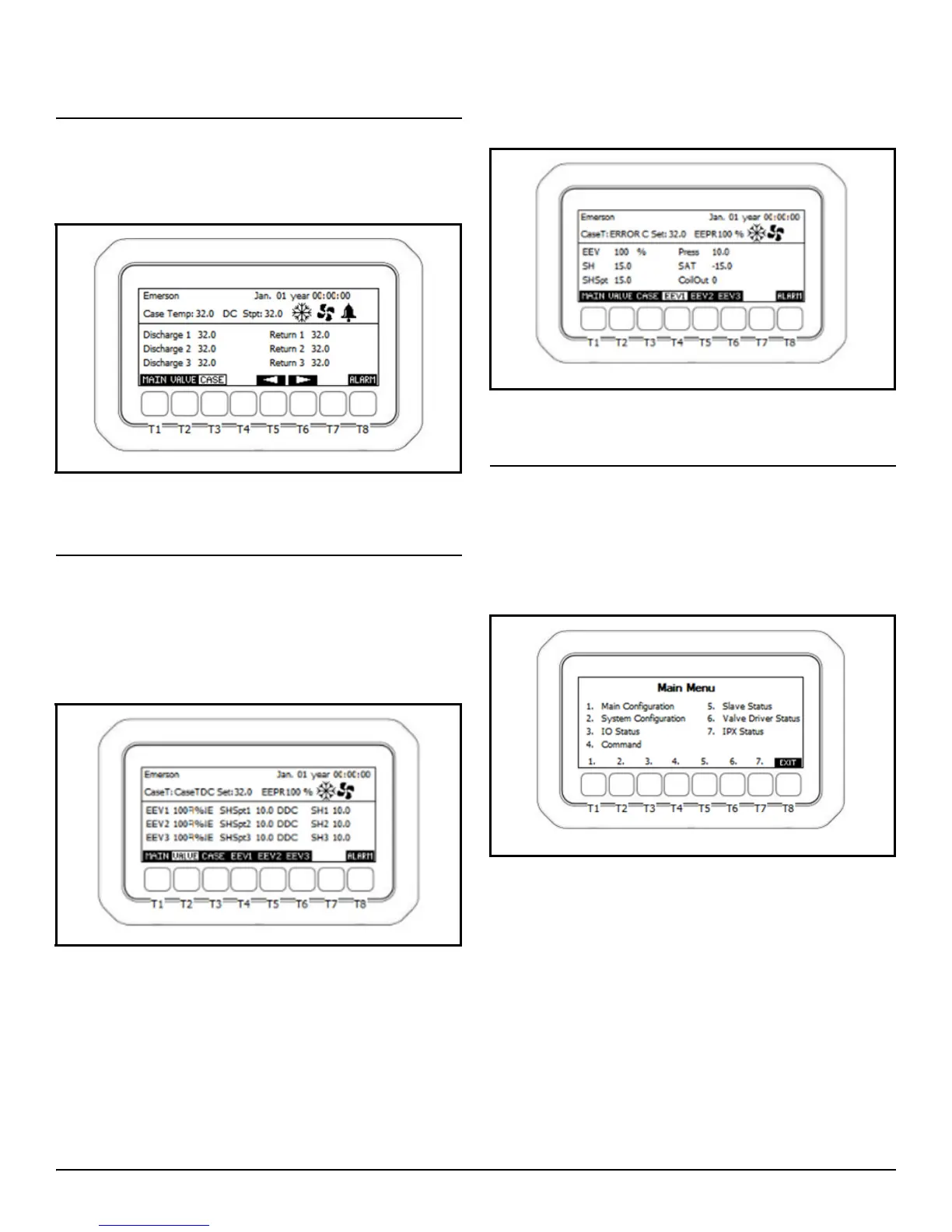

Figure 14-3 - Case Tab
Figure 14-4 - Valve Overview Tab
Figure 14-5 - Valve Overview Tab
Figure 14-6 - Main Menu
