46 • iPro Case Controller I&O Manual FM V1.01 026-1738 Rev 1
Press T7 to advance to the sensor type screens, the sensor type can
be set up here. (NTC, PTC, 0-20mA, 4-20mA, 0-1VDC, 0-5VDC,
0-10VDC, CPC temp).
Press T7 to advance to the sensor scaling screens for pressure
transducers. When a pressure transducer is set up on AI1-10, the
EU scaling can be configured based on the transducers min/max
ranges.
Press EXIT to return to the main I/O Configuration screen.
Pressing T5, T6 or T7 will allow AI on XEV20 and expansion
modules to be configured.
14.4.1.1. Analog Input Options

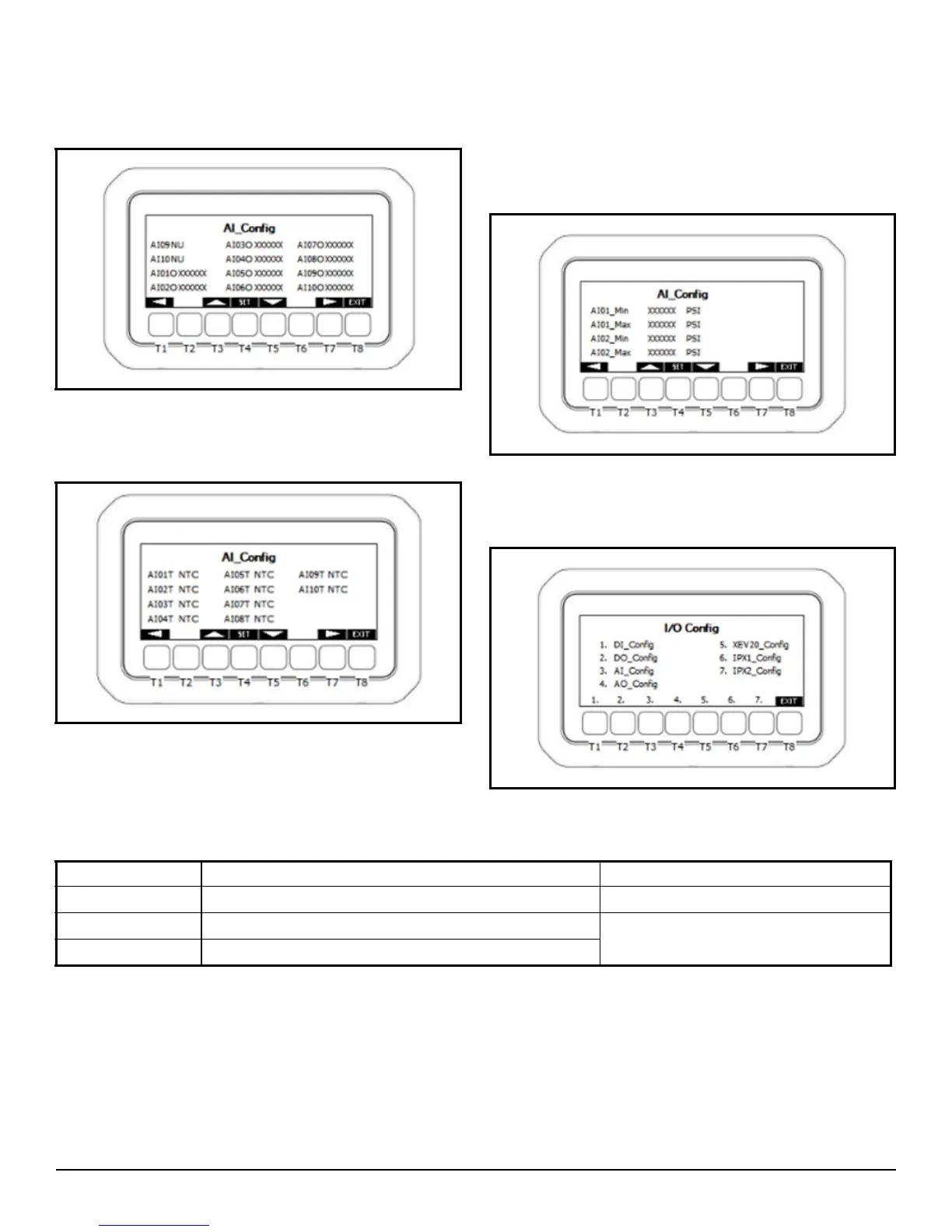

Figure 14-9 - Sensor Offsets
Figure 14-10 - Sensor Types
Figure 14-11 - Sensor Types
Figure 14-12 - IO Config Menu
Analog Input Description Hardware Available
Nu
Input is not used N/A
FanAmps
Fan amperage current transducer
iPro or IPX
DefrAmps
Defrost amperage current transducer
Table 14-1 - Analog Input Options
