5.5. Powering XEV20D
The power supply voltage for XEV20D is 24VAC and connects to
terminals 1 and 7 on the wiring harness. Reference Table 5-1 for
transformer selection and part numbers. The iPro Case Controller
currently supports a maximum of two (2) XEV20D. Each
XEV20D should have its own dedicated transformer.
Do not share transformers between multiple XEV20D devices
.
5.6. Powering IPX106D
The power supply voltage for IPX106D is 24VAC and connects
to terminals 1 and 9 on the device wiring harness. Use Table 5-1
for selecting a transformer to power IPX. Each IPX device
requires its own transformer, sharing transformers between
devices is not allowed.

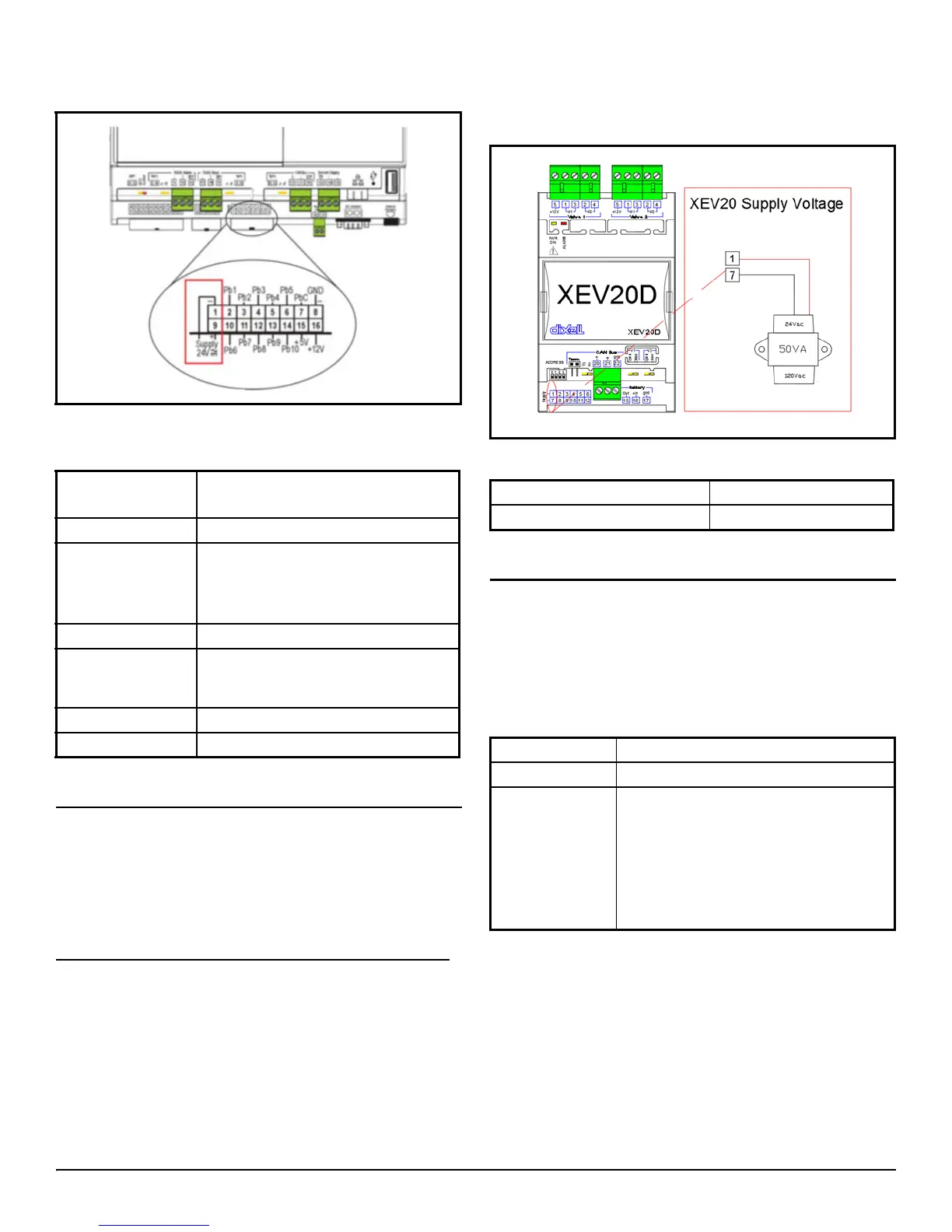

Figure 5-1 - Non-Center Tapped Transformer Connection to iPro
Power Supply: 24VAC +10/-15%, 50/60Hz
20 - 36VDC
Consumption: 20VA (VAC), 15W (VDC)
Connectors: Phoenix quick coupling
connectors for low voltage
STELVIO 90° screw connectors for
digital outputs (250VAC, 6A max)
Microprocessor: AT91RM9200 32-bit 200Mhz
Permanent
FLASH
memory:
128MB, in 8-bit
RAM: 32MN o 64MB, in 16-bit
Internal clock: standard
Table 5-5 - iPro Power Requirements
Figure 5-2 - XEV20D Supply Voltage
Power Supply: 24VAC/DC
Consumption: 40VA max
Table 5-6 - XEV20D Power Supply
Power Supply: 24VAC +10/-15%, 50/60Hz
Consumption: 10VA (VAC), 10W (VDC)
Connectors:
Molex connectors with low voltage
wiring
SELECOM/CIVILUX connectors for
digital outputs (250VAC, 6A max) or with
a different order code:
Phoenix quick coupling connectors for
low voltage
STELVIO 90° screw connectors for
digital outputs (250VAC, 6A max)
Table 5-7 - IPX Power Requirements
