10 • iPro Case Controller I&O Manual FM V1.01 026-1738 Rev 1
Connector Description
Connector for 24VAC/DC power supply
Analog inputs (Pb1 - Pb5, PbC)
Voltage-free digital inputs (DI1 - DI3, DIC)
Additional power (+5VDC, +12VDC, GND)
Analog outputs (Out1..Out3, GND)
Analog inputs (Pb6 - Pb7, PbC)
Additional power (+5VDC, +12VDC, GND)
Digital relay outputs
Six (6) NO relays, two (2) common
CAN Bus Connector
Rx and Tx LED to indicate that communication is active
Closed circuit terminal (Term)
LAN serial port connector - NOT USED IN THIS APPLICATION OF IPRO CASE
CONTROLLER
Dip switch to set the address of the device.
Green LED to indicate the presence of power
Red status LED (ALARM)
Green LED to indicate the presence of power

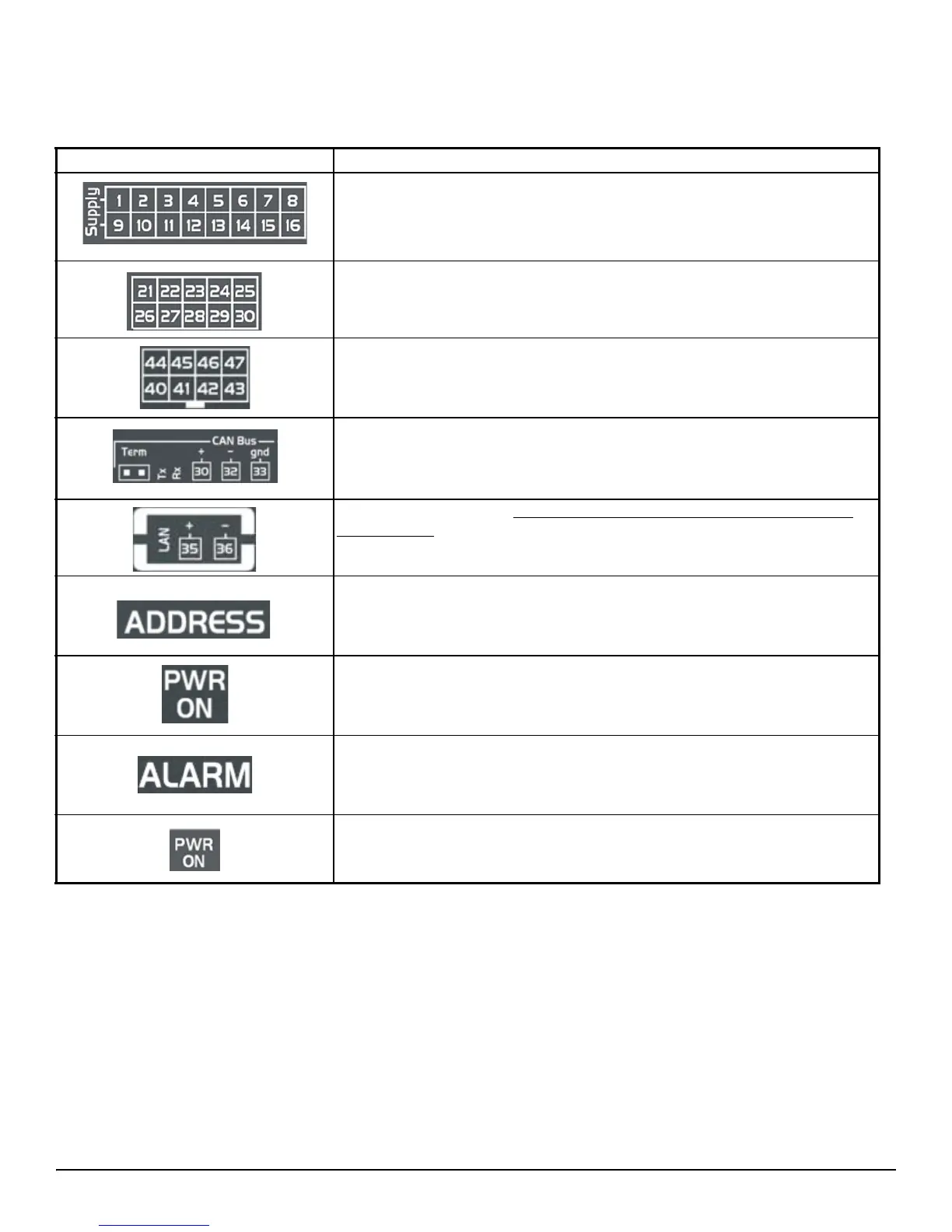

Table 4-3 - IPX Connectors and Descriptions
