42 • iPro Case Controller I&O Manual FM V1.01 026-1738 Rev 1
3. Press T5 to arrow over to the S1-S5 Addr screen:
4. Move the cursor to highlight the S1 Addr to set the address
of slave case controller 1. Press SET to edit and SET to save
the selection. Repeat this process until all present slaves are
addressed. Set an address of 0 for unused slave controllers.

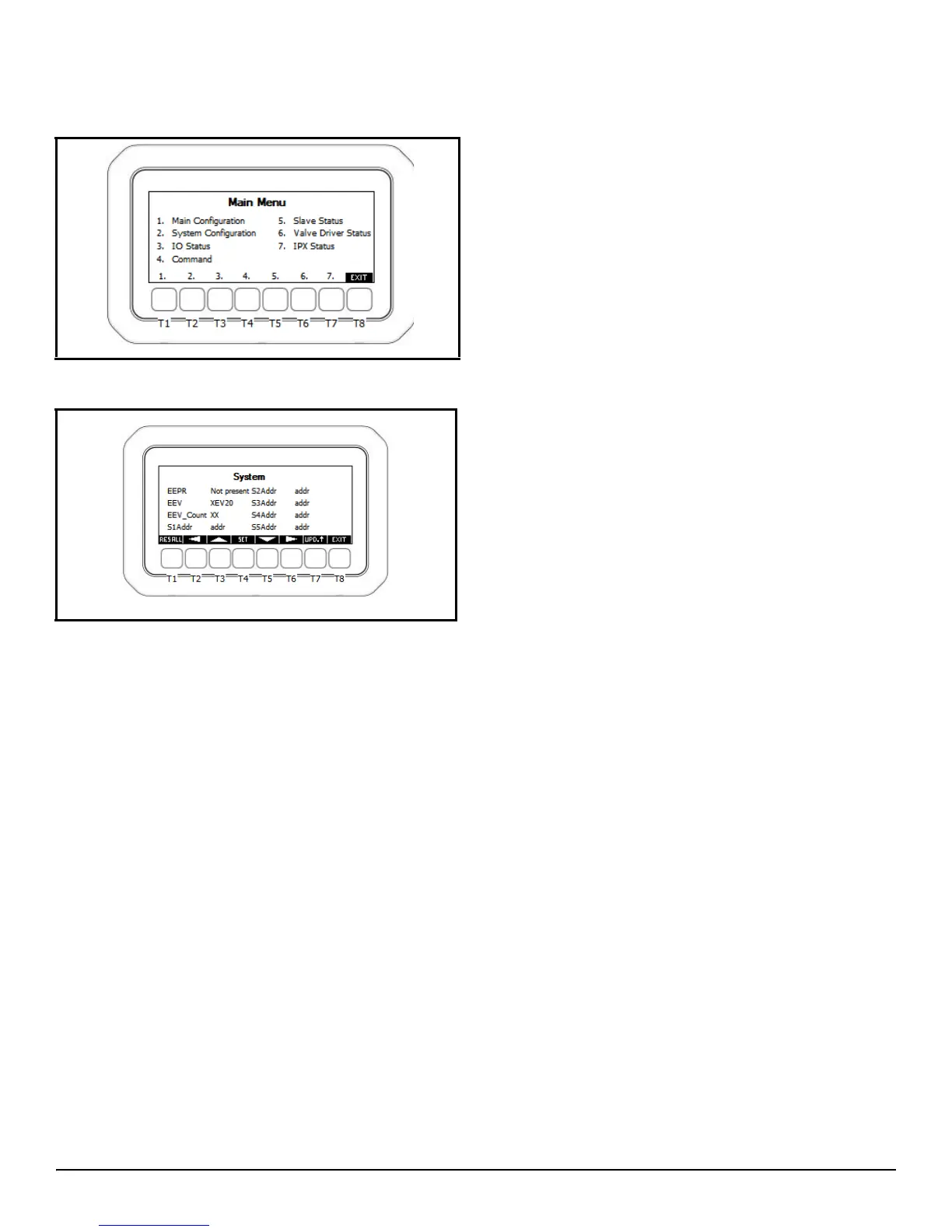

Figure 13-6 - Main Menu
Figure 13-7 - S1-S5 Address Screen
