Emerson Mentor MP Short Guide

Mentor MP Short Form Guide 15
Issue Number: 5 www.controltechniques.com
Safety Information
Product
information
Mechanical
installation
Electrical
installation
Getting started Running the motor
SMARTCARD
operation
Advanced
parameters
Diagnostics UL listing
Automation
(I/O
Expansion)
Yellow SM-I/O Plus
Extended I/O interface
Increases the I/O capability by adding the following
to the existing I/O in the drive:
Yellow SM-I/O 32
Extended I/O interface
Increase the I/O capability by adding the following
to the existing I/O in the drive:
• High speed digital I/O x 32
• +24V output
Dark
Yellow
SM-I/O Lite
Additional I/O
1 x Analog input (± 10V bi-polar or current modes)
1 x Analog output (0 to 10V or current modes)
3 x Digital input and 1 x Relay
Dark Red SM-I/O Timer
Additional I/O with real time clock
As per SM-I/O Lite but with the addition of a Real
Time Clock for scheduling drive running
Turquoise SM-I/O PELV
Isolated I/O to NAMUR NE37 specifications
For chemical industry applications
1 x Analog input (current modes)
2 x Analog outputs (current modes)
4 x Digital input / outputs, 1 x Digital input,
2 x Relay outputs
Olive SM-I/O 120V
Additional I/O conforming to IEC 61131-2
120Vac
6 digital inputs and 2 relay outputs rated for
120Vac operation
Cobalt
Blue
SM-I/O 24V
Protected
Additional I/O with overvoltage protection up to
48V
2 x Analog outputs (current modes)
4 x Digital input / outputs, 3 x Digital inputs,
2 x Relay outputs
Automation
(Applications)
Moss
Green
SM-
Applications
Plus
Applications Processor (with CTNet)
2
nd
processor for running pre-defined and /or
customer created application software with CTNet
support. Enhanced performance over SM-
Applications
White
SM-
Applications
Lite V2
Applications Processor
2
nd
processor for running pre-defined and /or
customer created application software. Enhanced
performance over SM-Applications Lite
Golden
brown
SM-Register
Applications Processor
2
nd
processor for running position capture
functionality with CTNet support.

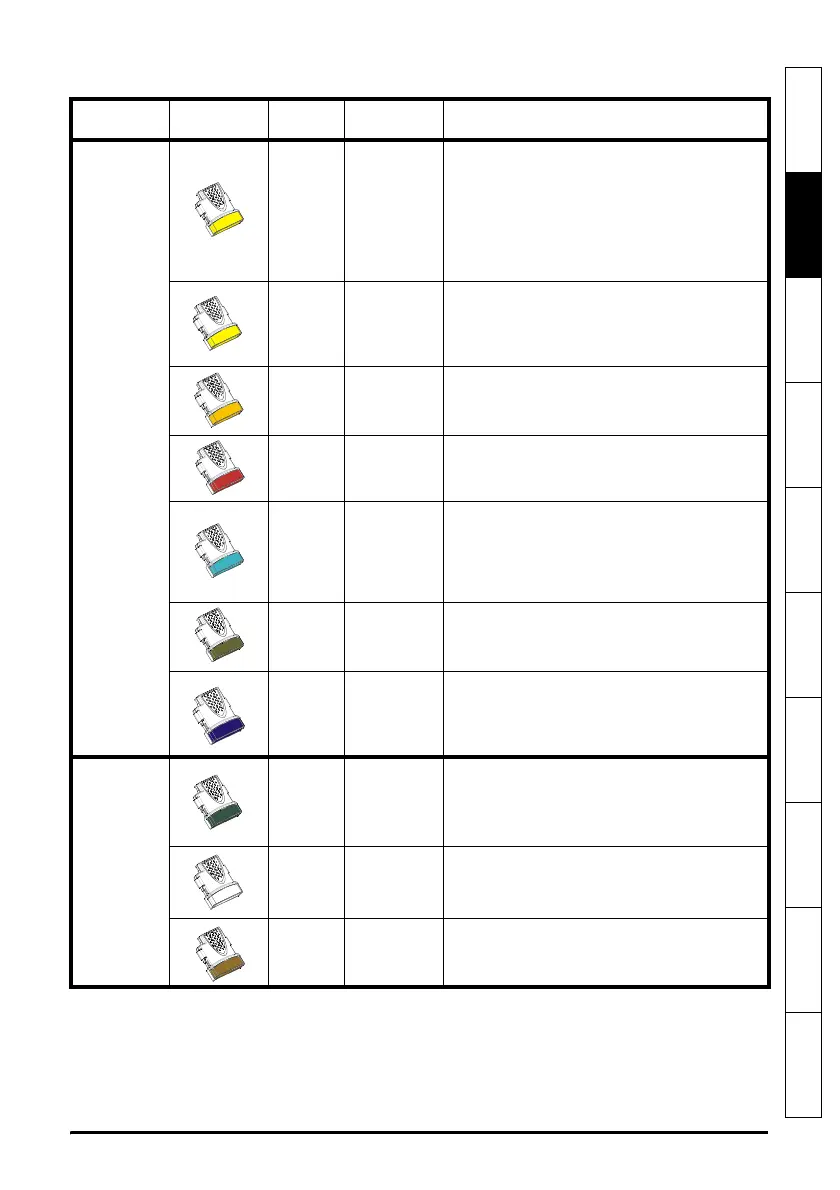

Table 2-5 Solutions Module identification
Type
Solutions
Module
Color Name Further Details
• Digital inputs x 3 • Analog output
(voltage) x 1
• Digital I/O x 3 • Relay x 2
• Analog inputs
(voltage) x 2
