Emerson Mentor MP Short Guide

16 Mentor MP Short Form Guide
www.controltechniques.com Issue Number: 5
Table 2-6 Keypad identification
Table 2-7 Serial comms lead
Table 2-8 External field control
Fieldbus
Purple
SM-
PROFIBUS
DP-V1
Profibus option
PROFIBUS DP adapter for communications with
the drive
Medium
Grey
SM-
DeviceNet
DeviceNet option
Devicenet adapter for communications with the
drive
Dark Grey
SM-
INTERBUS
Interbus option
Interbus adapter for communications with the drive
Light
Grey
SM-CANopen
CANopen option
CANopen adapter for communications with the
drive
Beige SM-Ethernet
Ethernet option
10 base-T / 100 base-T; Supports web pages,
SMTP mail and multiple protocols: DHCP IP
addressing; Standard RJ45 connection
Brown
Red
SM-EtherCAT
EtherCAT option
EtherCAT adapter for communications with the
drive

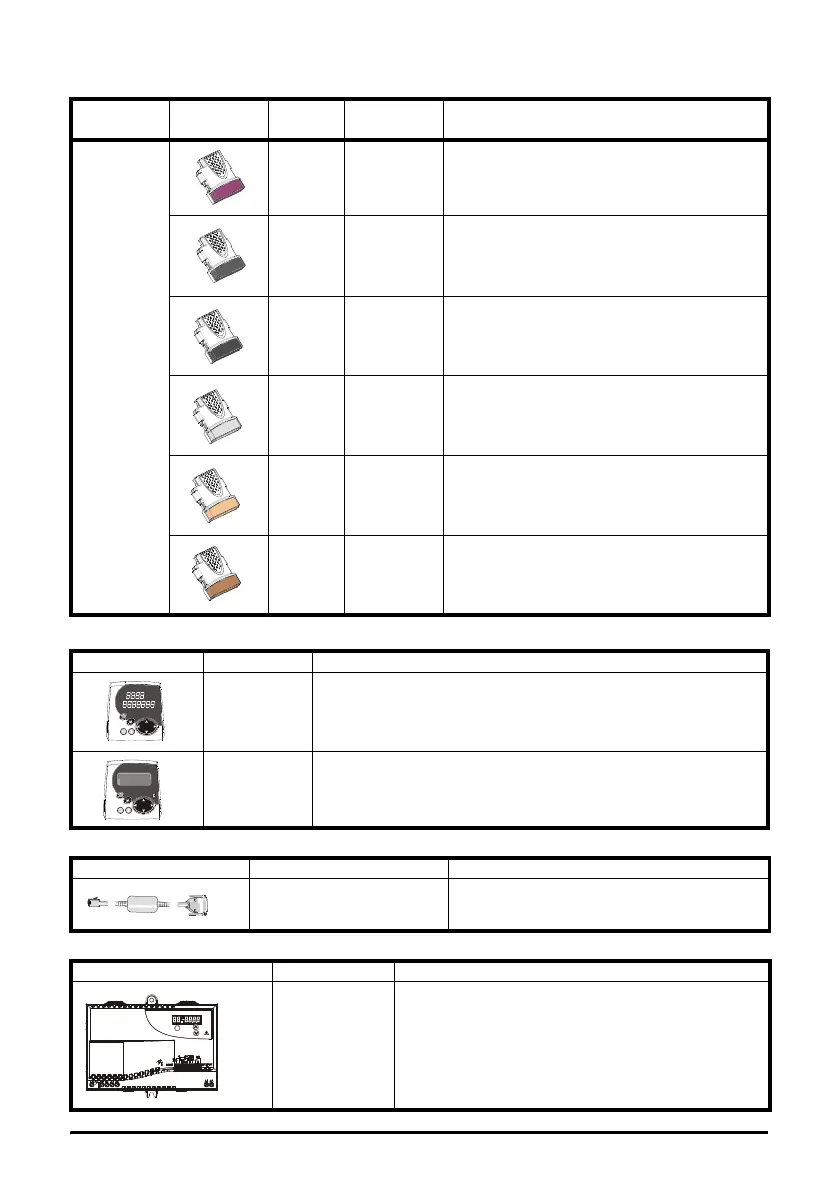

Table 2-5 Solutions Module identification
Type
Solutions
Module
Color Name Further Details
Keypad Name Further Details
SM-Keypad
LED keypad option
Keypad with a LED display
MP-Keypad
LCD keypad option
Keypad with an alpha-numeric LCD display with Help function
Serial comms lead Name Further Details
CT Comms cable
CT EIA (RS) -232 (4500-0087)
CT USB (4500-0096)
External field controller Name Further Details
FXMP25
For external control of field windings up to 25A, with field
reversal capability. For further information, please see the
FXMP25 User Guide.
FXMP25
M
STORED CHARGE
10 min
Mode /Reset
