Emerson Mentor MP Short Guide

22 Mentor MP Short Form Guide
www.controltechniques.com Issue Number: 5

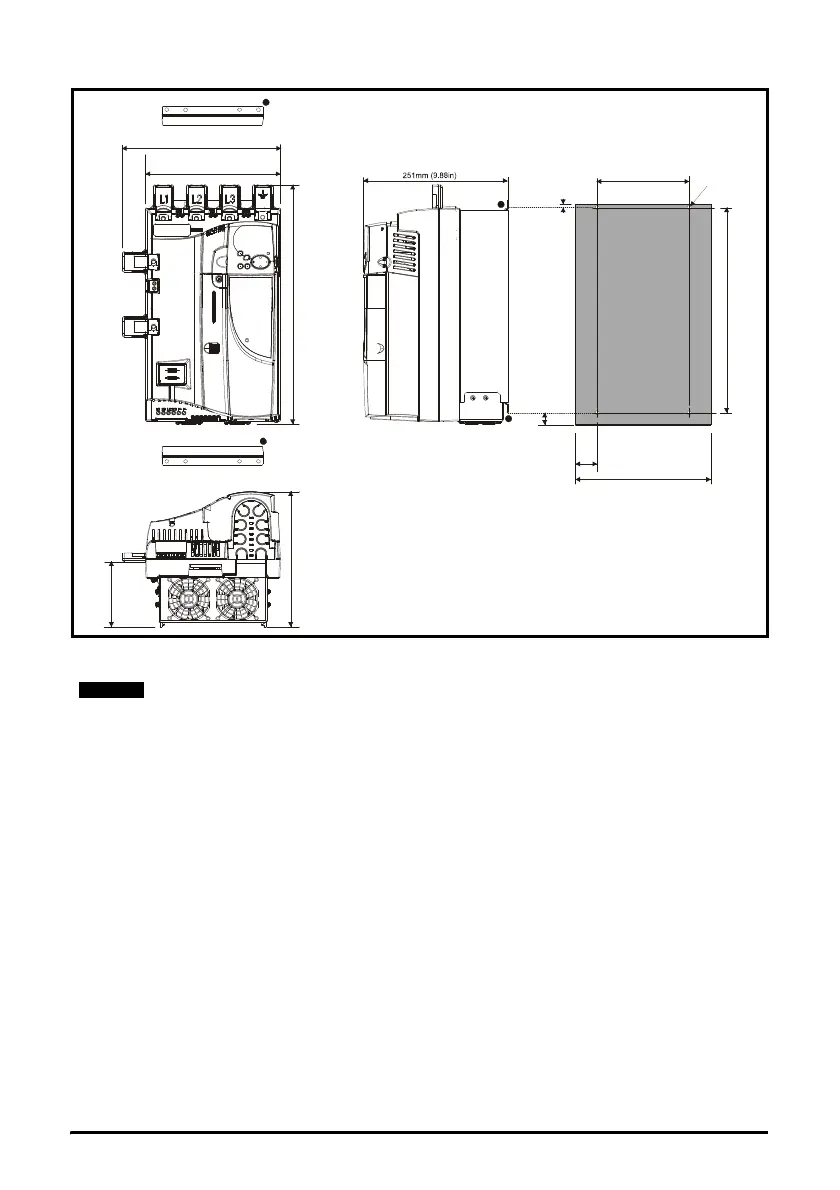

Figure 3-6 Overall size 1B dimensions
1. The two outer holes must be used for mounting the Mentor MP.
293mm (11.54in)
250mm (9.84in)
444mm
(17.48in)
251mm
(9.88in)
124mm
(4.88in)
170mm (6.69in)
6.5mm (0.26in)
250mm (9.84in)
40mm
(1.58in)
22mm
(0.87in)
380mm
(14.96in)
4 holes to
suit M6
1
1
1
1
1
MA1
MA2
With the SMARTCARD installed to the drive, the depth measurement increases by 7.6
mm (0.30 in).
NOTE

Emerson Mentor MP Specifications

General

Brand	Emerson
Model	Mentor MP
Category	DC Drives
Language	English
