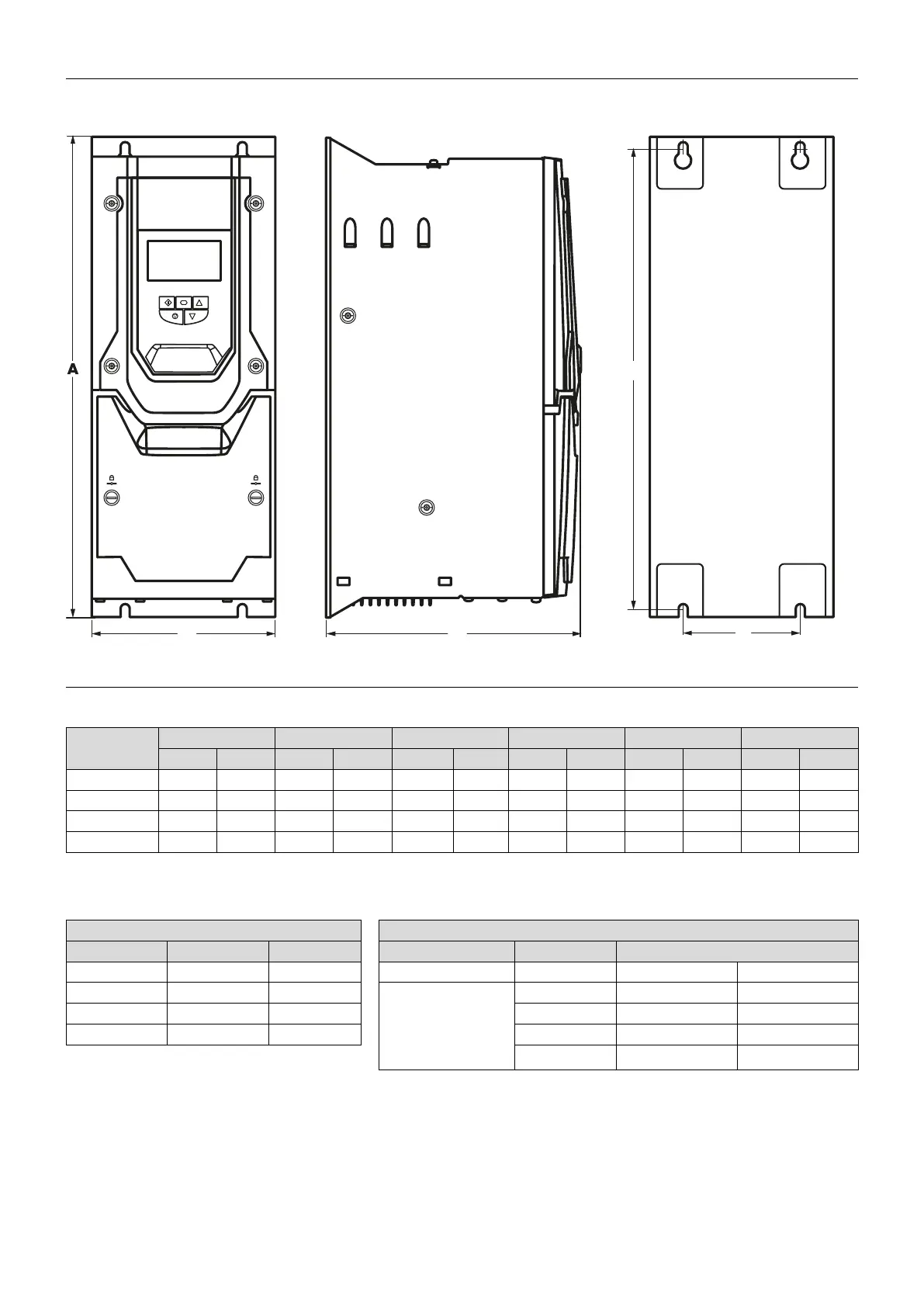

16 PACMotion VFD AC Variable Speed Drive User Guide GFK-3111A
Figure 8: IP55 Weights and Dimensions
C
B
E
D
Table 10: IP55 Weights and Dimensions
Drive Size A B C D E Weight
mm in mm in mm in mm in mm in kg Ib
4 450 17.72 171 6.73 252 9.92 428 16.85 110 4.33 11.5 25.4
5 540 21.26 235 9.25 270 10.63 515 20.28 175 6.89 23 50.7
6 865 34.06 330 12.99 330 12.99 830 32.68 200 7.87 55 121.2
7 1280 50.39 330 12.99 360 14.17 1245 49.02 200 7.87 89 196.2
Table 11: IP55 Mounting Bolts and Tightening Torques
Mounting Bolts Tightening Torques
Frame Size Metric UNF Frame Size Required Torque
4 M8 5/16 Control Terminals All 0.5 Nm 4.5 lb-in
5 M8 5/16
Power Terminals
4 2 Nm 18 lb-in
6 M10 3/8 5 4 Nm 35.5 lb-in
7 M10 3/8 6 15 Nm 11 lb-ft
7 15 Nm 11 lb-ft
