GFK-3111A PACMotion VFD AC Variable Speed Drive User Guide 15
Mechanical Dimensions and Weight

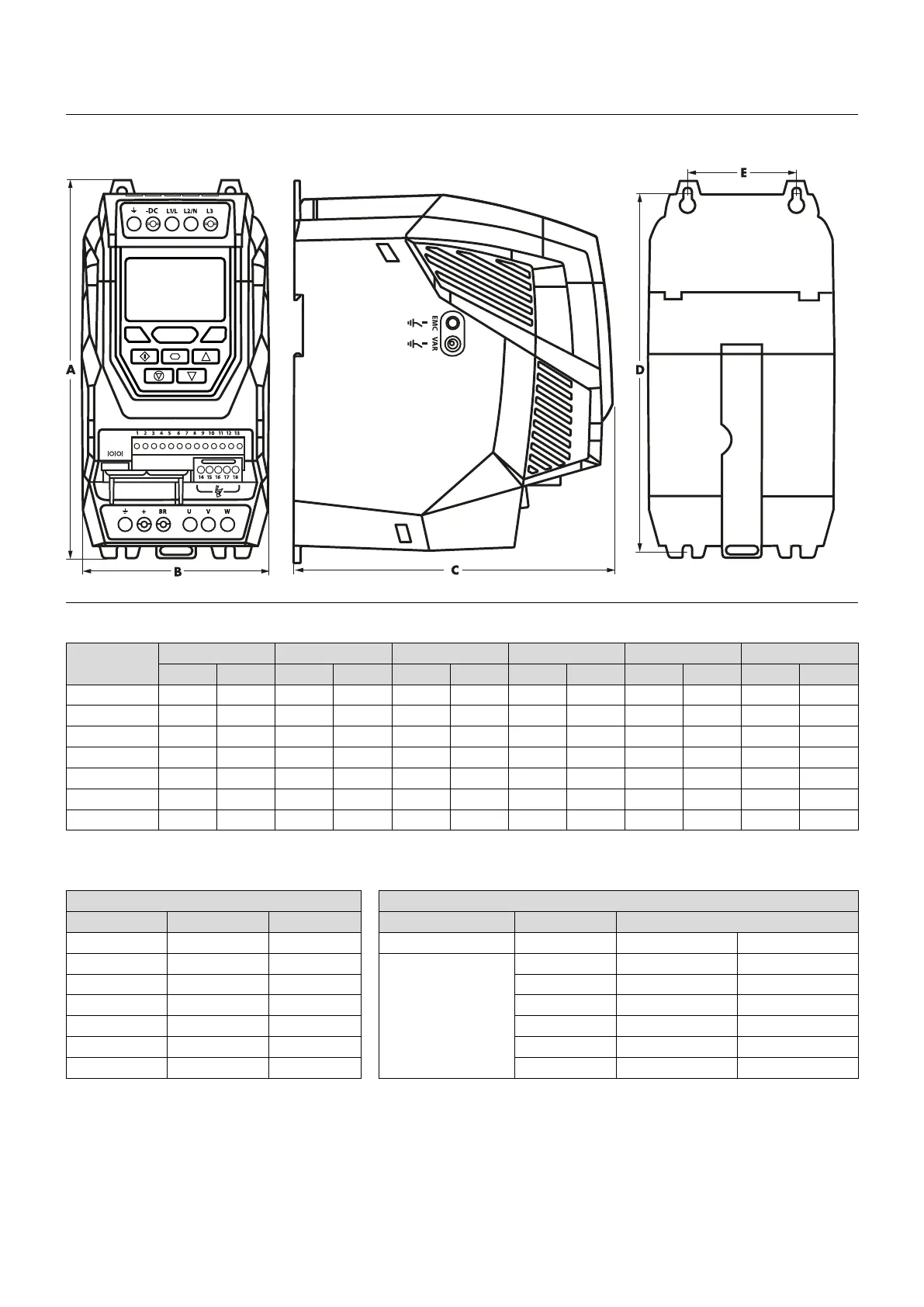

Figure 7: IP20 Weights and Dimensions
Table 8: IP20 Weights and Dimensions
Drive Size A B C D E Weight
mm in mm in mm in mm in mm in Kg Ib
2 221 8.70 110 4.33 185 7.28 209 8.23 63 2.48 1.8 4.0
3 261 10.28 131 5.16 205 8.07 247 9.72 80 3.15 3.5 7.7
4 418 16.46 172 6.77 240 9.45 400 15.75 125 4.92 9.2 20.3
5 486 19.13 233 9.17 260 10.24 460 18.11 175 6.89 18.1 39.9
6A 614 24.17 286 11.25 320 12.59 578 22.75 200 7.87 32 70.5
6B 726 28.58 330 13 320 12.59 680 26.77 225 8.85 43 94.8
8 995 39.17 480 18.89 477 18.77 942 37.08 432 17 130 286.6
Table 9: IP20 Mounting Bolts and Tightening Torques
Mounting Bolts Tightening Torques
Frame Size Metric UNF Frame Size Required Torque
2 M4 #8 Control Terminals All 0.5 Nm 4.5 lb-in
3 M4 #8
Power Terminals
2 & 3 1 Nm 9 lb-in
4 M8 5/16 4 2 Nm 18 lb-in
5 M8 5/16 5 4 Nm 35.5 lb-in
6A M8 5/16 6A 12 Nm 9 lb-ft
6B M10 3/8 6B 15 Nm 11 lb-ft
8 M12 7/16 8 57 Nm 42 lb-ft
NOTE
*The IP20 Frame Size 4 Chassis can obstruct the rotation (tightening) of a bolt or screw with a hex head, a xing with a
round head will be most suitable for the mounting of this unit.
