2-9
MODEL 1195 INTEGRAL
ORIFICE
This section provides hardware installation instructions for the Model
1195 Integral Orifice Assembly.
If remote mounting of the electronics is required, use this section for
hardware installation. Then, see Section 5: Electronics Functions for
electronics installation.
• The direct mount maximum service temperature is 450°F
(232°C).
• The electronics must be remote mounted when service
temperatures exceed 450°F (232°C).
Model 1195 Configurations The Model 1195 series comes pre-assembled and requires only
installation into a service pipe. General installation instructions
are as follows.
1. Remove appropriate length of process pipe for meter section.
2. Insure process connections match the meter section to be installed.
3. Connect the meter assembly to the process connection and orient
the transmitter as shown in the installation diagram.
4. Tighten the process connections.
Liquid Service in a Horizontal Pipe
Install the Model 1195 with the transmitter below to prevent air from
becoming entrapped within the meter assembly. Figure 2-5 illustrates
the recommended location for the Model 1195 when used with liquid
service.

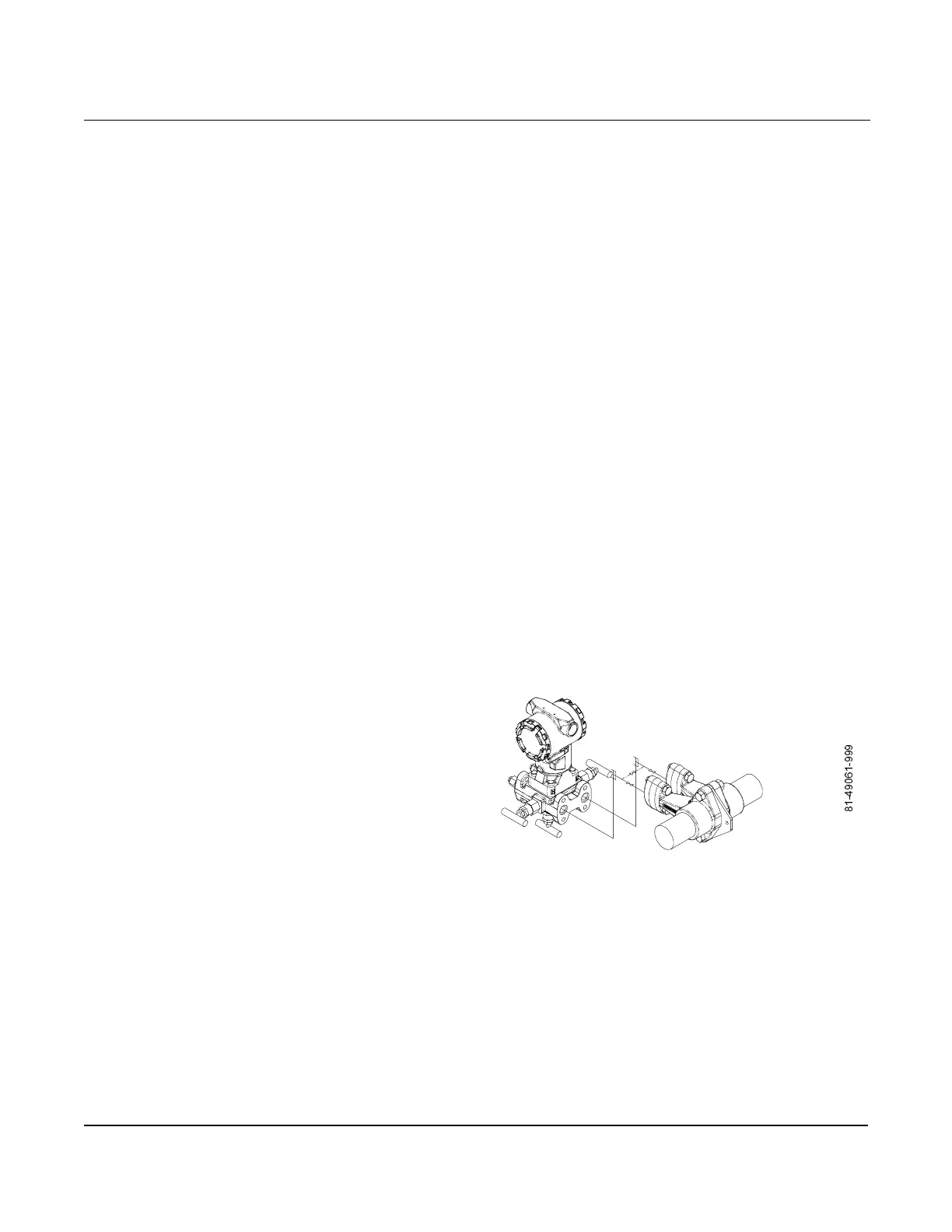

Figure 2-5.
Liquid Service in a Horizontal Pipe.
Gas Service in a Horizontal Pipe
Install the Model 1195 with the transmitter above as shown in Figure
2-6. This orientation will prevent condensate from becoming entrapped
in the meter assembly.
