CG Drives & Automation 01-7491-01r0 Mounting 13
2. Mounting
This chapter describes how to mount the AC drive.
Before mounting it is recommended that the installation is
planned out first.
• Be sure that the AC drive suits the mounting location.
• The mounting site must support the weight of the AC
drive.
• Will the AC drive continuously withstand vibrations
and/or shocks?
• Consider using a vibration damper.
• Check ambient conditions, ratings, required cooling air
flow, compatibility of the motor, etc.
• Know how the AC drive will be lifted and transported.

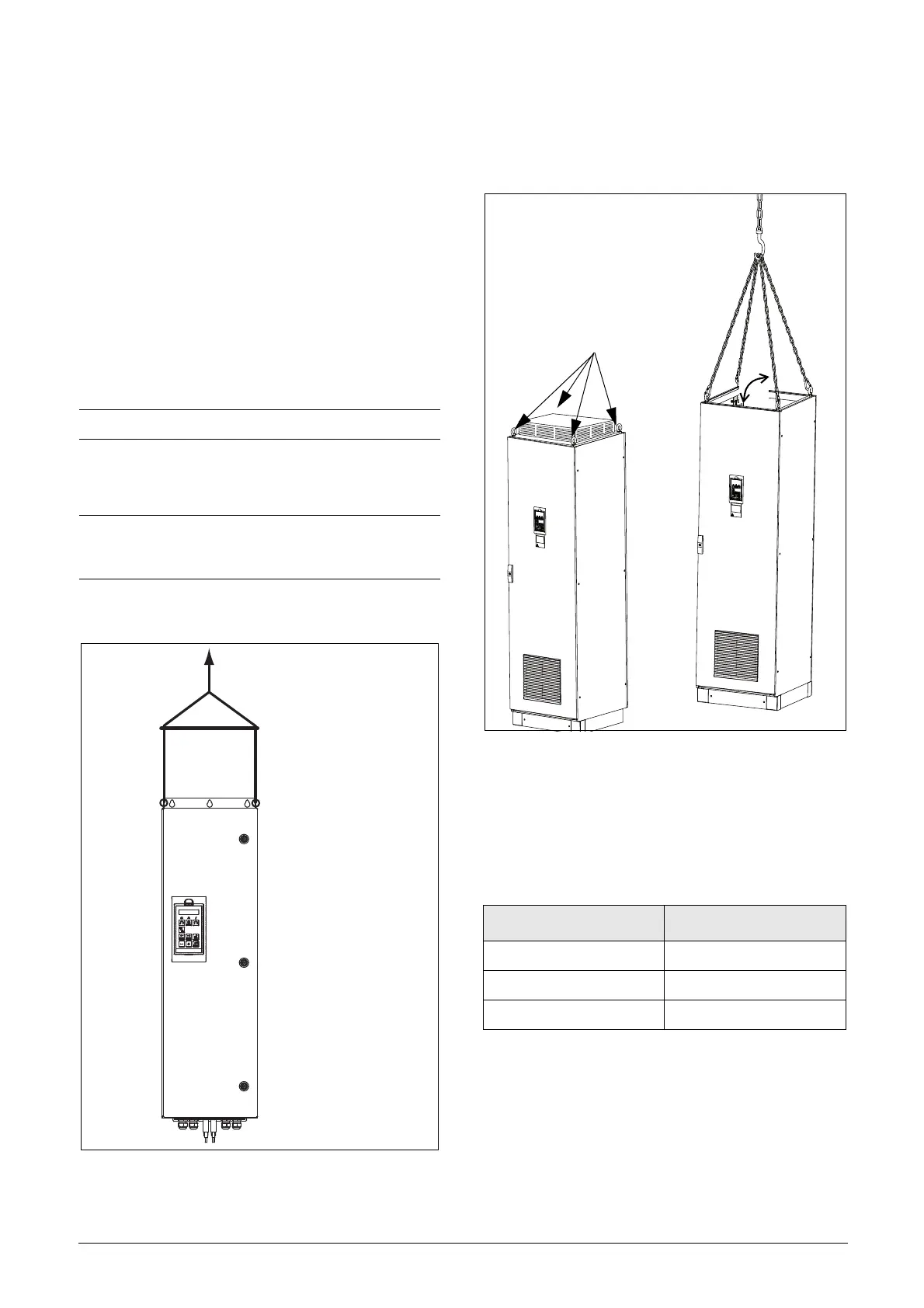

2.1 Lifting instructions
Recommended for AC drive models
-090 to -365
Fig. 2 Lifting AC drive model -090 to -365.
Recommended for AC drive models
-300 to - 3K0
Fig. 3 Remove the roof unit and use the lifting eyes to lift
single unit 600 mm (23.6 in) and 900 mm (35.4 in).
Single cabinet drives can be lifted/transported safely using
the eye bolts supplied and lifting cables/chains as in
illustration fig. 3 above.
Depending on the cable/chain angle A (in fig. 3),
following loads are permitted:
Regarding lifting instructions for other cabinet sizes, please
contact CG Drives & Automation.
Note: IP20 units are intended for cabinet mounting.
Note: To prevent personal risks and any damage to
the unit during lifting, it is advised that the lifting
methods described below are used.
Load: 56 to 95 kg
(123 - 202 lbs)
Cable/chain angle A Permitted load
45 ° 4 800 N (1080 lbf)
60 ° 6 400 N (1439 lbf)
90 ° 13 600N (3057 lbf)
