Emotron FDU Series User Manual

14 Mounting CG Drives & Automation 01-7491-01r0
2.2 Stand-alone units
The AC drive must be mounted in a vertical position against
a flat surface. Use the template (in the File archive on our
homepage) to mark out the position of the fixing holes.

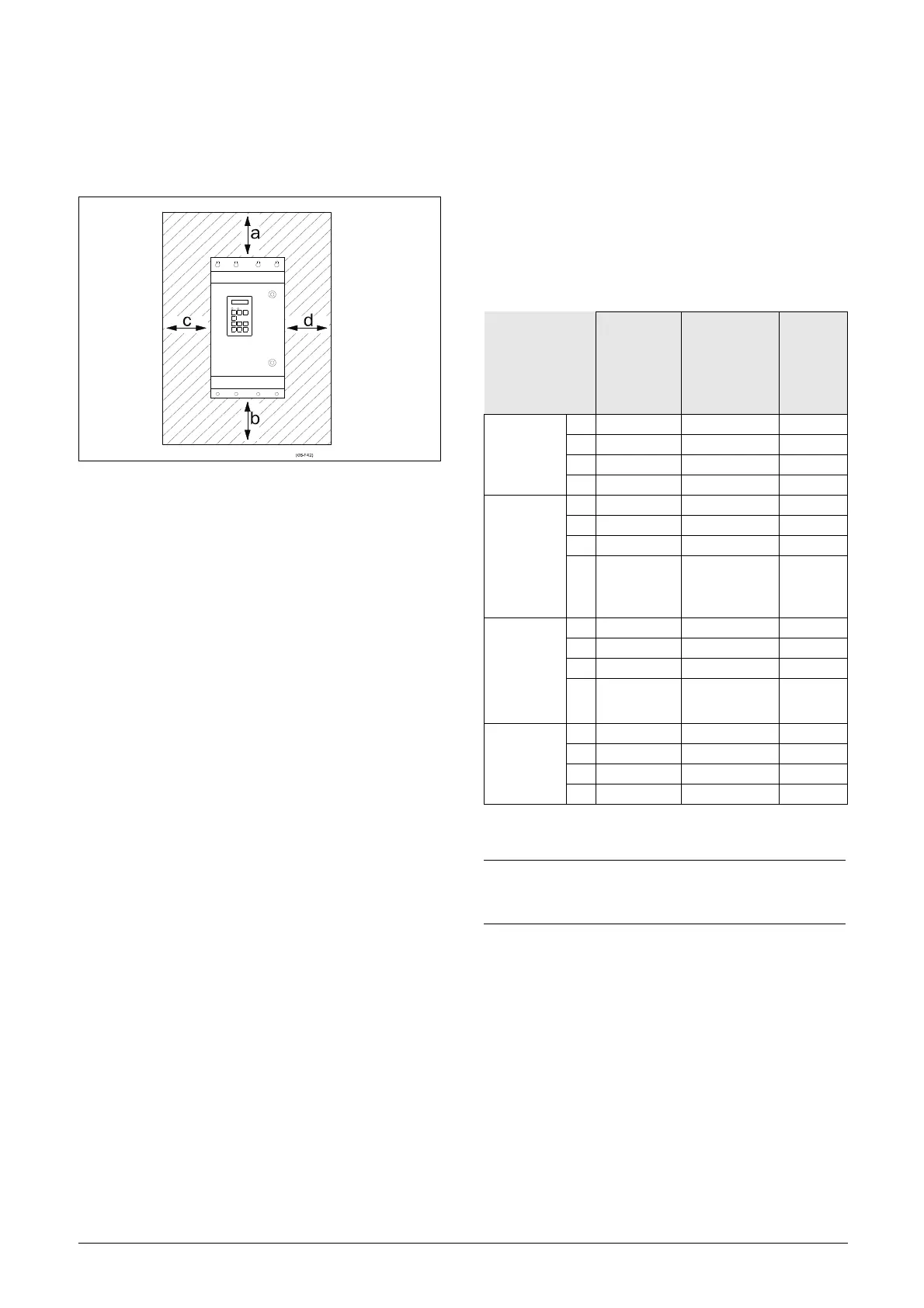

Fig. 4 AC drive mounting model 002 to 3K0
2.2.1 Cooling
Fig. 4 shows the minimum free space required around the
AC drive for the models 002 to 3K0 in order to guarantee
adequate cooling. Because the fans blow the air from the
bottom to the top it is advisable not to position an air inlet
immediately above an air outlet.
The following minimum separation between two AC drives,
or a AC drive and a non-dissipating wall must be
maintained. Valid if free space on opposite side.
Table 5 Mounting and cooling
Frame size
B - FA,
C2-FA2,
C69-F69,
C2(69)-D2(69)
[mm(in)]
Frame size
C2, D2, E2, F2
with IP21
top cover
option
[mm(in)]
300-3K0
cabinet
[mm(in)]
2xFDU
side-by-side
mm (in)
a 200 (7.9) 200 (7.9) 100 (3.9)
b 200 (7.9) 200 (7.9) 0
c 0 50 (1.97) 0
d 0 50 (1.97) 0
3 or more
FDU units
B/C/D/C2/
D2 side-by-
side
mm (in)
a 200 (7.9) 200 (7.9) 100 (3.9)
b 200 (7.9) 200 (7.9) 0
c 50 (1.97) 50 (1.97) 0
d 50 (1.97) 50 (1.97) 0
3 or more
FDU units
E/F/E2/
F2side-by-
side
mm (in)
a 200 (7.9) 200 (7.9) 100 (3.9)
b 200 (7.9) 200 (7.9) 0
c 100 (3.9 50 (1.97) 0
d 100 (3.9) 50 (1.97) 0
FDU-wall,
wall-one
side
mm (in)
a 100 (3.9) 100 (3.9) 100 (3.9)
b 100 (3.9) 100 (3.9) 0
c 0 50 (1.97) 0
d 0 50 (1.97) 0
NOTE: When a 300 to 3K0 model is placed between
two walls, a minimum distance at each side of 200
mm (7.9 in) must be maintained.
