32 Installation CG Drives & Automation 01-7491-01r0
3.3 Connection of motor and
mains cables for larger
frame sizes
IP54 - FDU 48-090 to 295 (Frame sizes E - F) and
FDU48-365-54 (Frame size FA) and
FDU 69-082 to 200 (Frame size F69)
IP20 - FDU 48-300 and up (Frame sizes G and up) and
FDU 69-250 and up (Frame sizes H69 and up).
Emotron FDU48-090 to 48-295
Emotron FDU69-082 to 69-200
To simplify the connection of thick motor and mains cables
to the AC drive, the cable interface plate can be removed.

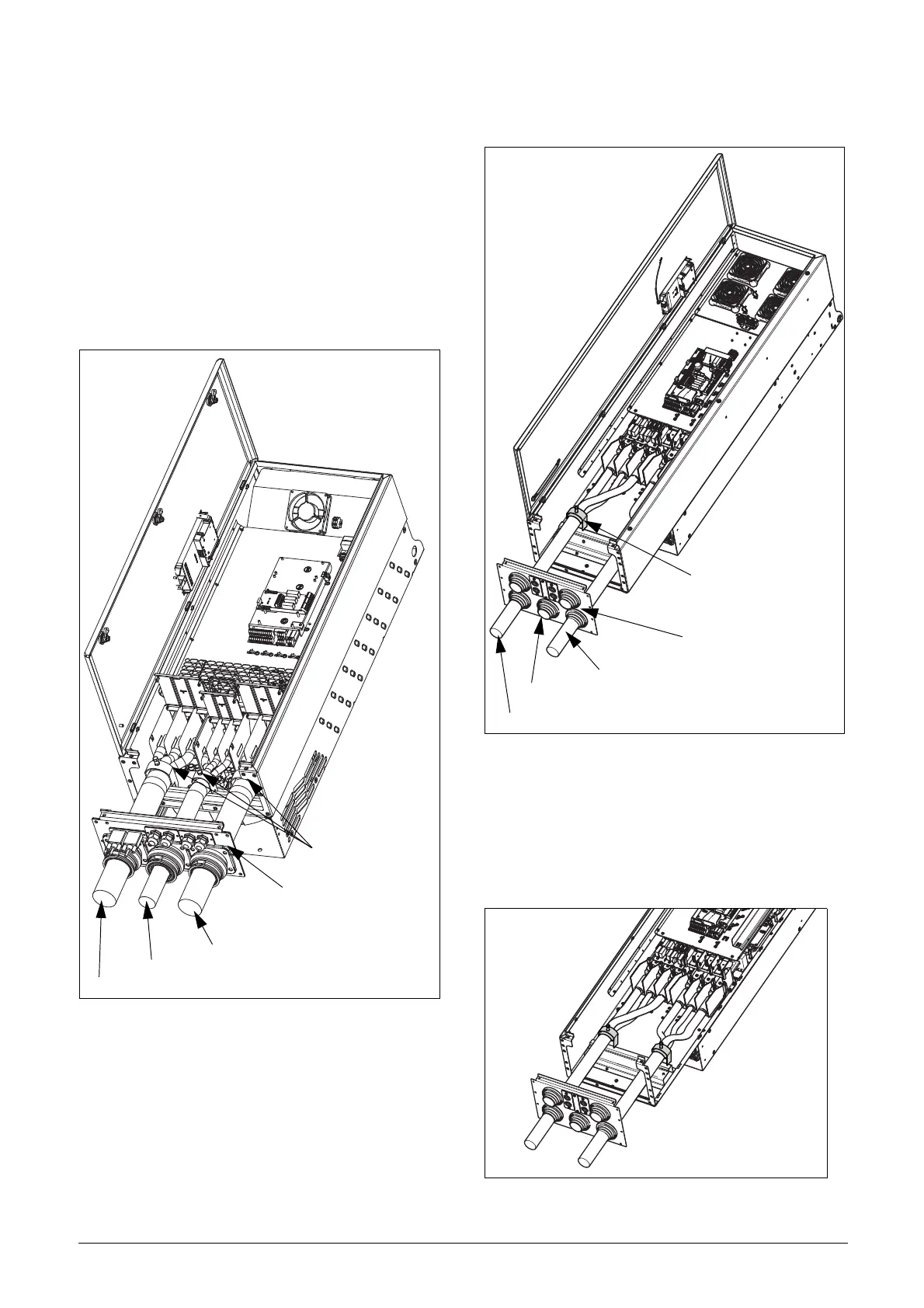

Fig. 44 Connecting motor and mains cables.
1. Remove the cable interface plate from the AC drive
housing.
2. Put the cables through the glands.
3. Strip the cable according to table 15.
4. Connect the stripped cables to the respective mains/
motor terminal.
5. Fix the clamps on appropriate place and tighten the
cable in the clamp with good electrical contact to
the cable screen.
6. Put the cable interface plate in place and secure
with the fixing screws.
Emotron FDU48-365-54
To simplify the connection of thick motor and mains cables
to the AC drive, the cable interface plate can be removed.
Fig. 45 Connection of lower mains and motor cables.
Start with the lower mains and motor cables (marked
Mains 1 and Motor 1 in fig. 46).
1. Remove the cable interface plate from the AC Drive
housing.
2. Remove the upper mounting rail by loosen the four
fastening screws.
Fig. 46 Removed upper mounting rail.
Cable interface
Clamps for screening
Mains cable
DC+, DC-, R (optional)
Motor cable
Mains 1
Motor 1
Cable interface
Clamp for screening
Mains cable
DC+, DC-, R (optional)
Motor cable
