7.3 Performing an
Identification Run
To get the optimum performance out of your AC drive/
motor combination, the AC drive must measure the
electrical parameters (resistance of stator winding, etc.) of
the connected motor. See menu [229] “Motor ID-Run”.
7.4 Using the Control Panel
Memory
Data can be copied from the AC drive to the memory in the
control panel and vice versa. To copy all data (including
parameter set A-D and motor data) from the AC drive to the
control panel, select Copy to CP [234], Copy to CP.
To copy data from the control panel to the AC drive, enter
the menu [245], Load from CP and select what you want to
copy.
The memory in the control panel is useful in applications
with AC drives without a control panel and in applications
where several AC drives have the same setup. It can also be
used for temporary storage of settings. Use a control panel to
upload the settings from one AC drive and then move the
control panel to another AC drive and download the
settings.

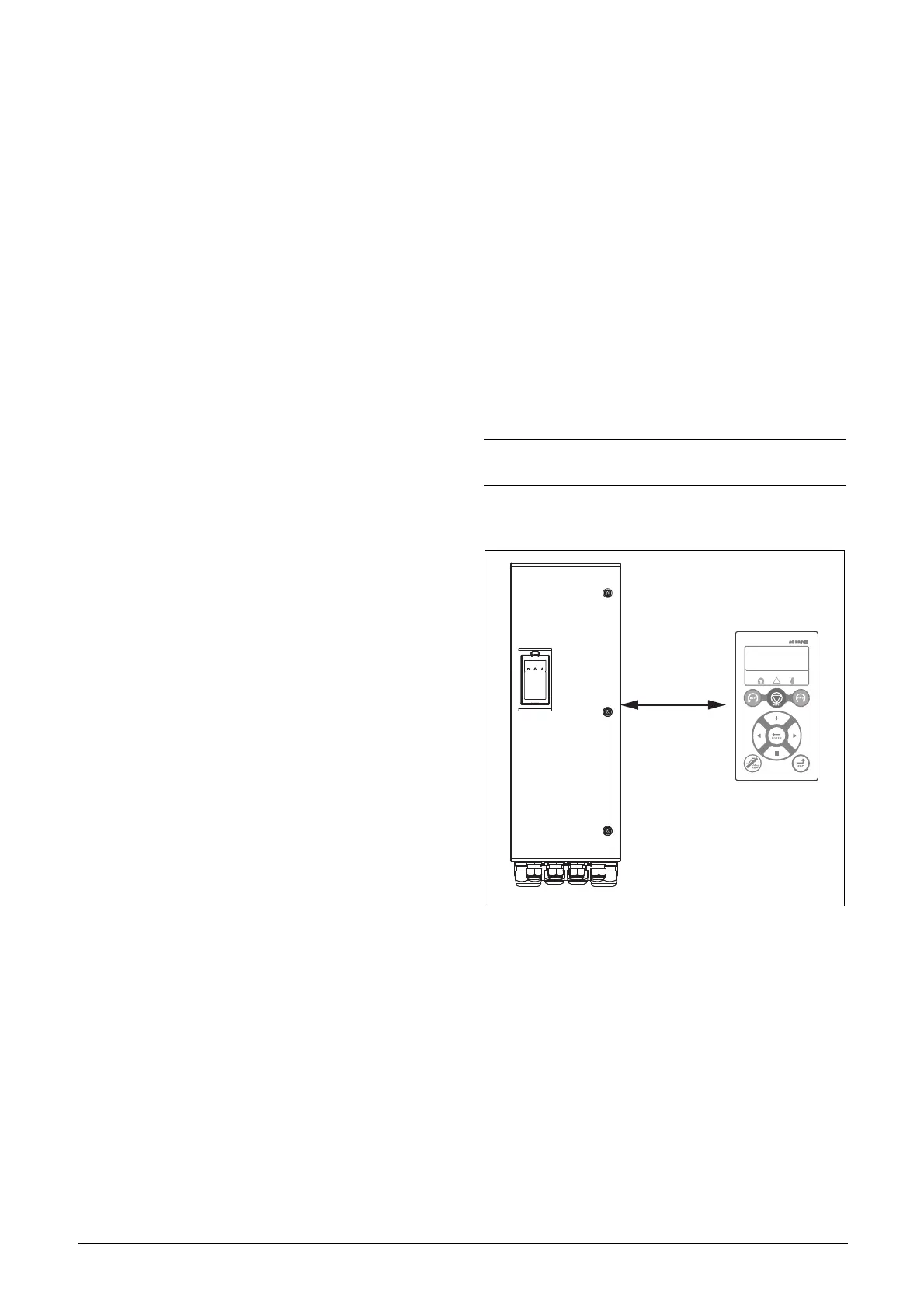

Fig. 75 Copy and load parameters between AC drive and
control panel.
NOTE: Load from and copy to the AC drive is only
possible when the AC drive is in stop mode.
